Controller for induction generators
MHS Controller for Induction heating
The Kendrion induction generators are designed as a modular system. They consist of a controller and up to seven stackable induction generators. The controller can be integrated into the control of a machine via a fieldbus interface (e.g. Profinet®, EtherCAT® or CANopen®). The control of the individual induction generators and the retrieval of status messages is carried out for all connected generators via the central controller. Depending on the configuration, the controller can also control the heating channels with integrated PID controllers. The devices are intended for installation in switch cabinets and can only be used in conjunction with MHS Induction generators.
- Various fieldbus interfaces
- System monitoring, temperature control
- A wide range of diagnostic options
Products
(3)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Functions
ascending
descending
|
Field bus interfaces
ascending
descending
|
Product status
ascending
descending
|
Interfaces
ascending
descending
|
Modul bus
ascending
descending
|
Status indication
ascending
descending
|
Integrated I/Os
ascending
descending
|
Housing material
ascending
descending
|
IP-Protection Class
ascending
descending
|
Mounting
ascending
descending
|
Dimensions (W x H x D)
ascending
descending
|
Supply voltage
ascending
descending
|
Operating temperature
ascending
descending
|
Certifications
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHS Controller PROFINET
|
610 610 02 | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD | PROFINET IO-Device | System product | 1 x Ethernet 10/100Mbit (on request) | Data communication via CAN, electronic supply 24 VDC | Heating system, PROFINET, CANopen, DC power supply | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection | module made of steel with stainless steel cover for use in a closed, metallic control cabinet | IP 20 | Prepared for left-side mounting on the power module | 451 mm x 44 mm x 286 mm | 24 VDC / -10% +10% (21, 6 V – 26, 4) | In vertical installation position: 0°C ... 35°C | CE, UL, PROFINET | to the product |
|

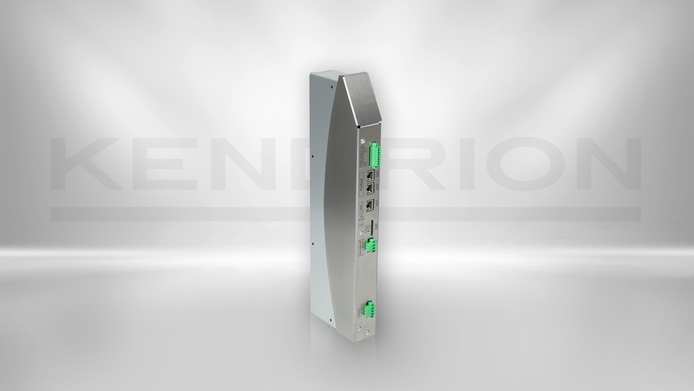

MHS Controller EtherCAT
|
610 610 20 | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD | EtherCAT | System product | 1 x Ethernet 10/100Mbit (on request) | Data communication via CAN, electronic supply 24 VDC | Heating system, EtherCAT, CANopen, DC power supply | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection | module made of steel with stainless steel cover for use in a closed, metallic control cabinet | IP 20 | Prepared for left-side mounting on the power module | 451 mm x 44 mm x 286 mm | 24 VDC / -10% +10% (21, 6 V – 26, 4) | In vertical installation position: 0°C ... 35°C | CE, UL | to the product |
|
MHS Controller CANopen
|
610 610 10 | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD | CANopen | System product | 1 x Ethernet 10/100Mbit (on request) | Data communication via CAN, electronic supply 24 VDC | Heating system, Fieldbus, CANopen, DC power supply | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection | module made of steel with stainless steel cover for use in a closed, metallic control cabinet | IP 20 | Prepared for left-side mounting on the power module | 451 mm x 44 mm x 286 mm | 24 VDC / -10% +10% (21, 6 V – 26, 4) | In vertical installation position: 0°C ... 35°C | CE, UL | to the product |
