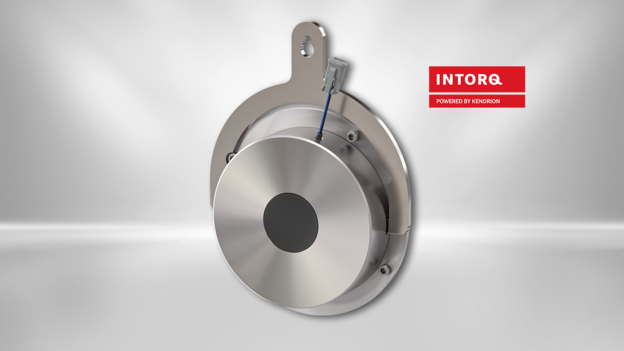

Spring Applied Brake - INTORQ BFK552
33009534
Wherever there is only a very limited installation space available, and a powerful brake is needed, the INTORQ BFK552 spring-applied brake fulfills all requirements. Developed from the demands of the industrial truck industry, the advantages of the INTORQ BFK552 will certainly also make you curious in intralogistics and in all general motor applications!
- Flat, compact design = less installation space, lower weight
- Stable braking torque over the entire service life = guaranteed safety
- Water and dust protection according to IP66 (without hand release) = withstands rough conditions
- Extended maintenance interval due to lower wear = reduced maintenance costs
- Delivered as a ready-to-install unit => prevents assembly errors
- Global availability = reduced transport routes and transport times
Technical details
| Description | Value |
|---|---|
| Brake size | 12 |
| Torque | 60 Nm |
| Torque definition | M2/MK (dynamic) |
| Operation mode | Holding Brake |
| Nominal voltage | 24,36,48 V |
| Nominal power | 45 W |
| Max. switching energy per ES | 24000 J |
| Number of emergency stops | 500 |
| Temperature range | -20...50°C, -30...50°C |
| Max. rotation speed | 3600 min-1 |
| E-Stop rotation speed | 3600 min-1 |
| Backlash | - |
| Thermal class | F |
| IP Protection class | IP66 |
| Weight | 4,7 kg |
| Brake type | - |
| Armature type | - |
| Hub type | - |
| Hand release | Optional |
| Counter friction part | Flange |
| PWM control | possible |
| Outer diameter | 185 mm |
| Lenght | 43,7 mm |
| Hub diameter | 20 mm |
| Keyway | 20,25, DIN 6885 |
| Pitch circle flange side | 168,3 mm |
| Product Line | BFK552 |
