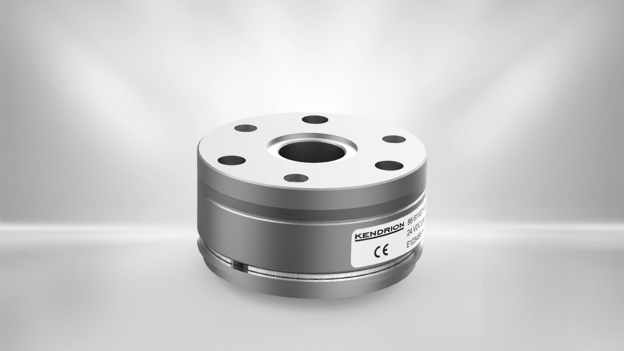

Permanent Magnet Brake - PM Line
86 61103H00-0011
The PM Line is a permanent magnet brake for direct current in which the braking effect is generated by a permanent magnetic field (system opened by electro-magnetic force). The brake thus acts in currentless state when switched off. To neutralize the braking effect, the permanent magnetic field is displaced by an opposing electromagnetic field. These brakes are particularly suitable for applications in the field of servomotors as holding brakes with emergency stop function.
Features
- Safe, residual torque-free opening in any mounting position
- Backlash-free transmission of the braking torque
Technical details
| Description | Value |
|---|---|
| Brake size | 03 |
| Torque | 0.4 Nm |
| Torque definition | M4 (static) |
| Operation mode | Holding Brake |
| Nominal voltage | 24 V |
| Nominal power | 6.2 W |
| Max. switching energy per ES | 10 J |
| Number of emergency stops | 500 |
| Total work | 5 kJ |
| Temperature range | -5°C...120°C |
| Max. rotation speed | 16000 min-1 |
| E-Stop rotation speed | 3000 min-1 |
| Backlash | 0° |
| Thermal class | F |
| IP Protection class | IP00 |
| Weight | 0.07 kg |
| Brake type | 611 |
| Armature type | 300 |
| Hub type | - |
| Hand release | - |
| Counter friction part | - |
| PWM control | possible |
| Outer diameter | 28 mm |
| Inner diameter | 9 mm |
| Lenght | 26.7 mm |
| Hub diameter | 8 mm |
| Keyway | - |
| Pitch circle front side | 22 mm |
| Product Line | PM Line |
