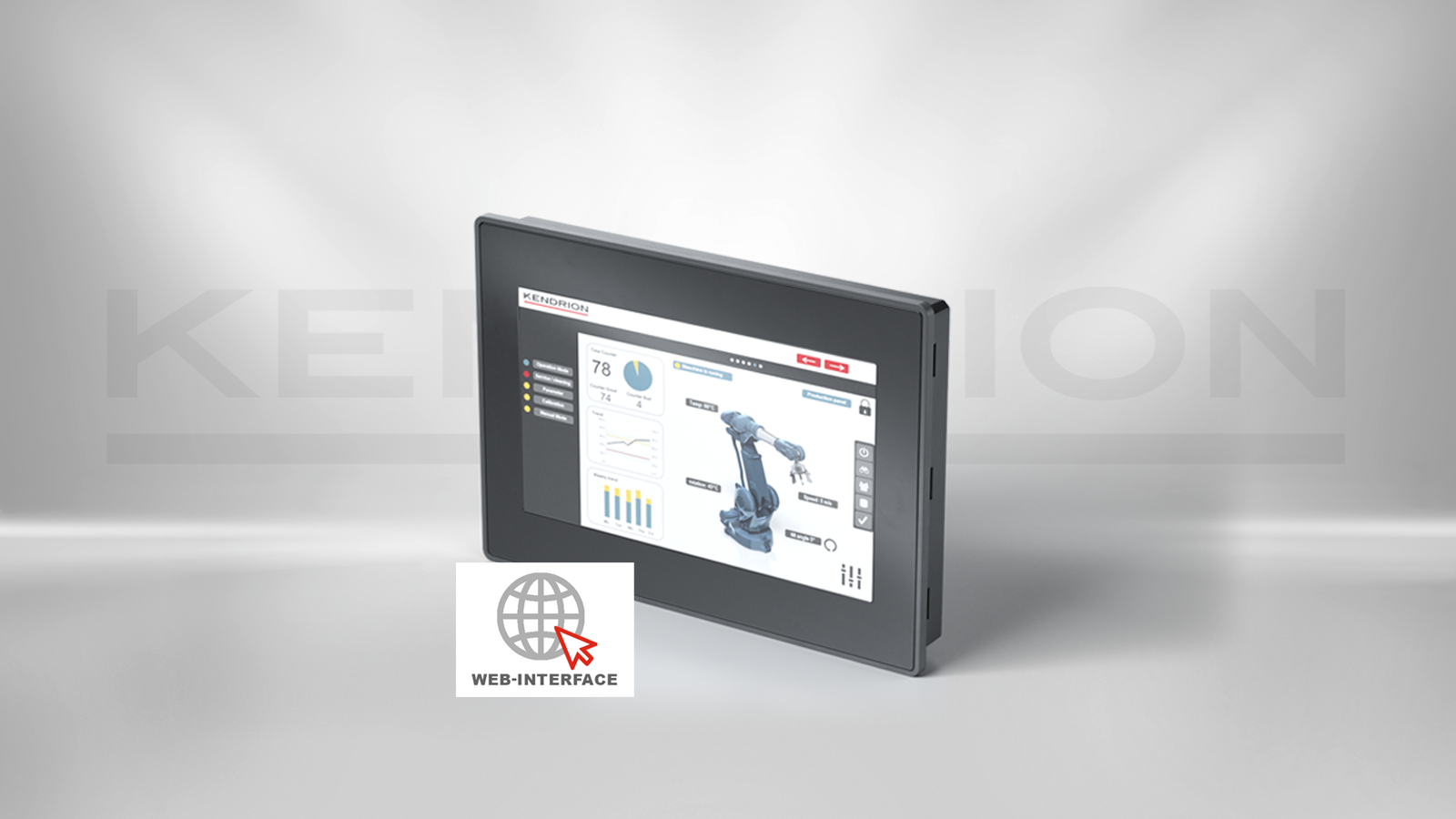

Kuhnke Vico 704 WEB
67780011
The Kuhnke Vico 04 series is a powerful indicator with an industrial design for the realisation of modern operating concepts. The installed software package includes the Chromium web browser and creates the possibility to visualise data from one or more arbitrary controllers with web server on a remote Kuhnke Vico 04. The visualisation takes the form of web pages based on HTML5 and Java script.
The Kuhnke Vico 04 series is based on a powerful ARM Cortex-A8 processor combined with a resistive touch display. All components are robust and long-term available.
-
widescreen display with LED backlight
-
ARM Cortex-A8 processor technology with graphics acceleration
-
Industrial construction
-
Chromium web browser
Technical details
| Description | Value |
|---|---|
| Configuration | Chromium web terminal |
| Function | Touch Panel, web terminal |
| Model | Panel front Built-in unit |
| Product status | Standard product |
| Display | 7" wide |
| Resolution | 800 x 480, WVGA |
| Processor | ARM Cortex-A8 - 1 Ghz |
| Operating system | Linux |
| Main memory | 512 MB |
| Drive | Flash |
| Interfaces | 1 x LAN, 1 x USB, 1 x RS-232/485/422 |
| Housing material | Plastic with inlay foil |
| Data memory | Flash disk 4 GB |
| Dimensions (W x H x D) | 187 x 147 x 34 mm |
| IP-Protection Class | IP 66 / IP 20 |
| Status indication | - |
| Supply voltage | 24 VDC / (10 VDC … 32 VDC) |
| Temperature range | 0 ... +55°C |
