Kuhnke FIO
AI4 12 Bit AO4 16 Bit CoE
694 444 65

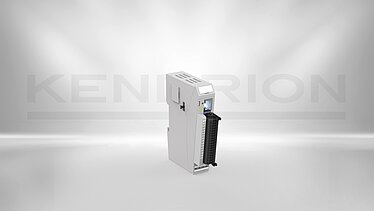

The analogue module Kuhnke FIO AI4 12 Bit / AO4 16 Bit processes on 4 input channels signals in the range between 0/4 to 20 mA or 0-..+10 V. All inputs are digitized with a resolution of 13 bit and transmitted electrically isolated to the master control. Adiitionally, it creates signals on 4 output channels in a range from 0/4 to 20/24 mA or -10/0 to +10 V. The current or voltage is fed with a resolution of 16 bits and is galvanically isolated from the process level. The EtherCAT® terminal output channels have a common ground potential with the 24 V DC power supply. The range of each channel can be configured individually and comfortably in CODESYS via CoE. LEDs, which are assigned to the terminals, show the signal state of the channels. Because of the channel selected configuration, the variety of modules within a system can be significantly reduced.
- 4 current inputs, 0-20mA, 4-20mA / 0..+10 V, resolution 12 bit
- 4 analogue outputs, 0/4 ... 20/24 mA or -10/0 ... +10 V, resolution 16 bit
- Connection with PUSH-IN spring connection
Technical details
Description | Value |
---|---|
Function | analogue - easy configuration |
Model | Control cabinet modul |
Digital I/Os (integrated) | EtherCAT |
Analogue I/Os (integrated) | inputs: 4 AI 0..10V, 0(4)..20mA 12Bit/ outputs: 4 AO 0..10V,+/-10V,0(4)..20(24)mA 16Bit |
Product status | Standard product |
Field bus interfaces | analogue |
Type of connection | female plug with PUSH IN spring connection |
Status indication | LEDs allocated to the point of termination |
Housing material | IP 20 |
Dimensions (W x H x D) | 25 x 120 x 90 mm |
IP-Protection Class | IP 20 |
Supply voltage | 24 V (-15% / +20%) |
Operating temperature | 0 ... +55°C |
Immunity | Zone B according to EN 61131-2 |
Certifications | CE, UL |
