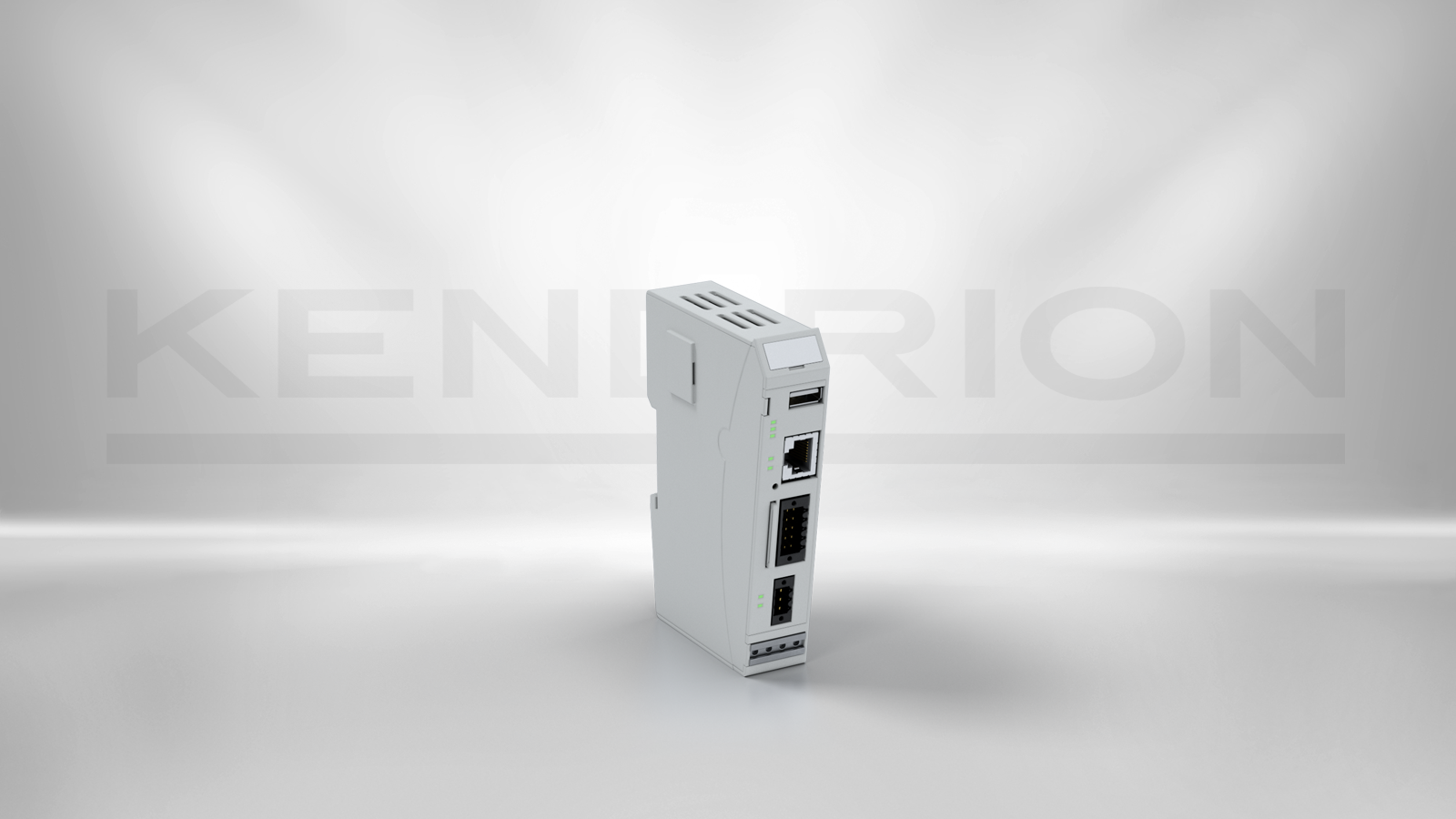

Kuhnke FIO Controller 116
(SM-light)

694 300 16 000

The Kuhnke FIO Controller 116 is a PLC based on i.MX6 with integrated CODESYS PLC. It is able to exchange data with other systems via industrial Ethernet and RS232. In addition, a built-in SD-card slot and a USB-interface allow local storage of process data. An interrupt input allows realizing fastest possible reactions on specific process events. As far as mechanic properties and form factor are concerned, the controller matches the FIO I/O modules, which can be attached directly to form a mechanically and electrically homogenous unit. Using an additional extender module also the control of remote EtherCAT slaves is possible. It can be easily integrated by the number of interfaces (Industrial Ethernet, RS232, CAN) and supported systems into existing control concepts.

  • Fanless ARM processor technology
  • To be extended with FIO modules
  • CODESYS V3 with EtherCAT®
  • Optional: CODESYS SoftMotion

Technical details

Description Value
Configuration CODESYS PLC
Function Modular PLC
Model Control cabinet modul
Product status Standard product
Processor i.MX6 SoloX Freescale 1 GHz
Operating system RT Linux
Software CODESYS V3
Software options Softmotion light, Modbus TCP
Main memory 128
Non-volatile memory 128 kByte
Data memory SD card
Drive Flash memory
Interfaces LAN, USB, CAN, RS-232, EtherCAT-E-Bus
Digital I/Os (integrated) 1DI, 1 ms
Field bus interfaces EtherCAT, CANopen, Modbus RTU and TCP
Modular expansion Expandable with FIO I/O modules
Housing material Aluminium frame, plastic housing
Dimensions (W x H x D) 25 x 120 x 90 mm
IP-Protection Class IP20
Supply voltage 24 V DC (-15% ... +20%)
