Modular PLC
FIO control systems with CODESYS

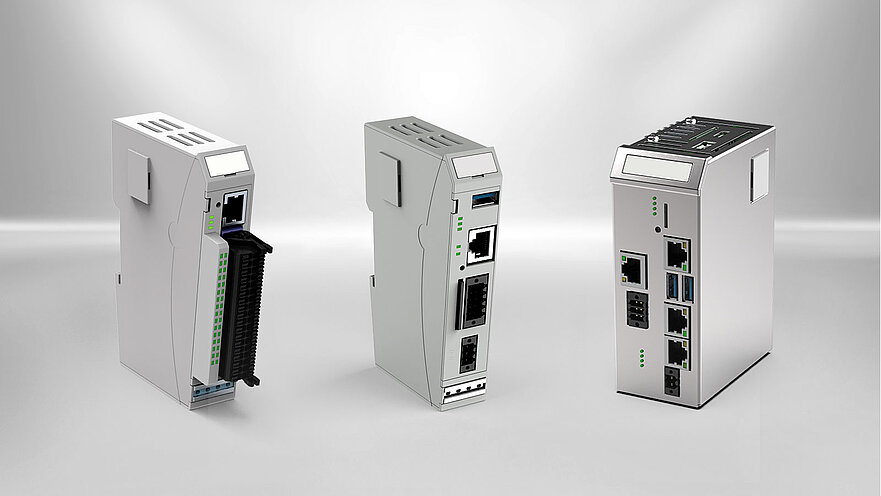

Kendrion modular PLC systems are IEC 61131-3-compliant controllers programmed with the CODESYS Development System V3. The controllers are suitable for use as stand-alone devices and in combination with Kuhnke FIO I/O modules, covering applications from compact single solutions to distributed control architectures.
The controllers support EtherCAT, CANopen, Modbus TCP/RTU, OPC UA and PROFINET. These protocols enable integration into existing automation architectures and communication with higher-level systems and field devices.
Device variants with CODESYS SoftMotion and SoftMotion CNC+Robotics enable the implementation of axis control and robotics applications without additional hardware. Web visualisation is included in the CODESYS Development System.
The controllers feature a compact design with passive cooling and are designed for continuous industrial operation.
Products
(13)
|
Title
|
Type
|
Configuration
|
Function
|
Model
|
Product status
|
Processor
|
Operating system
|
Software
|
Software options
|
Main memory / working memory
|
Non-volatile memory
|
Internal memory / Drive
|
Mass storage / removable storage
|
Interfaces
|
Digital I/Os (integrated)
|
Field bus interfaces
|
Modular expansion
|
Housing material
|
Dimensions (W x H x D)
|
IP-Protection Class
|
Supply voltage
|
Cyber Security, Compliance (CRA)
|
Certifications / Standards
|
Analogue I/Os (integrated)
|
Integrated function
|
Operating temperature
|
Mounting
|
Certifications
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

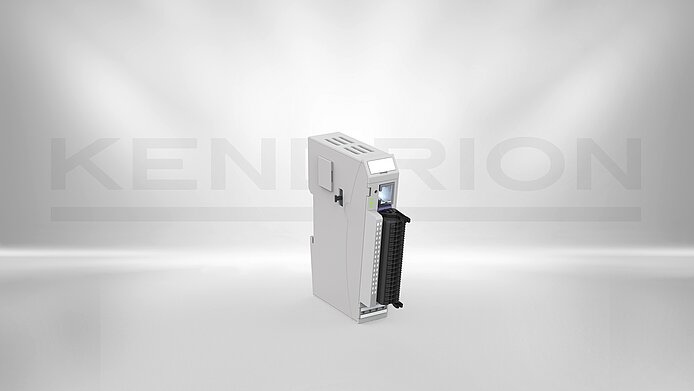

Kuhnke FIO Controller 111 CODESYS PLC with integrated IOs |
694 300 11 000 | CODESYS PLC | Modular PLC with integrated IOs | Control cabinet modul | Standard product | STM32H7, Cortex-M7 (480 MHz) + co-processor for high-speed IOs Cortex-M4 (240 MHz) | RTOS | CODESYS V3 | EtherCAT Master, CANopen Master, Modbus Master | 32 MB | 8 kByte | µSD card up to 32 GB | 16 MB Flash memory | Ethernet, CAN, RS-485, EtherCAT-E-Bus | 8 x DI 24 V (adjustable filter times), 1 x DI 24 V (interrupt-capable), 8 x DO (4 x 24 V 0, 5 A (HighSide) / 4 x 24 V 0, 2 A (PushPull)) | EtherCAT-MainDevice over Ethernet, CANopen Manager, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 25 x 120 x 90 mm | IP20 according to IEC 60529 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | 2 x AI (0…10 V, 0/4 …20 mA, 12 Bit), 2 x AO (0…10 V, 0/4 …20 mA, 12 Bit) | 2 x AI (0…10 V, 12 Bit), 4 x event counter (200kHz), 2 x Encoder A-B-Z (100 kHz), 2 x frequency generator or 4x PTO or 4 x PWM (100 kHz), (special functions reduce the no. of available digital IOs) | - | - | - | |
|

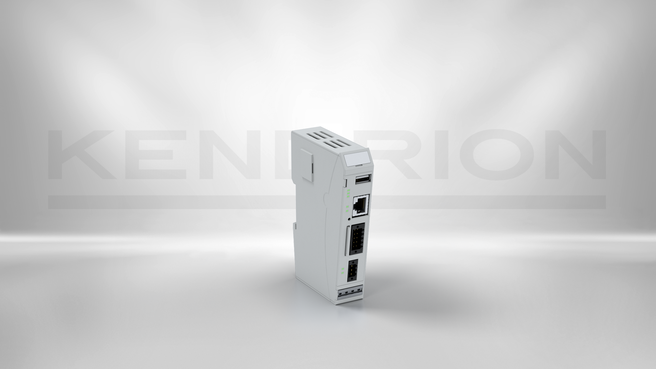

Kuhnke FIO Controller 116 (SM-light) |
694 300 16 000 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | CODESYS V3 | Softmotion light, Modbus TCP | 128 | 128 kByte | Flash memory | SD card | LAN, USB, CAN, RS-232, EtherCAT-E-Bus | 1DI, 1 ms | EtherCAT-MainDevice, CANopen Manager, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 25 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|

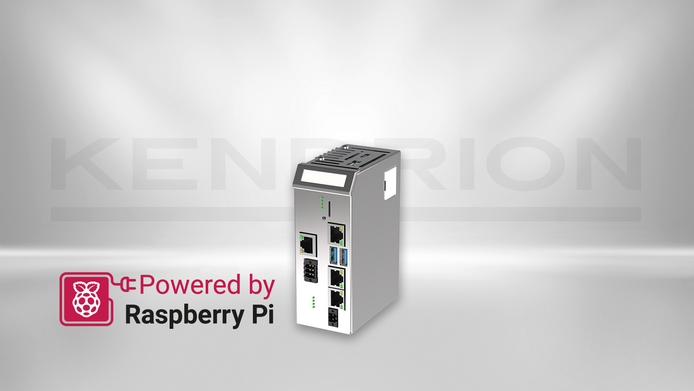

FIO Controller 328 CAN WV | 694 322 28 000 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | Quad -core ARM Cortex A72 (1, 5 GHz) | RT Linux | CODESYS V3 | WebVisu, Motion | 2GB DDR4L | 128 kByte | eMMC Speicher 8 GByte | µSD(HC)-Card Slot bis 32 GByte | 2 x Ethernet, 2 x USB 3.0, 1 x USB 2.0, EtherCAT out, EtherCAT-E-Bus, CAN, RS-485 | - | EtherCAT-MainDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Stainless steel, aluminium heat sink | 51 x 125 x 90 mm, with fan approx. 51 x 145 x 100 mm | IP20 according to IEC 60529 | 12/24 V DC, Powerfail functions, 1 s mini UPS | In progress | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | 0°C...+40 °C without power reduction, with fan up to +55 °C | - | - | |
|

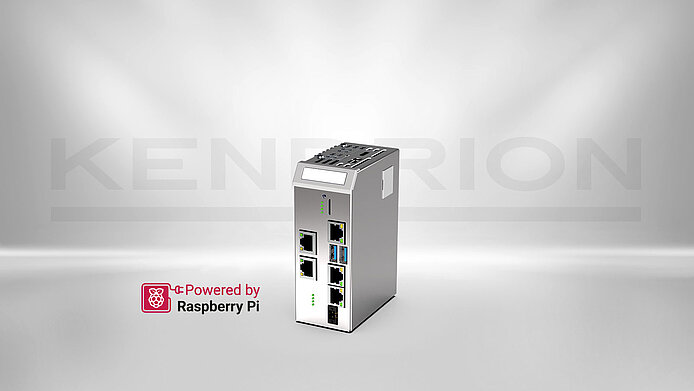

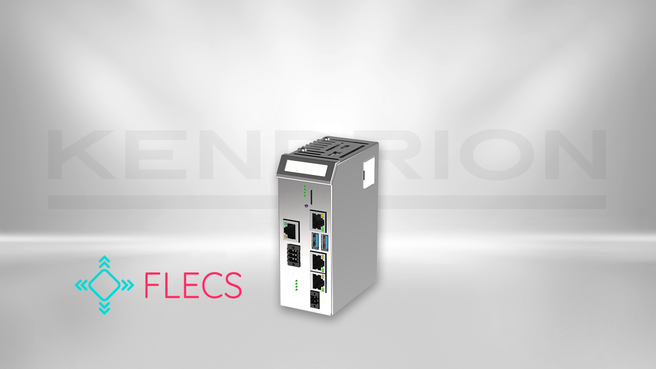

FIO Controller 328 CAN APP | 694 322 28 100 | CODESYS PLC, Micro Edge Controller, IOT Controller | Embedded PC with Soft PLC | Control cabinet modul | Standard product | Quad -core ARM Cortex A72 (1, 5 GHz) | RT Linux | CODESYS V3 and prepared for automation apps from the FLECS Marketplace | Target Visu, WebVisu, SoftMotion (CNC-Robotics) | 2GB DDR4L | 128 kByte | eMMC Speicher 8 GByte | µSD(HC)-Card Slot bis 32 GByte | 2 x Ethernet (SW), 2 x USB 3.0, EtherCAT out, EtherCAT-E-Bus, CAN, RS-485 | - | EtherCAT-MainDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Stainless steel, aluminium heat sink | 51 x 125 x 90 mm, with fan approx. 51 x 145 x 100 mm | IP20 according to IEC 60529 | 12/24 V DC, Powerfail functions, 1 s mini UPS | In progress | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | 0°C...+40°C without power reduction, with fan up to +55°C | - | - | |
|

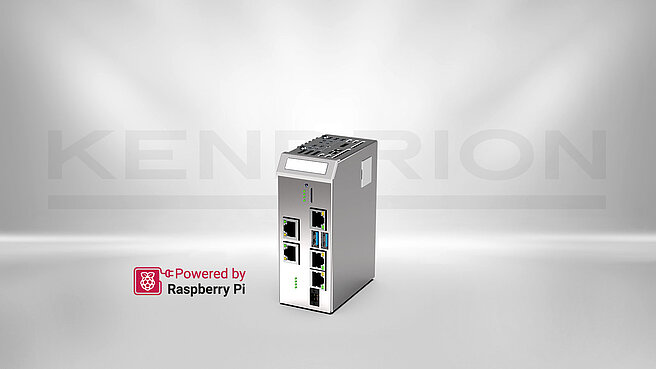

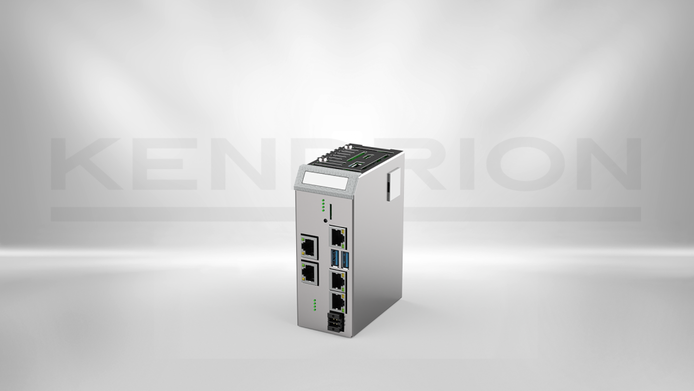

FIO Controller 328 LAN WV | 694 321 28 000 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | Quad -core ARM Cortex A72 (1, 5 GHz) | RT Linux | CODESYS V3 | WebVisu, Motion | 2GB DDR4L | 128 kByte | eMMC Speicher 8 GByte | µSD(HC)-Card Slot bis 32 GByte | 2 x Ethernet, 2 x USB 3.0, 1 x USB 2.0, EtherCAT out, EtherCAT-E-Bus | - | EtherCAT-MainDevice, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Stainless steel, aluminium heat sink | 51 x 125 x 90 mm, mit Lüfter ca. 51 x 145 x 100 mm | IP20 according to IEC 60529 | 12/24 V DC, Powerfail functions, 1 s mini UPS | In progress | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | 0°C...+40°C without power reduction, with fan up to +55°C | - | - | |
|
FIO Controller 328 LAN WV SM | 694 631 28 000 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | Quad -core ARM Cortex A72 (1, 5 GHz) | RT Linux | CODESYS V3 | Target Visu, WebVisu, SoftMotion (CNC-Robotics) | 2GB DDR4L | 128 kByte | eMMC Speicher 8 GByte | µSD(HC)-Card Slot bis 32 GByte | 2 x Ethernet, 2 x USB 3.0, 1 x USB 2.0, EtherCAT out, EtherCAT-E-Bus | - | EtherCAT-MainDevice, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Stainless steel, aluminium heat sink | 51 x 125 x 90 mm, with fan approx. 51 x 145 x 100 mm | IP20 according to IEC 60529 | 12/24 V DC, Powerfail functions, 1 s mini UPS | In progress | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | 0°C...+40°C without power reduction, with fan up to +55°C | - | - | |
|
|
Kuhnke FIO Controller 116 WV (OPC UA) |
694 320 16 001 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | CODESYS V3 | Softmotion light, Modbus TCP, OPC UA Server, WebVisu | 128 | 128 kByte | Flash memory | SD card | LAN, USB, CAN, RS-232, EtherCAT-E-Bus | 1DI, 1 ms | EtherCAT-MainDevice, ACNopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 25 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|
|
Kuhnke FIO Controller 116 WV CNC (OPC UA) |
694 620 16 001 | CODESYS PLC + SoftMotion CNC + Robotics | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | Softmotion CNC, Modbus TCP, OPC UA Server, WebVisu | Modbus RTU, OPC UA Server | 128 | 128 kByte | Flash memory | SD card | LAN, USB, CAN, RS-232, EtherCAT-E-Bus | 1DI, 1 ms | EtherCAT-MainDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 25 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|
|
Kuhnke FIO Controller 116 SM WV (OPC UA) |
694 520 16 001 | CODESYS PLC + SoftMotion | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | CODESYS V3 | Softmotion, Modbus RTU, OPC UA Server, WebVisu | 128 | 128 kByte | Flash memory | SD card | LAN, USB, CAN, RS-232, EtherCAT-E-Bus | 1DI, 1 ms | EtherCAT-MainDevice, CANopen Manager, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 25 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|

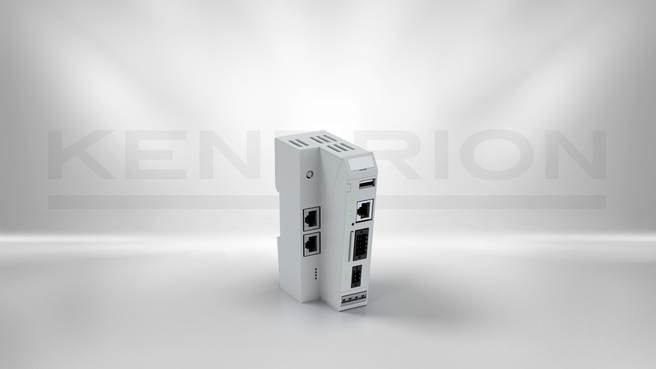

Kuhnke FIO Controller 116 PROFINET IRT (OPC UA) |
694 302 16 001 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | CODESYS V3 | Modbus RTU, OPC UA Server | 256 | 128 kByte | Flash memory | SD card | LAN, USB, CAN, RS-232, EtherCAT-E-Bus, OPC UA | inputs: 1DI, 1 ms | EtherCAT-MainDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU, PROFINET Device | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 42 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|
|
Kuhnke FIO Controller 116 Ethernet WV (OPC UA) |
694 321 16 001 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | CODESYS V3 | Modbus RTU, OPC UA Server, WebVisu | 256 | 128 kByte | Flash memory | SD card | 3 x LAN, USB, CAN, RS-232, EtherCAT-E-Bus, OPC UA | inputs: 1DI, 1 ms | EtherCAT-MainDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 42 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|
|
Kuhnke FIO Controller 116 EtherCAT Slave WV (OPC UA) |
694 323 16 001 | CODESYS PLC | Modular PLC | Control cabinet modul | Standard product | i.MX6 SoloX Freescale 1 GHz | RT Linux | CODESYS V3 | Softmotion light, Modbus TCP, OPC UA Server, WebVisu | 256 | 128 kByte | Flash memory | SD card | LAN, USB, CAN, RS-232, EtherCAT-E-Bus, OPC UA, EtherCAT-Slave IN/OUT | inputs: 1DI, 1 ms | EtherCAT-MainDevice, EtherCAT-SubDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU | Expandable with FIO I/O modules | Aluminium frame, plastic housing | 42 x 120 x 90 mm | IP20 | 24 V DC (-15% ... +20%) | In progress | CE, cULus / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 | - | - | - | - | - | |
|

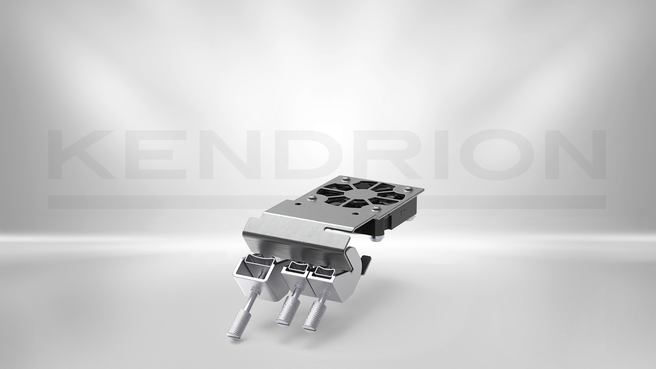

Econo / Controller 328 Fan with EMC shielding terminals |
694 413 01 | - | Accessories - fan + shield connection terminals (1 x 14 mm, 2 x 8 mm) | - | Standard product | - | - | - | - | - | - | - | - | - | - | - | - | - | 44 mm x 15 mm | - | - | - | - | - | - | - | Mounted directly under the device, mounting material included | CE |
