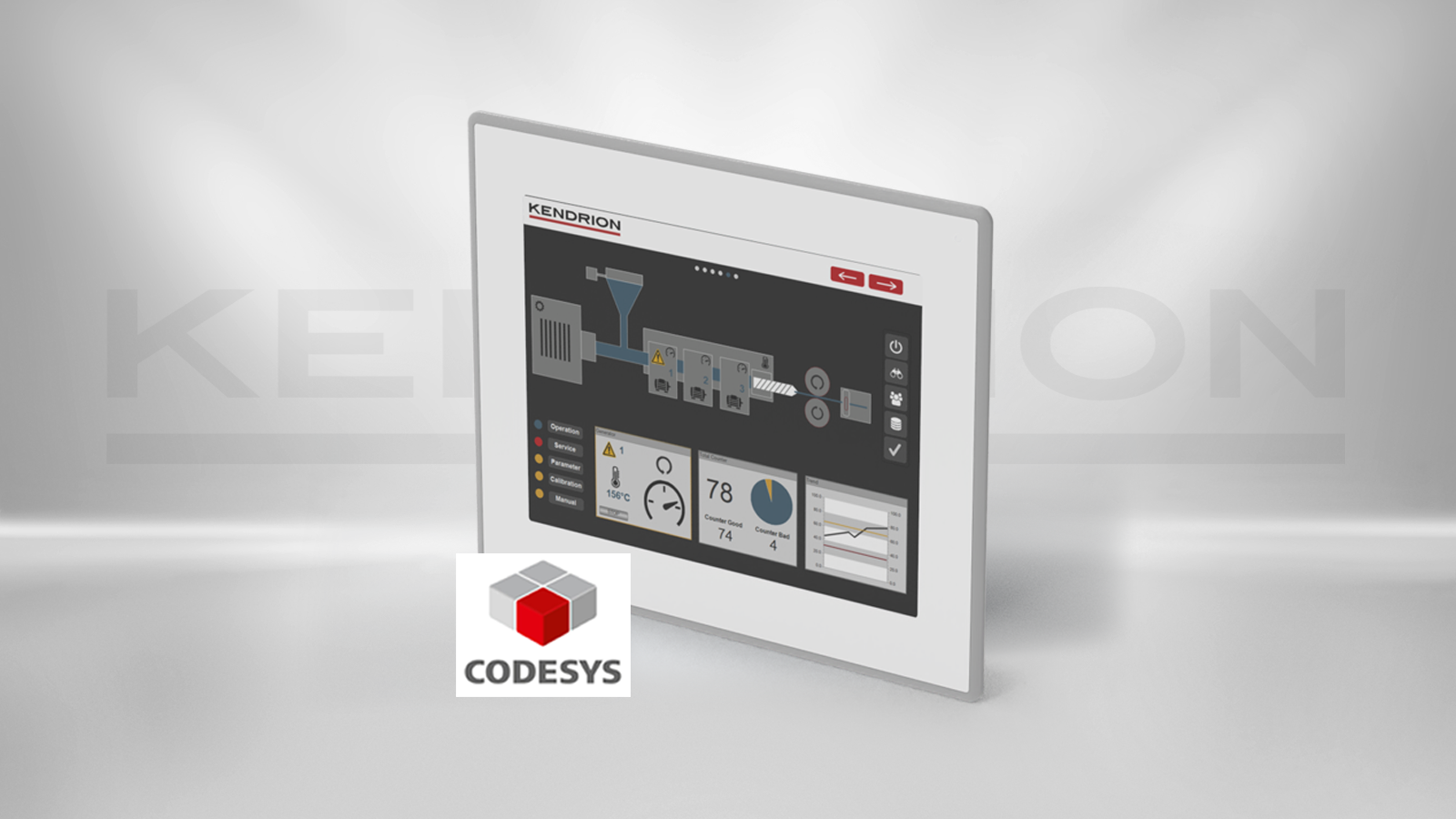

Scout 1226
CODESYS PLC
640 212 109 XXX 400
With an EtherCAT master and two additional CANopen interfaces the new CODESYS control Scout from Kendrion can be used as a HMI and control unit. The simple CODESYS V3 programming ensures an efficient engineering. Furthermore, Scout has optionally 4 digital inputs and outputs. The embedded system is based on a scalable single or multicore i.MX6 processor technology combined with a TFT touch display.
All components are robust and long-term available. Whether standard or customized the all in one solution is the better alternative in many devices and compact machines.
The Scout series can be equipped with different software packages, please contact us for an individual offer.
-
Industry standard interfaces
-
Front with seamless film cover
-
CODESYS V3, real-time clock
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS panel PLC |
| Function | Touch Panel PLC |
| Model | Panel mounted device |
| Product status | Standard product |
| Display | 12.1" |
| Resolution | 800 x 600 (SVGA) |
| Processor | CPU Freescale i.MX6X Solo ; 1 GHz |
| Operating system | Linux RT |
| Software | CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics |
| Main memory | 1024 MB RAM |
| Non-volatile memory | 128 kB |
| Data memory | Flash disk 256 MB, 1 GB pSCL eMMC |
| Drive | SD card |
| Interfaces | 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 galvanically isolated, 1 x CAN, 1 x CAN galvanically isolated, 2 x USB 2.0 host |
| Field bus interfaces | 2 x CANopen, Modbus RTU, Modbus TCP, EtherCAT, OPC UA |
| Status indication | Power LED in the front, 4 x status on the back |
| Housing material | Aluminium with seamless film cover |
| Dimensions (W x H x D) | 320 x 265 x 54 mm |
| Status indication | Power LED in the front, 4 x status on the back |
| Supply voltage | 24 V DC (± 20%) |
| Temperature range | 0 ... +50°C |
| Certifications | CE |
