CODESYS Starterkit
HMI Extension
694 300 99 99

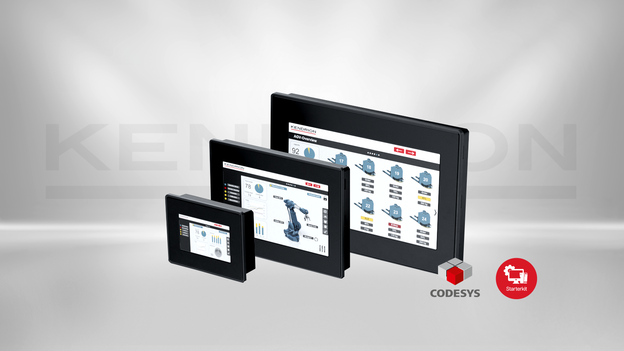

CODESYS Starterkit HMI Extension Easy visualization.
Each Kuhnke CODESYS Starterkit can easily be extended by a CODESYS HMI Touch display. Only connect the display to the Starterkit via an Ethernet cable, connect in with power supply and download a project on the HMI device. The programming, the connection of the program with the PLC as well as the steps to create an own visualization are explained in detail by several examples that can be downloaded comfortably in our download area.
- "Ready to use"
- Easy to integrate into a machine / plant
- Individually expandable and scalable
- Universally applicable thanks to standardised hardware and software interfaces
Technical details
Description | Value |
---|---|
Function | CODESYS Starterkit HMI Extension |
Model | Ready to use extension |
Integrated function | Touchsccreen, TFT color display, IP 65 Front |
Software | CODESYS HMI |
Interfaces | LAN, RS-232 |
Field bus interfaces | HMI |
Product status | Standard product |
