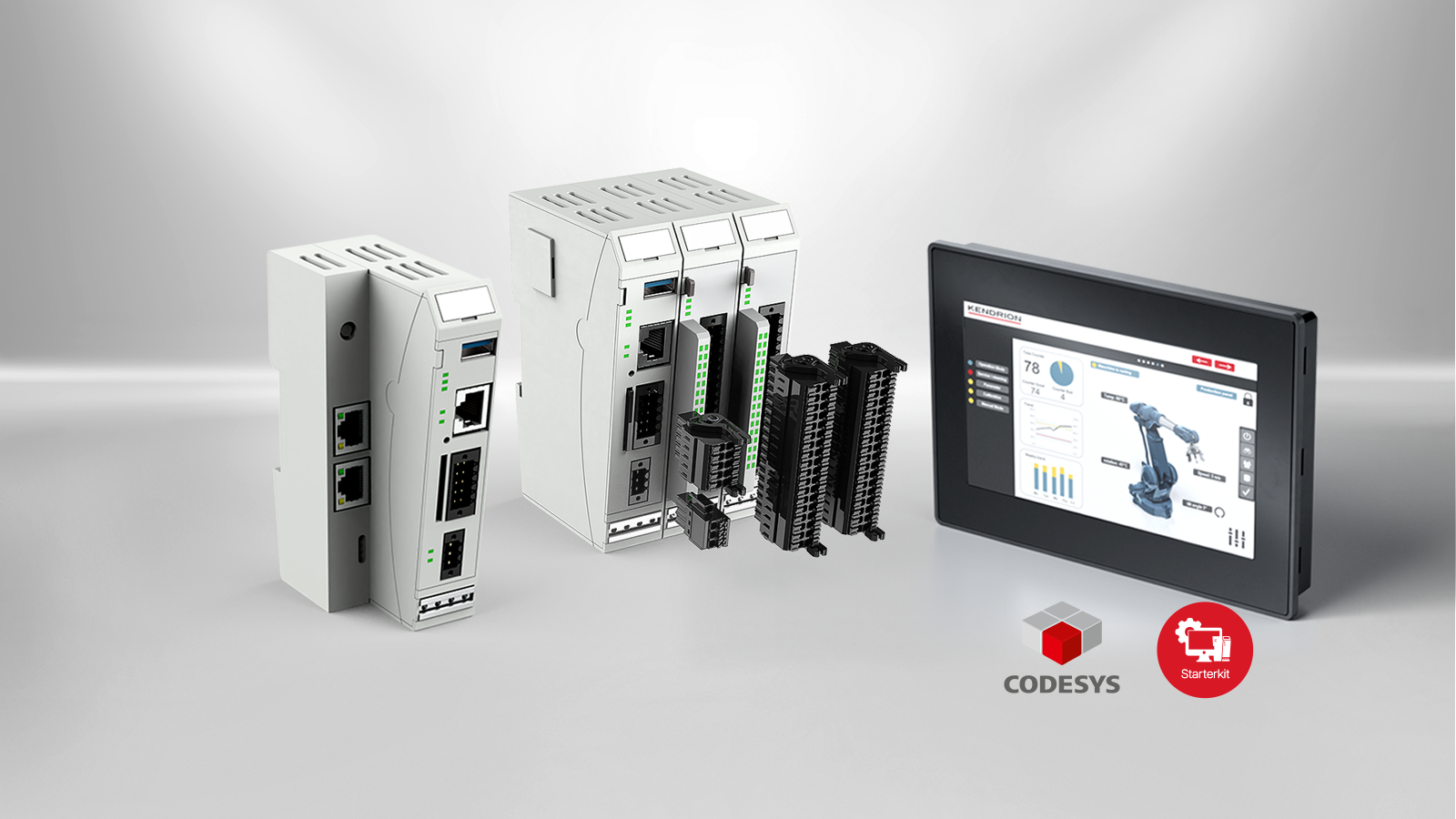

CODESYS Starterkits
Starterkits with CODESYS
CODESYS starter kits from Kendrion contain everything needed to get started with CODESYS V3. The starter kits are already "ready to use" and easy to handle. They are individually expandable and scalable. Thanks to standardized hardware and software interfaces, the starter kits from Kendrion can be used universally.
- Fast CODESYS V3 PLC
- Configurable EtherCAT® master
- EtherCAT expansion module with 16 inputs and 16 outputs
- Optional expandable with Kuhnke FIO modules or Kuhnke CODESYS HMI device
Products
(4)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Function
ascending
descending
|
Model
ascending
descending
|
Integrated function
ascending
descending
|
Software
ascending
descending
|
Interfaces
ascending
descending
|
Field bus interfaces
ascending
descending
|
Product status
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|
|

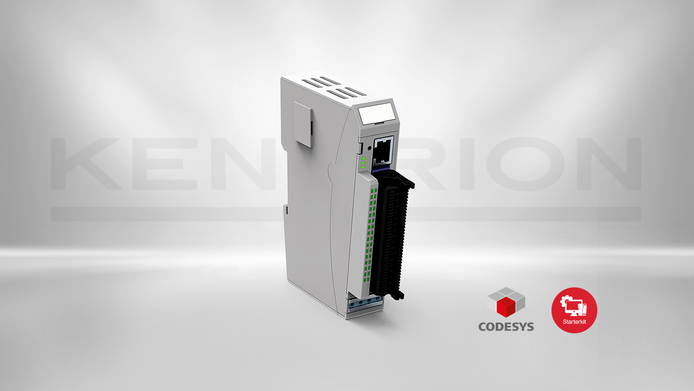

CODESYS Starterkit
PLC with integrated I/Os |
694 300 99 09 | Starterkit PLC with integrated I/Os | Ready to use functional unit | CODESYS V3 PLC with integrated I/Os, EtherCAT Master | CODESYS V3 Soft PLC | LAN, CAN, RS-485 | EtherCAT, CANopen, Modbus RTU and TCP | Standard product | to the product |
|
CODESYS Starterkit
Control & OPC UA |
694 300 99 10 | Starterkit Control & OPC UA | Ready to use functional unit | CODESYS V3 PLC with EtherCAT Expansion module 16DI/16DO | CODESYS V3 Soft PLC, CODESYS WebVisu | LAN, RS-232, CAN, USB | CANopen, Modbus RTU, Modbus TCP, EtherCAT, OPC UA | Standard product | to the product |
|

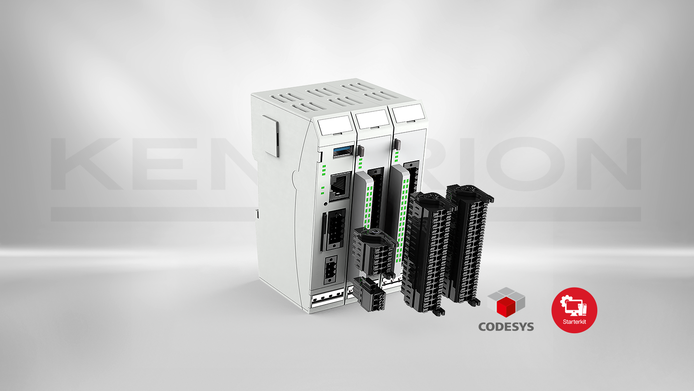

CODESYS Starterkit
Control & Motion |
694 300 99 11 | CODESYS Starterkit Control & Motion | Ready to use functional unit | CODESYS V3 PLC with EtherCAT Expansion module 16DI/16DO, EtherCAT® motion controller for stepper motors | CODESYS V3 Soft PLC, CODESYS, CODESYS WebVisu, Motion Control Library | LAN, RS-232, CAN, USB | CANopen, Modbus RTU, Modbus TCP, EtherCAT, OPC UA | Standard product | to the product |
|

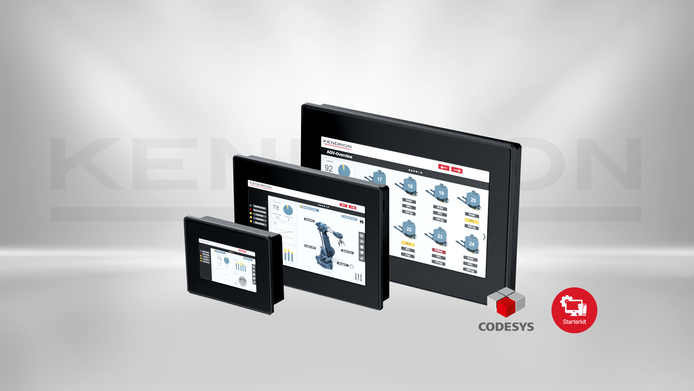

CODESYS Starterkit
HMI Extension |
694 300 99 99 | CODESYS Starterkit HMI Extension | Ready to use extension | Touchsccreen, TFT color display, IP 65 Front | CODESYS HMI | LAN, RS-232 | HMI | Standard product | to the product |
