Rod grippers
Compact rod grippers with high holding forces
Kendrion offers permanent magnetic rod grippers in various sizes, materials and designs. They are made of AlNiCo, NdFeB and SmCo with housings of brass or steel. The rod grippers feature a high holding force with compact size and are used in many applications of different fields.
Special designs for different requirements can be realized on request.
Products
(91)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Thread
ascending
descending
|
Housing
ascending
descending
|
Shortened to (mm)
ascending
descending
|
Fitting Tolerance
ascending
descending
|
Measure "D" (mm)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rod gripper NdFeB
|
550 4022 20 | with internal thread | NdFeB | 280 | 25 | 58 | 80 | M6 x 6 | brass | - | h6 | 4 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4022 25 | with internal thread | NdFeB | 450 | 35 | 130 | 80 | M6 x 8 | brass | - | h6 | 5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4022 32 | with internal thread | NdFeB | 720 | 40 | 243 | 80 | M6 x 6 | brass | - | h6 | 6 | - | to the product |
|
|

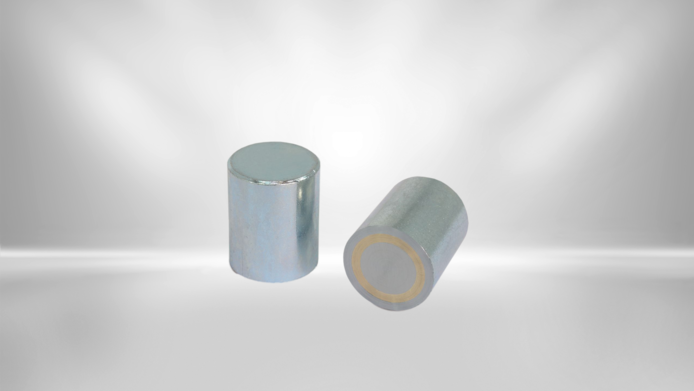

Rod gripper Alnico
|
550 4023 06 | without thread | AlNiCo | 2 | 20 | 4.5 | 450 | - | steel | 12 | - | - | - | to the product |
|
Rod gripper Alnico
|
550 4023 08 | without thread | AlNiCo | 4 | 20 | 7.5 | 450 | - | steel | 11 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 10 | without thread | AlNiCo | 8.5 | 20 | 12 | 450 | - | steel | 10 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 13 | without thread | AlNiCo | 12 | 20 | 19 | 450 | - | steel | 8 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 16 | without thread | AlNiCo | 20 | 20 | 30 | 450 | - | steel | 6 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 20 | without thread | AlNiCo | 40 | 25 | 58 | 450 | - | steel | 5 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 25 | without thread | AlNiCo | 60 | 35 | 125 | 450 | - | steel | 13 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 32 | without thread | AlNiCo | 160 | 40 | 220 | 450 | - | steel | 9 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 40 | without thread | AlNiCo | 240 | 50 | 440 | 450 | - | steel | 10 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 50 | without thread | AlNiCo | 400 | 60 | 813 | 450 | - | steel | 10 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4023 63 | without thread | AlNiCo | 660 | 65 | 1306 | 450 | - | steel | 10 | - | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 06 | without thread | AlNiCo | 2 | 20 | 2 | 450 | - | steel | 2 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 08 | without thread | AlNiCo | 4 | 20 | 4.5 | 450 | - | steel | 3 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 10 | without thread | AlNiCo | 8.5 | 20 | 9.5 | 450 | - | steel | 6 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 13 | without thread | AlNiCo | 12 | 20 | 18 | 450 | - | steel | 6 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 16 | without thread | AlNiCo | 20 | 20 | 30 | 450 | - | steel | 6 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 20 | without thread | AlNiCo | 40 | 25 | 57 | 450 | - | steel | 5 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 25 | without thread | AlNiCo | 60 | 35 | 106 | 450 | - | steel | 7 | h6 | - | - | to the product |
