Rod grippers
Compact rod grippers with high holding forces
Kendrion offers permanent magnetic rod grippers in various sizes, materials and designs. They are made of AlNiCo, NdFeB and SmCo with housings of brass or steel. The rod grippers feature a high holding force with compact size and are used in many applications of different fields.
Special designs for different requirements can be realized on request.
Products
(91)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Thread
ascending
descending
|
Housing
ascending
descending
|
Shortened to (mm)
ascending
descending
|
Fitting Tolerance
ascending
descending
|
Measure "D" (mm)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rod gripper Alnico
|
550 4012 32 | without thread | AlNiCo | 160 | 40 | 187 | 450 | - | steel | 4 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 40 | without thread | AlNiCo | 240 | 50 | 390 | 450 | - | steel | 5 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 50 | without thread | AlNiCo | 400 | 60 | 639 | 450 | - | steel | - | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4012 63 | without thread | AlNiCo | 660 | 65 | 1157 | 450 | - | steel | 5 | h6 | - | - | to the product |
|

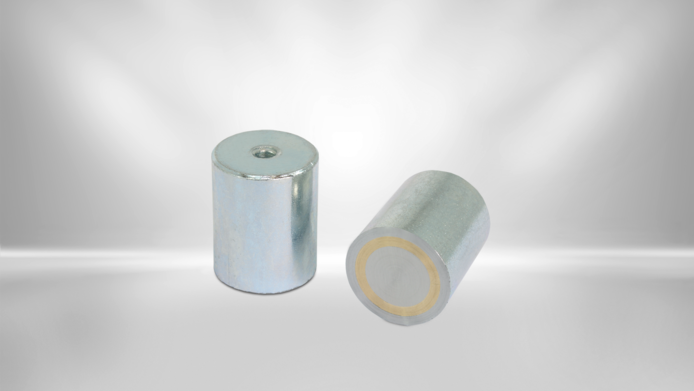

Rod gripper Alnico
|
550 4013 06 | with internal thread | AlNiCo | 2 | 20 | 4.5 | 450 | M3 x 5 | steel | 2 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 08 | with internal thread | AlNiCo | 4 | 20 | 7.5 | 450 | M3 x 5 | steel | 3 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 10 | with internal thread | AlNiCo | 8.5 | 20 | 11 | 450 | M4 x 7 | steel | 6 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 13 | with internal thread | AlNiCo | 12 | 20 | 19 | 450 | M4 x 7 | steel | 6 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 16 | with internal thread | AlNiCo | 20 | 20 | 30 | 450 | M4 x 5 | steel | 6 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 20 | with internal thread | AlNiCo | 40 | 25 | 55 | 450 | M6 x 7 | steel | 5 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 25 | with internal thread | AlNiCo | 60 | 35 | 121 | 450 | M6 x 9 | steel | 7 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 32 | with internal thread | AlNiCo | 160 | 40 | 220 | 450 | M8 x 9 | steel | 4 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 40 | with internal thread | AlNiCo | 240 | 50 | 440 | 450 | M8 x 9 | steel | 5 | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 50 | with internal thread | AlNiCo | 400 | 60 | 750 | 450 | M10 x 12 | steel | - | h6 | - | - | to the product |
|
|
Rod gripper Alnico
|
550 4013 63 | with internal thread | AlNiCo | 660 | 65 | 1280 | 450 | M10 x 12 | steel | 5 | h6 | - | - | to the product |
|

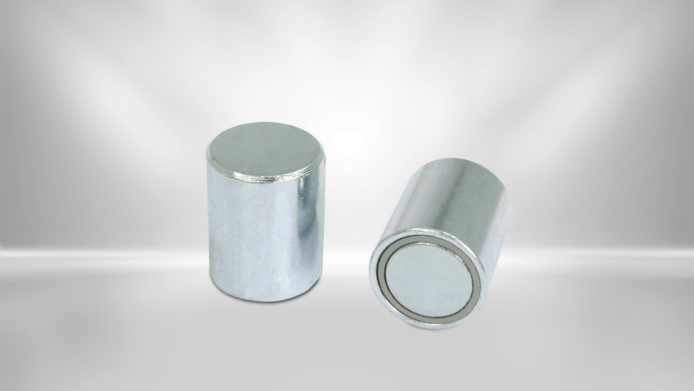

Rod gripper NdFeB
|
550 4025 04 | without thread | NdFeB | 2.5 | 20 | 2 | 80 | - | steel | 15 | - | - | - | to the product |
|
|
Rod gripper NdFeB
|
550 4025 05 | without thread | NdFeB | 4.5 | 20 | 3 | 80 | - | steel | 15 | - | - | - | to the product |
|
|
Rod gripper NdFeB
|
550 4025 06 | without thread | NdFeB | 6 | 20 | 4.5 | 80 | - | steel | 15 | - | - | - | to the product |
|
|
Rod gripper NdFeB
|
550 4025 08 | without thread | NdFeB | 12 | 20 | 8 | 80 | - | steel | 15 | - | - | - | to the product |
|
|
Rod gripper NdFeB
|
550 4025 10 | without thread | NdFeB | 24 | 20 | 12 | 80 | - | steel | 15 | - | - | - | to the product |
|
|
Rod gripper NdFeB
|
550 4025 13 | without thread | NdFeB | 60 | 20 | 21 | 80 | - | steel | 15 | - | - | - | to the product |
