Our Lean Collection

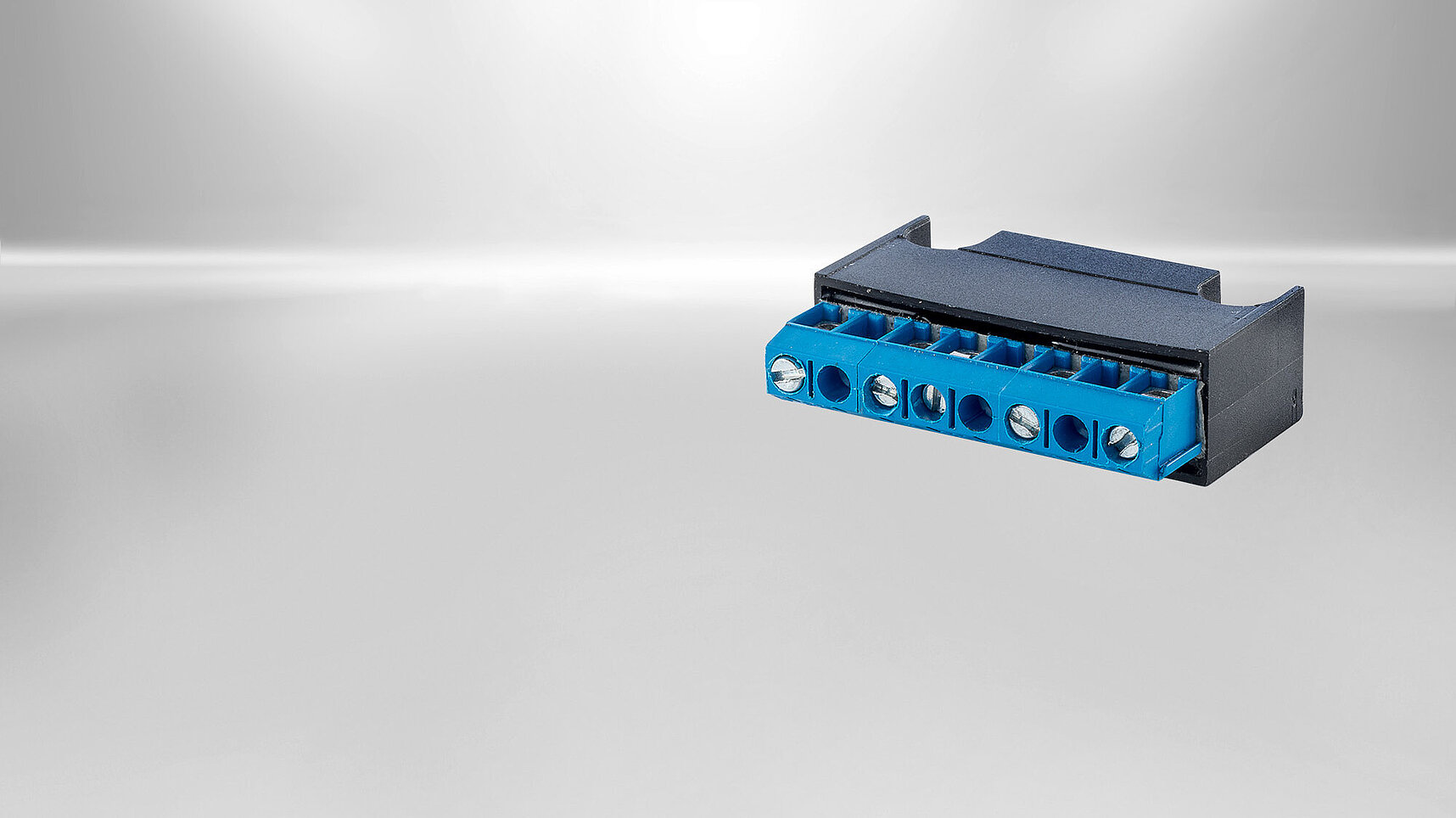

Compact single-phase rectifiers

These compact half-wave and bridge rectifiers are ideal for installation in space restricted junction boxes of brake motors. They can be delivered with flying leads or terminals for connection. Various accessories are available to meet different installation requirements.



Features at a glance

  • Available with or without fast turn-off via auxiliary contact
  • Very compact & Cost-effective
  • Variety of mounting & connection options
  • Designed for use with spring-applied brakes up to size 16
  • When used in applications with minimal dynamic requirements, the rectifier can be
  • installed in small junction boxes

Versions

  • Bridge / One-way WITH fast turn-off via auxiliary contact

  • Bridge / One-way WITHOUT fast turn-off

Technical Details

Features With fast turn-off Without fast turn-off
Rectification Bridge / half wave Bridge / half wave
Nominal input voltage One-way until 415 VAC / Bridge until 250 VAC until 500 VAC
Output voltage Uin * 0.89 / Uin * 0.445 Uin * 0.89 / Uin * 0.445
Output current Bridge 1 A / half wave 1 A Bridge 2.0 A / half wave 1.0 A
Fast turn-off Yes (with auxiliary contact) No
Connections clamp Strands or clamp
Datasheets
Datasheet | Lean Collection | 32 07xxxB0x
pdf - 223 KB
