Our Universal Collection

Single-phase rectifiers for universal use

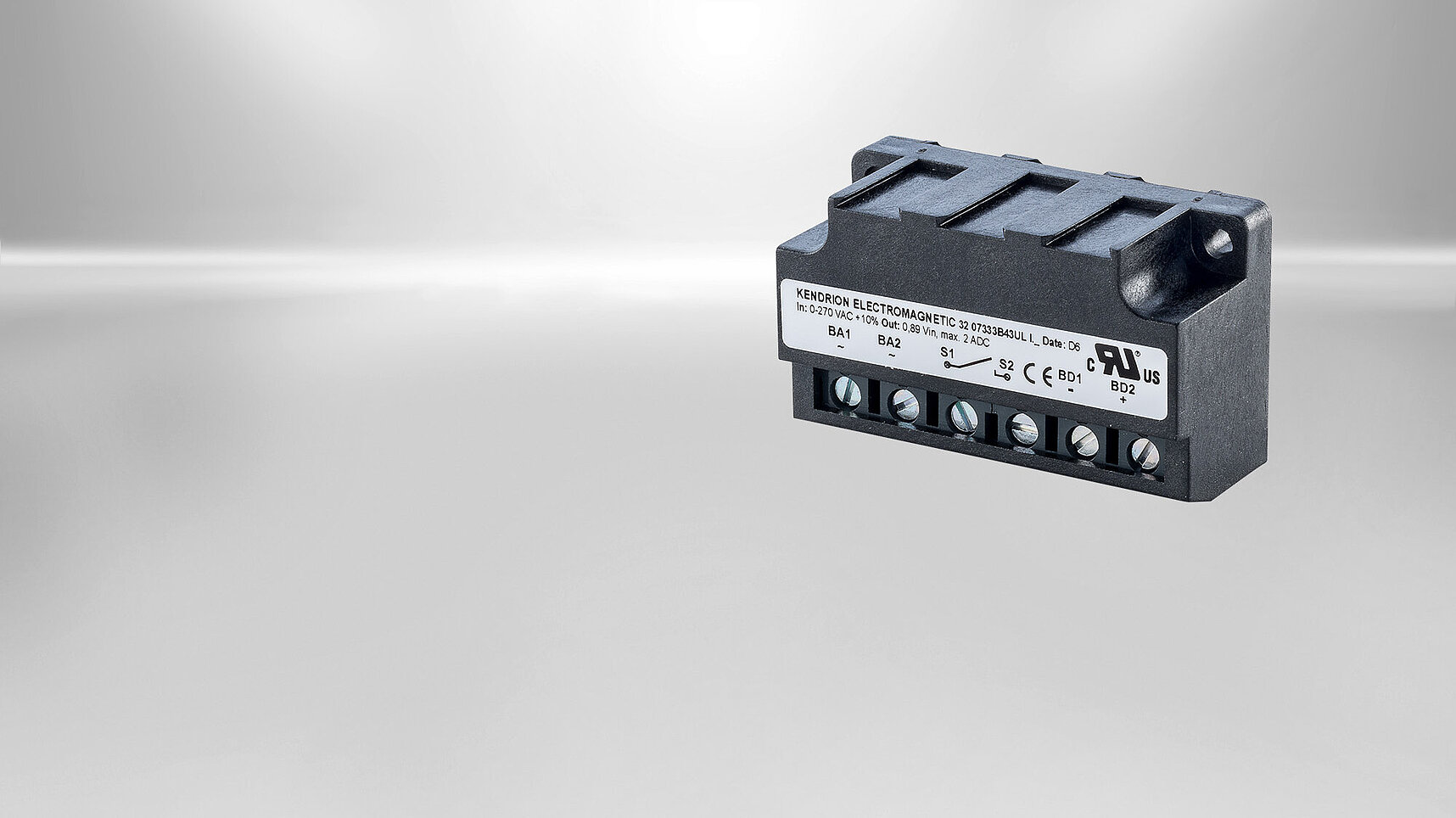

These half-wave and bridge rectifiers are ideal for installation in the junction boxes of medium-power brake motors, brakes and solenoids. Accessories include flying leads and a range of mounting hardware so that installation on DIN rails is also possible. Encapsulated versions for an extended operating temperature range are available as options.

In case of additional DC side fast turn-off, the induction voltage generated by inductive loads is limited within the rectifier.

Features at a glance

  • Energy savings up to 75%
  • All rectifier and switching types can be combined in a single housing
  • Variety of mounting & connection options
  • Universal use with all brakes up to size 16, depending on power consumption
  • Drives with high cycle rates
  • Ideal for brakes with long maintenance intervals and low intrinsic heating
  • Separate use with brakes and magnets

Versions

  • Bridge-/half-wave rectifiers

  • Hybrid rectifiers

  • Overexcitation rectifiers with fast turn-off via auxiliary contact

  • Overexcitation rectifiers with fast turn-off via voltage detection

  • Overexcitation rectifiers with fast turn-off via current detection

Technical Details

Type Bridge-/half-wave rectifiers (B40) Hybrid rectifiers (67304) Overexcitation rectifiers (17320) Overexcitation rectifiers (77303) Overexcitation rectifiers (57303)
Turn-off - - with fast turn-off via auxiliary contact with fast turn-off via voltage detection with fast turn-off via current contact
Rectification Bridge/half-wave Bridge/half-wave Bridge / one-way switching Time-controlled bridge / one-way switching Time-controlled bridge / one-way switching
Rated input voltage until 500 VAC until 500 VAC until 500 VAC until 500 VAC until 415 VAC
Output voltage   Uin * 0.89 / Uin * 0.445 Uin * 0.89 / Uin * 0.445 Uin * 0.89 / Uin * 0.445 Uin * 0.89 / Uin * 0.445
Output current Bridge 2.0 A / half wave 1.0 A Bridge 1.0 A / half wave 1.0 A ÜE 3.0A / Stop 1.5A ÜE 2.0A / Stop 1.0A ÜE 1.4A / Stop 0.7A
Fast turn-off yes with auxiliary contact yes (with auxiliary contact) yes (with auxiliary contact) yes (via internal voltage detection) yes (via internal current detection)
Connections Clamp Clamp Clamp Clamp Clamp
Overexcitation time - - 0.25s - 1.1s 0.25s 0.3s
Datasheets
Datasheet | Universal Collection | 32 773x3B00
pdf - 296 KB
Datasheets
Datasheet | Universal Collection | 32 673x4B00
pdf - 283 KB
Datasheets
Datasheet | Universal Collection | 32 57303B00
pdf - 264 KB
Datasheets
Datasheet | Universal Collection | 32 17x2xBxx
pdf - 274 KB
Datasheets
Datasheet | Universal Collection | 32 073xxB40
pdf - 242 KB
