Permanentmagnetic electro holding magnets

Safe holding even during power failure

Permanent electro holding magnets consist of a permanent magnet that is installed into a magnet housing together with an excitation coil. The magnetic circuit, which is open in the switched-off state, allows for currentless and safe holding of magnetic workpieces. When the DC-excited coil is switched on, the permanent-magnetic field is neutralized at the holding surface, and the workpiece to be held can be taken off. These magnetic systems are very energy-efficient as the magnet is only briefly energized to release the workpiece. They are used in particular if there are long holding times without energy consumption and where loads must be reliably and safely held in case of power failure.

Kendrion offers the following standard models:

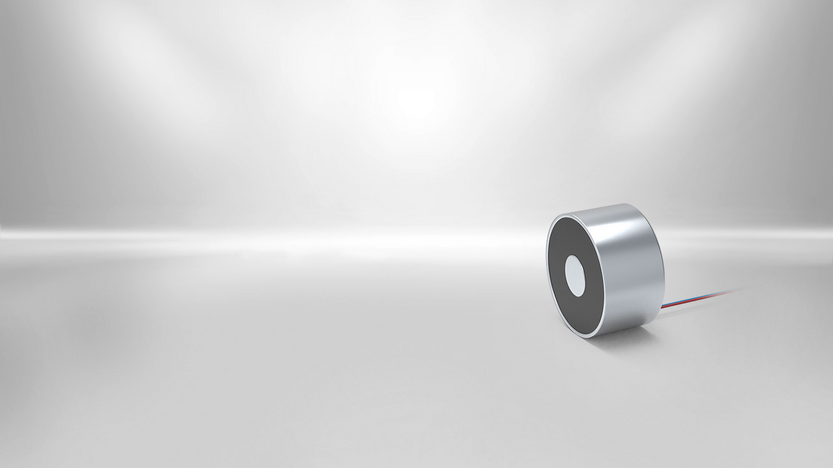

Series 01 320: Permanent (electro) holding magnets in a round design with a diameter of 20-150mm

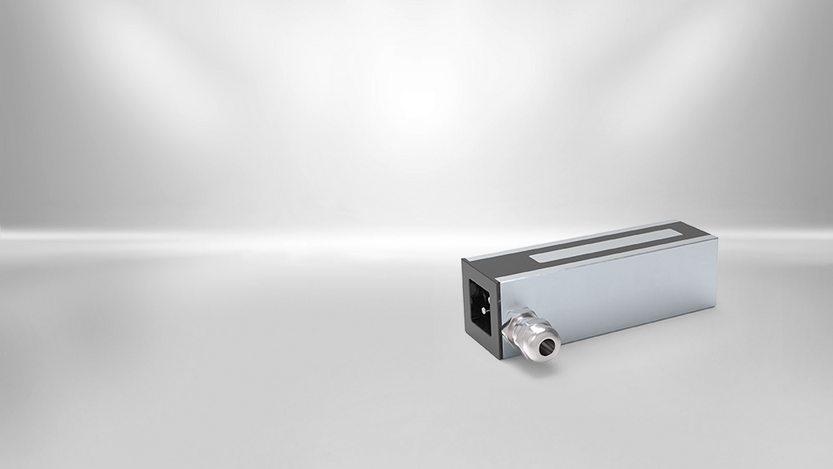

Series 01 310: Permanent (electro) holding magnets in rectangular design in lengths of 150 and 200mm

Series PEM: Permanent (electro) holding magnets in a round design with a diameter of 12-25mm. A threaded rod at the rear side is available for installation.

The magnets achieve the maximum holding forces possible if the armature plate rests directly and to the full extent on the surface. The holding forces reach from 8-3,500 N.





Our Standard Portfolio

Benefits at a glance

  • Saving of energy by currentless holding
  • High holding force
  • No remanent magnetization after neutralization

Technical Data

Parameter Value
Supply voltage Standard 24 V DC
Duty cycle 25%
Designs Round and rectangular
Sizes round Ø 12 - 150mm
Sizes rectangular Length 150, 200 mm
Rated power 1 - 40 W
Force 8 - 3,500 N
Protection class up to IP65
Protection class connection IP00
Installation type Threaded hole(s) at rear side
Threaded bar at rear side
Thermal class E

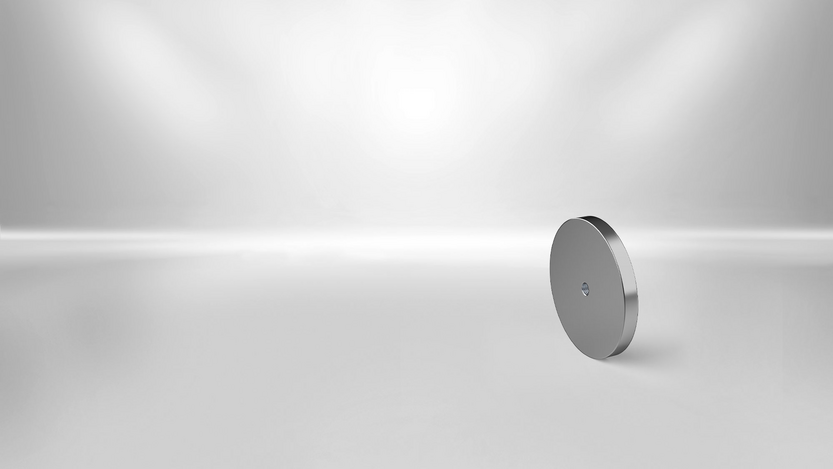

Accessories Armature plate
Rectifier
