Door holding magnets
Electromagnetic door holders
Kendrion offers a wide range of different door holding solenoids in tested quality. Doors are held open with low power consumption and high holding forces and closed by interrupting the power supply. Kendrion door holding solenoids are mainly used as holding devices on fire doors, gates or flaps. As a market-leading manufacturer, Kendrion offers a program for use in fire protection areas that complies with the guidelines. The electromagnetic door holding systems are also used on conventional doors in business and entrance areas and in special versions in maritime areas.
Products
(70)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Holding force (N)
ascending
descending
|
Design
ascending
descending
|
Connection
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|
|
Door holding magnets GTR063
|
GTR063.000310 | 24 | 100 | 1.5 | 700 | without base plate | plug in connector | to the product |
|
Door holding magnets GTR063
|

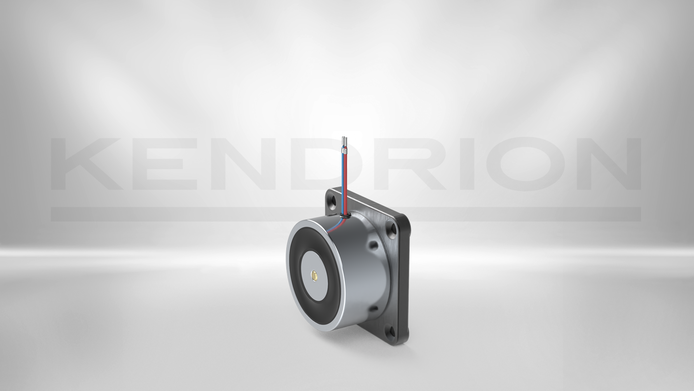

GTR063.005001 | 24 | 100 | 1.5 | 700 | with base plate | free leads | to the product |
|

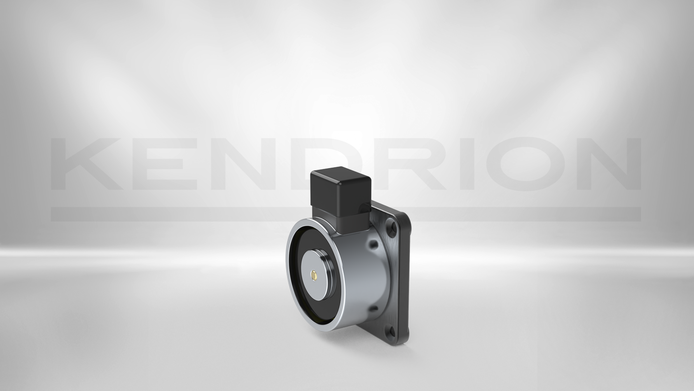

Door holding magnets GTR063
|
GTR063.005515 | 24 | 100 | 1.5 | 700 | with base plate | Terminal clamp | to the product |
|

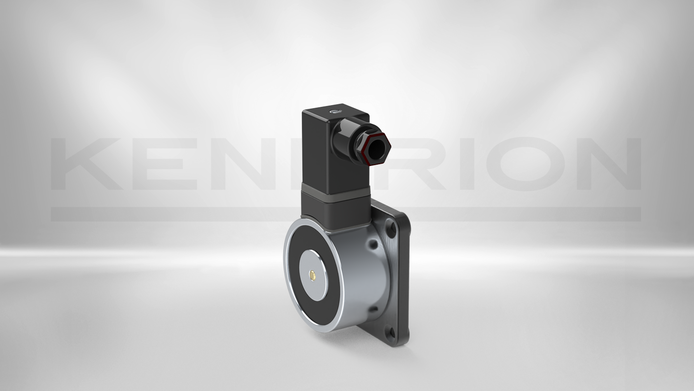

Door holding magnets GTR063
|
GTR063.006010 | 24 | 100 | 1.5 | 700 | with base plate | plug in connector | to the product |
|

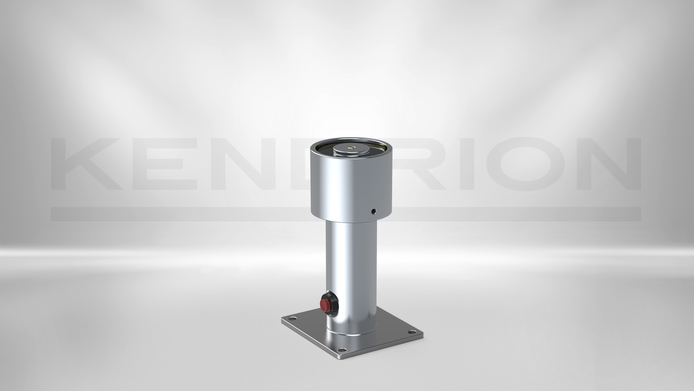

Door holding magnets GTR063
|
GTR063.008001 | 24 | 100 | 1.5 | 700 | Wall mounting 150mm | Terminal clamp | to the product |
|

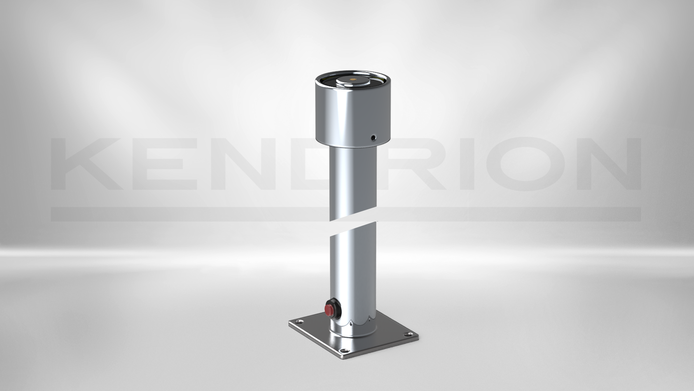

Door holding magnets GTR063
|
GTR063.008002 | 24 | 100 | 1.5 | 700 | Wall mounting 300mm | Terminal clamp | to the product |
|
Door holding magnets GTR063
|

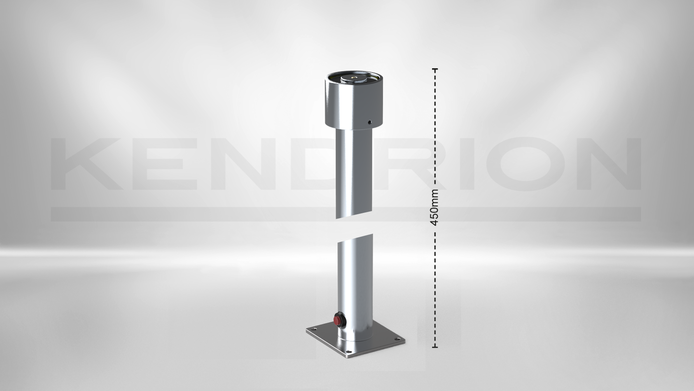

GTR063.008003 | 24 | 100 | 1.5 | 700 | Wall mounting 450mm | Terminal clamp | to the product |
|

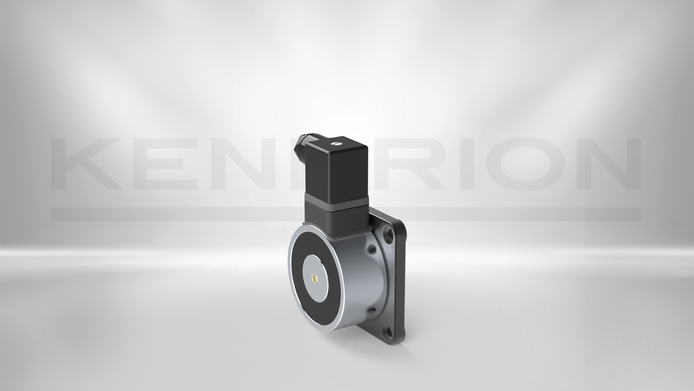

Door holding magnets GTR063
|
GTR063.508030 | 24 | 100 | 1.5 | 700 | mit Grundplatte, Stellungsüberwachung | Connection box | to the product |
|
|
Door holding magnets GTR063
|
GTR063.009001 | 24 | 100 | 1.5 | 700 | Floor mounting | Terminal clamp | to the product |
|

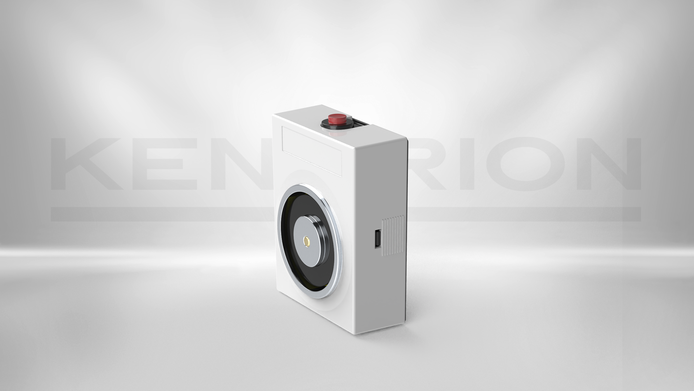

Door holding magnets GTR063
|
GTR063.500061 | 24 | 100 | 1.5 | 700 | Wall mounting | Terminal clamp | to the product |
|

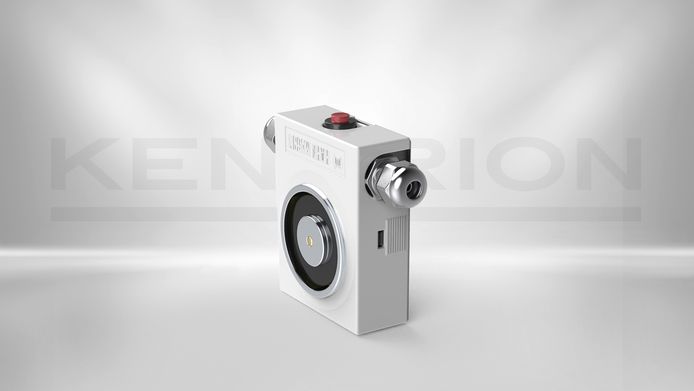

Door holding magnets GTR063
|
GTR063.500062 | 24 | 100 | 1.5 | 700 | Wall mounting, with PG cable glands | Terminal clamp | to the product |
|

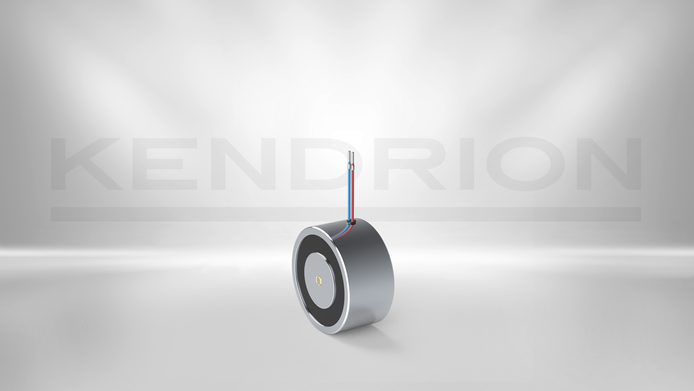

Door holding magnets GTR070
|
GTR070.004601 | 24 | 100 | 1.5 | 1372 | Without base plate | Free leads | to the product |
|
Door holding magnets GTR070
|

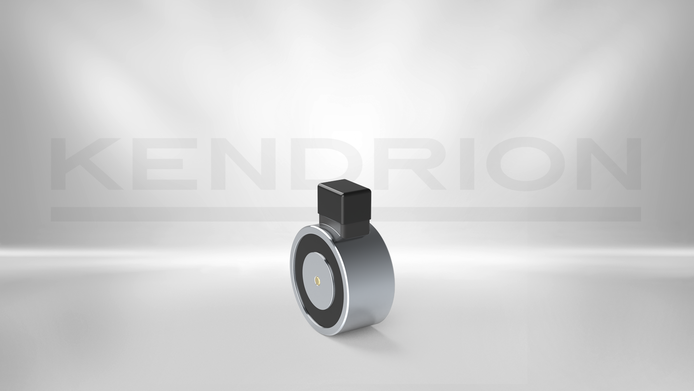

GTR070.004701 | 24 | 100 | 1.5 | 1372 | Without base plate | Terminal clamp | to the product |
|

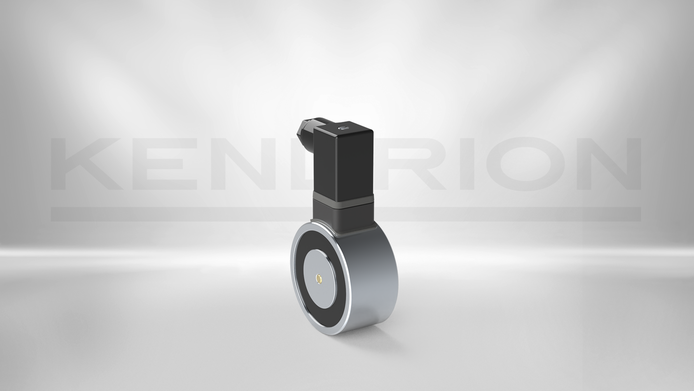

Door holding magnets GTR070
|
GTR070.005301 | 24 | 100 | 1.5 | 1372 | Without base plate | plug in connector | to the product |
|

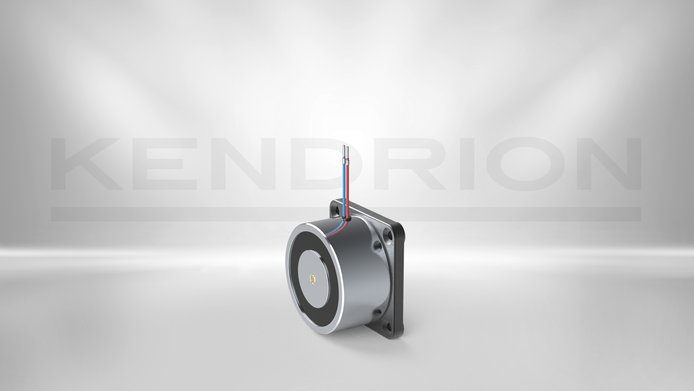

Door holding magnets GTR070
|
GTR070.024001 | 24 | 100 | 1.5 | 1372 | With base plate | Free leads | to the product |
|

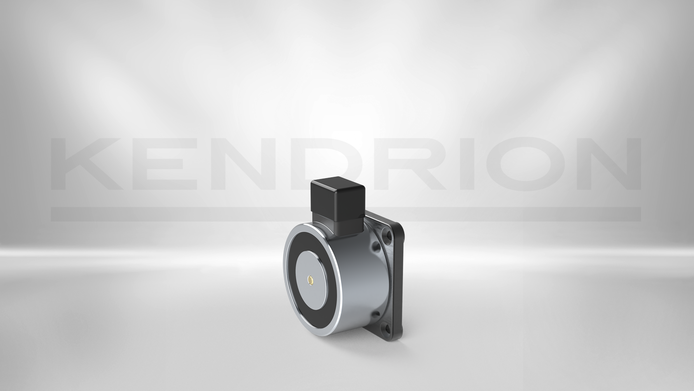

Door holding magnets GTR070
|
GTR070.024002 | 24 | 100 | 1.5 | 1372 | With base plate | Terminal clamp | to the product |
|

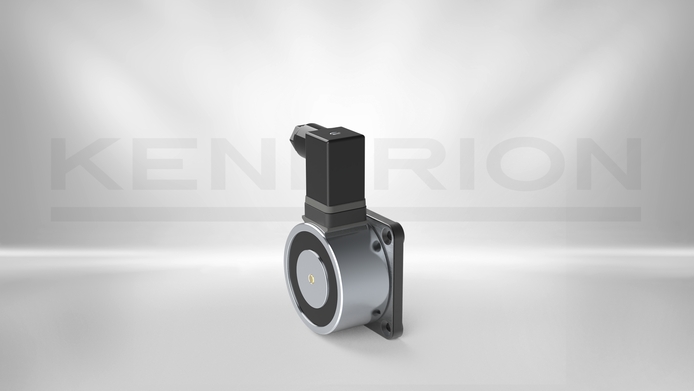

Door holding magnets GTR070
|
GTR070.025031 | 24 | 100 | 1.5 | 1372 | With base plate | plug in connector | to the product |
|

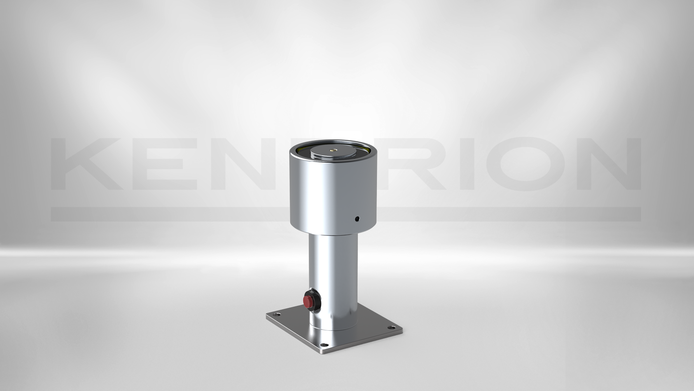

Door holding magnets GTR070
|
GTR070.053001 | 24 | 100 | 1.5 | 1372 | Wall mounting 150mm | Terminal clamp | to the product |
|
Door holding magnets GTR070
|

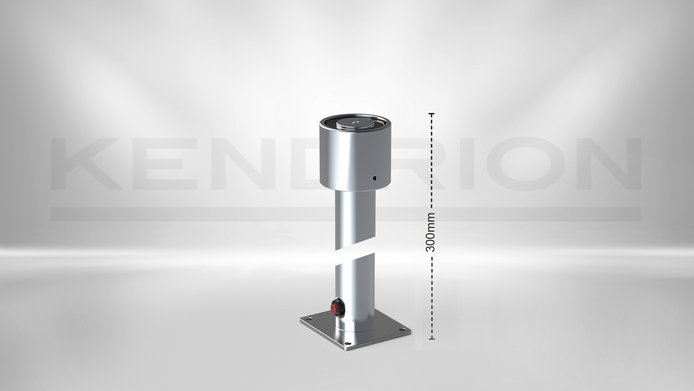

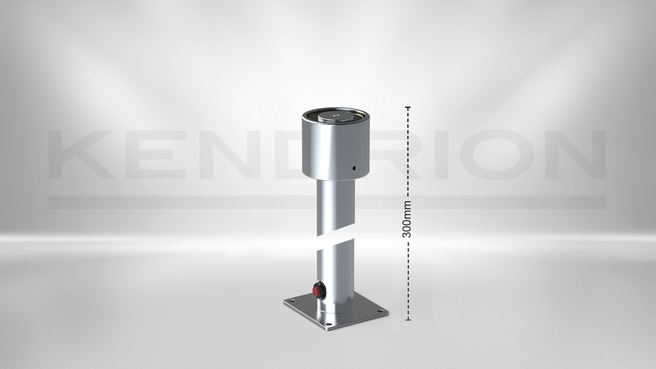

GTR070.053309 | 24 | 100 | 1.5 | 1372 | Wall mounting 300mm | Terminal clamp | to the product |
|

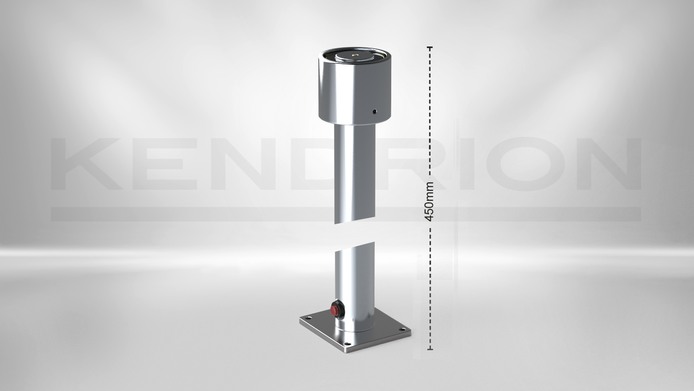

Door holding magnets GTR070
|
GTR070.053459 | 24 | 100 | 1.5 | 1372 | Wall mounting 450mm | Terminal clamp | to the product |
|

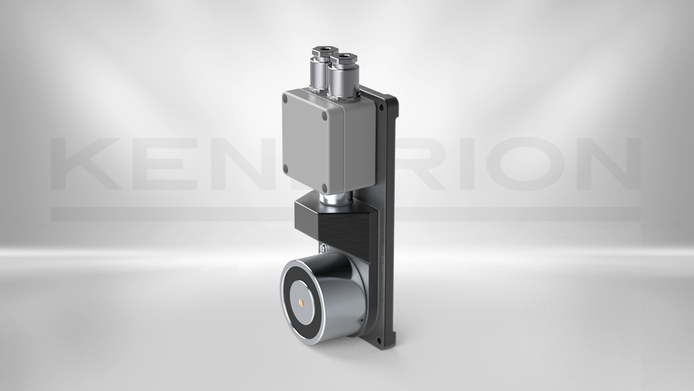

Door holding magnets GTR070
|
GTR070.074001 | 24 | 100 | 1.5 | 1372 | Ship model, IP65 | connection box | to the product |
