Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Thread
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Diameter counter bore (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

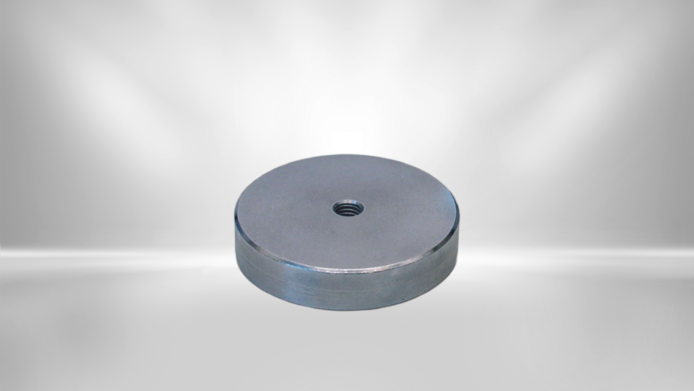

Permanent flat gripper HF
|
550 4048 32 | with internal thread | NdFeB | 330 | 32 | 8 | 40 | 80 | galvanized | - | - | M5 | 5.5 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4048 42 | with internal thread | NdFeB | 500 | 40 | 8 | 74 | 80 | galvanized | - | - | M5 | 10.5 | - | to the product |
|
|
Permanent flat gripper HF
|
550 404848 | with internal thread | NdFeB | 800 | 50 | 10 | 140 | 80 | galvanized | - | - | M8 | 9.5 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4048 60 | with internal thread | NdFeB | 1100 | 63 | 14 | 315 | 80 | galvanized | - | - | M10 | 11.7 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4048 75 | with internal thread | NdFeB | 1750 | 75 | 15 | 479 | 80 | galvanized | - | - | M10 | 13 | - | to the product |
|

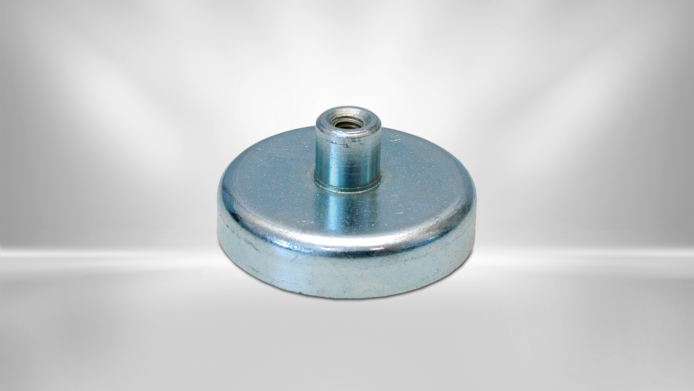

Permanent flat gripper SmCo
|
550 4049 06 | with threaded bush | SmCo | 5 | 6 | 4.5 | 2 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 08 | with threaded bush | SmCo | 11 | 8 | 4.5 | 3 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 10 | with threaded bush | SmCo | 20 | 10 | 4.5 | 4 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 13 | with threaded bush | SmCo | 40 | 13 | 4.5 | 6 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 16 | with threaded bush | SmCo | 60 | 16 | 4.5 | 7 | 200 | galvanized | 11.5 | 6 | M4 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 20 | with threaded bush | SmCo | 90 | 20 | 6 | 16 | 200 | galvanized | 13 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 25 | with threaded bush | SmCo | 150 | 25 | 7 | 28 | 200 | galvanized | 14 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4049 32 | with threaded bush | SmCo | 220 | 32 | 7 | 47 | 200 | galvanized | 15, 5 | 10 | M5 | - | - | to the product |
|

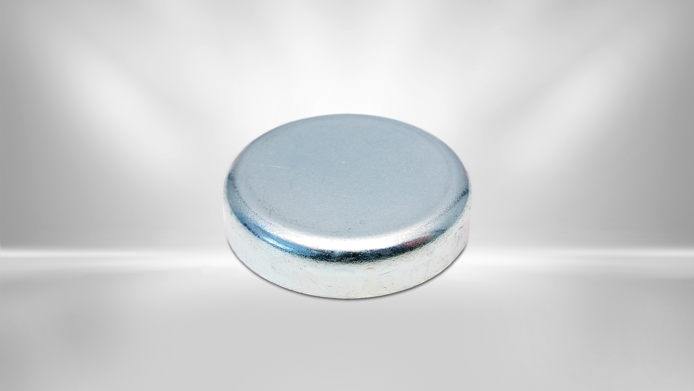

Permanent flat gripper SmCo
|
550 4050 06 | without thread | SmCo | 5 | 6 | 4.5 | 1 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 08 | without thread | SmCo | 11 | 8 | 4.5 | 2 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 10 | without thread | SmCo | 20 | 10 | 4.5 | 3 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 13 | without thread | SmCo | 40 | 13 | 4.5 | 4 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 16 | without thread | SmCo | 60 | 16 | 4.5 | 7 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 20 | without thread | SmCo | 90 | 20 | 6 | 14 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 25 | without thread | SmCo | 150 | 25 | 7 | 26 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper SmCo
|
550 4050 32 | without thread | SmCo | 220 | 32 | 7 | 42 | 200 | galvanized | - | - | - | - | - | to the product |
