Linear solenoids

Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion

Kendrion linear solenoids develop high forces with compact dimensions and are universally applicable. Kendrion offers a wide range of standard solenoids, which are mainly used in mechanical engineering, medical technology, handling automation, power engineering and aviation. They are particularly durable, reliable and low-maintenance.

Linear solenoids in open-frame technology are available in various designs as push or pull solenoids or as combi type solenoids with integrated return spring. They are characterized by short switching times and a compact design.

Bistable linear solenoids are particularly suitable for use where low energy requirements and mains-independent applications are needed. Due to their small installation space, they can be used in a variety of applications. They can be integrated as interlocks in transportable devices, door interlocks and closing devices.

The high-performance linear solenoids of the LHP series are particularly powerful and robust. The closed, compact design makes the linear solenoids particularly resistant. High-performance linear solenoids are preferably used where short switching times and high efficiency are required. The maintenance-free armature bearings on both sides enable switching cycles in the 2-digit million range. They are available in cylindrical as well as in square design.

Find the right product now!

+49 (0) 4523 402-0

sales-ics@kendrion.com

Contact now

Duty cycle	100 %
Power consumption	33 W
Stroke	20 mm
Inital force	35 N

Title ascending descending	Type ascending descending	Duty cycle (%) ascending descending	Power consumption (W) ascending descending	Stroke (mm) ascending descending	Inital force (N) ascending descending	Nominal voltage (V) ascending descending	End force (N) ascending descending	Return spring ascending descending	Length ascending descending	Width ascending descending	Height ascending descending	Design ascending descending	Protection class ascending descending	Thermal class ascending descending	Connection ascending descending	Solenoid weight (g) ascending descending	Armature weight (g) ascending descending	Special Features ascending descending	Product Line ascending descending	Details

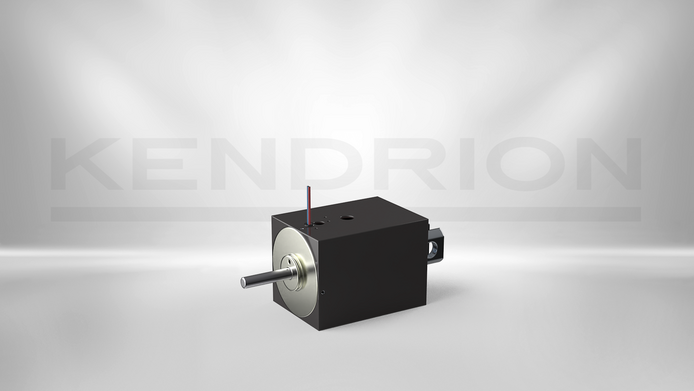

High Power Linear Solenoid V65	V65-F-24V DC 100 ED	100	33	20	35	24	200	No	65	65	90.4	No	IP 40/65	F, 155	10 cm lead	2500	480	-	High Power Linear Solenoids	to the product

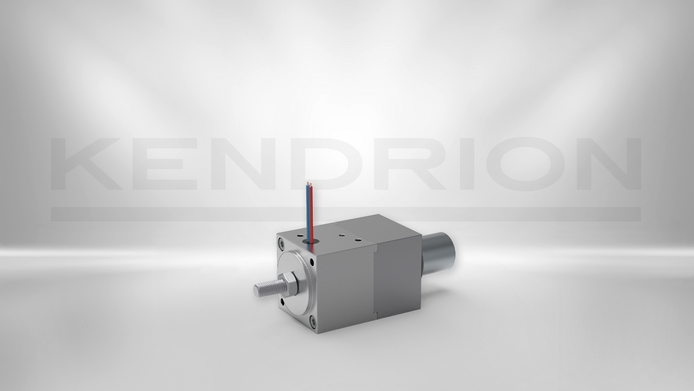

High Power Linear Solenoid LHP035	44030017	100	23.78	5	22.5	24	80	No	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	44030076	100	23.78	5	21.9	24	75	Yes	60	35	35	No	IP 54	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	44030148	100	23.78	5	22.5	24	80	Yes	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product

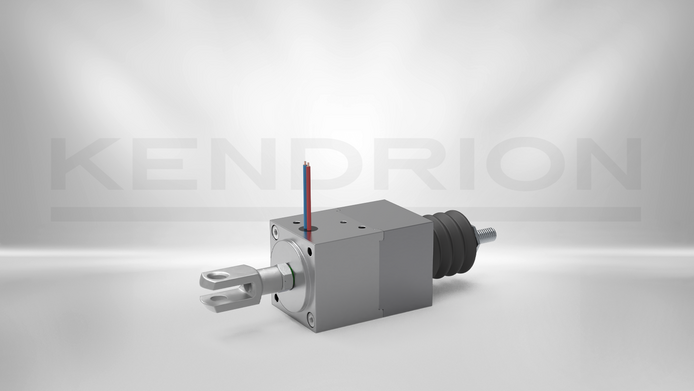

High Power Linear Solenoid LHP035	44030157	100	23.78	5	21.9	24	75	Yes	60	35	35	No	IP 54	F 155	Leads / cable	450	110	fork head	High Power Linear Solenoids	to the product

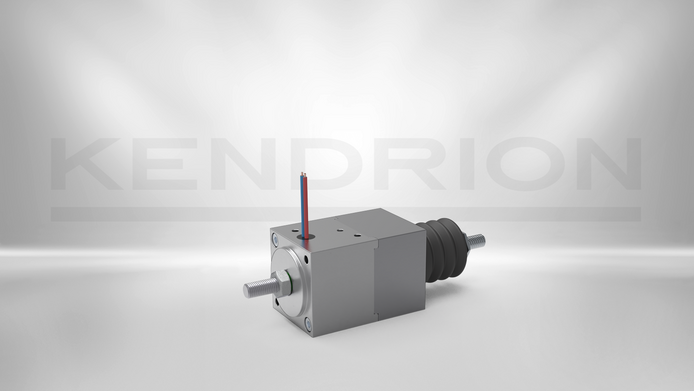

High Power Linear Solenoid LHP035	LHP0350103	100	23.78	5	21.9	24	75	Yes	60	35	35	No	IP 54	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product

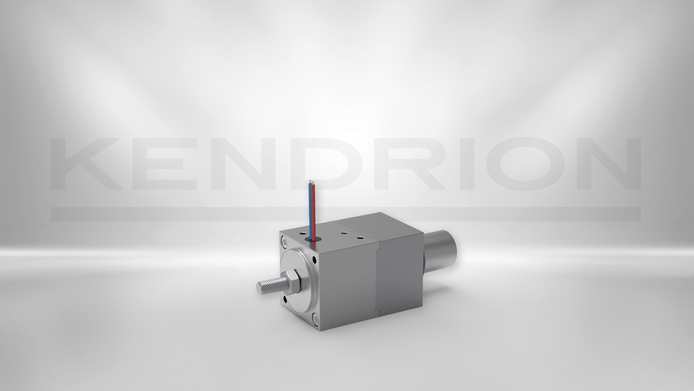

High Power Linear Solenoid LHP035	44030018	100	23.78	10	12.4	24	65	No	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product

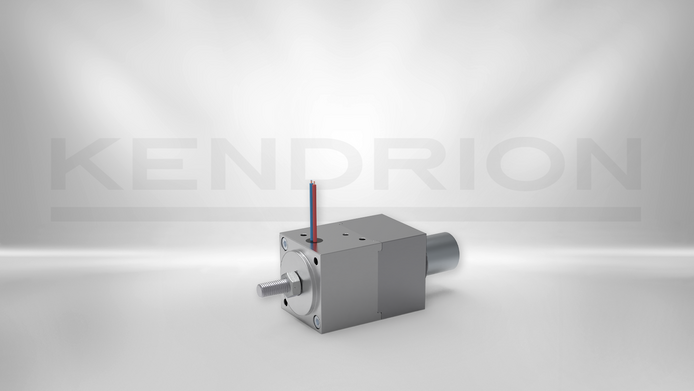

High Power Linear Solenoid LHP035	44030021	100	23.78	10	12.4	24	65	Yes	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product

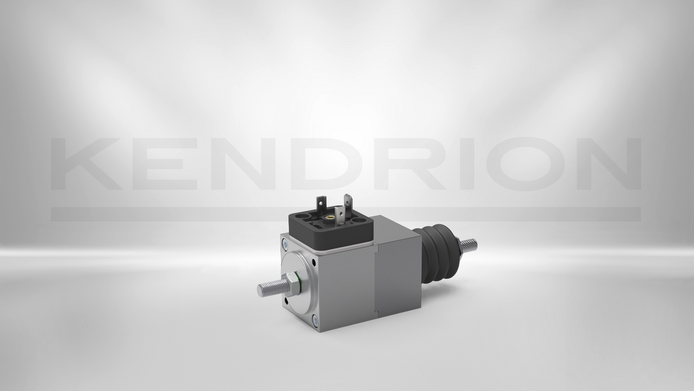

High Power Linear Solenoid LHP035	44030062	100	23.78	10	12	24	60	No	60	35	35	No	IP 54	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	44030096	100	23.78	10	12	24	60	Yes	60	35	35	No	IP 54	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	44030122	100	23.78	10	9	24	60	Yes	60	35	35	No	IP 40	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product

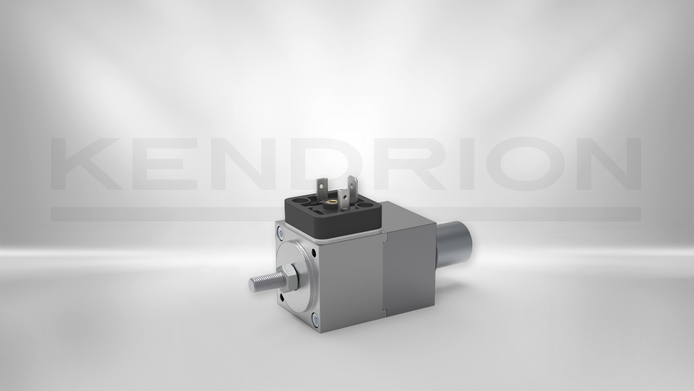

High Power Linear Solenoid LHP035	44030134	100	23.78	10	12.4	24	65	No	60	35	35	No	IP 40	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	44030029	100	14.1	15	6.8	24	45	No	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	44030064	100	23.78	15	8.7	24	55	No	60	35	35	No	IP 54	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product

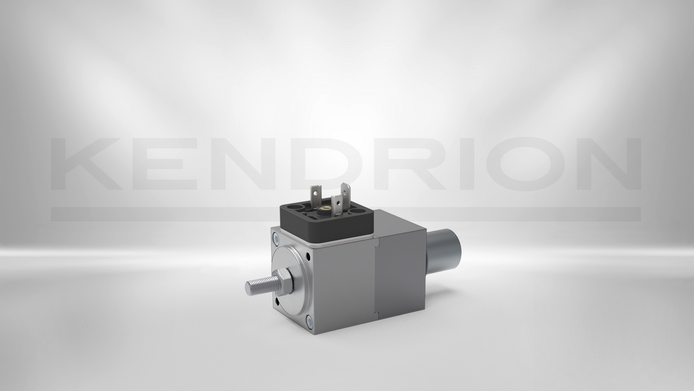

High Power Linear Solenoid LHP035	LHP0350016	100	23.78	15	9	24	60	No	60	35	35	No	IP 40	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHP035	LHP0350218	100	14.1	15	6.8	24	45	Yes	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product

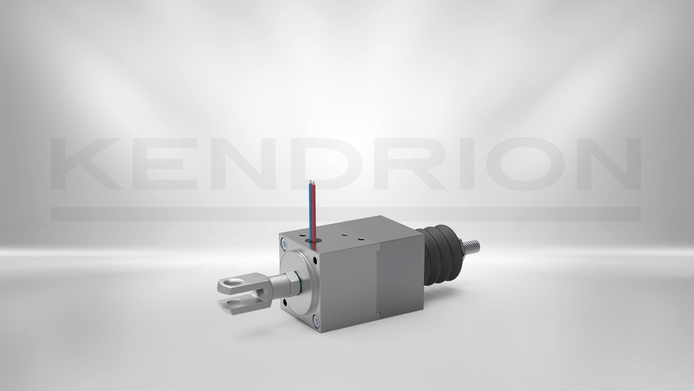

High Power Linear Solenoid LHP035	44030033	100	23.78	20	7.2	24	40	Yes	60	35	35	No	IP 54	F 155	Leads / cable	450	110	fork head	High Power Linear Solenoids	to the product

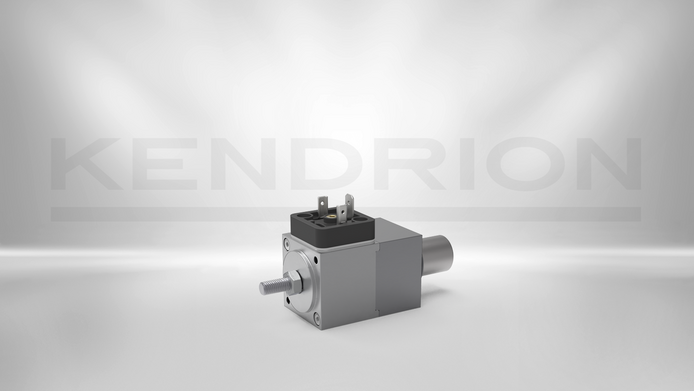

High Power Linear Solenoid LHP035	44030066	100	23.78	20	7.4	24	45	Yes	60	35	35	No	IP 40	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product

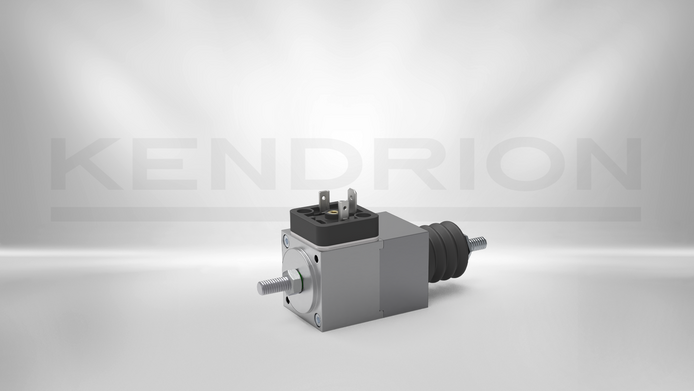

High Power Linear Solenoid LHP035	44030072	100	23.78	20	7.2	24	40	Yes	60	35	35	No	IP 54	F 155	Plug	450	110	-	High Power Linear Solenoids	to the product

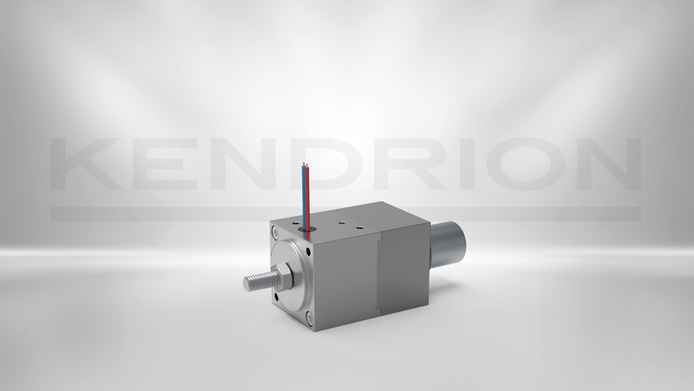

High Power Linear Solenoid LHP035	44030141	100	23.78	20	7.4	24	45	No	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product

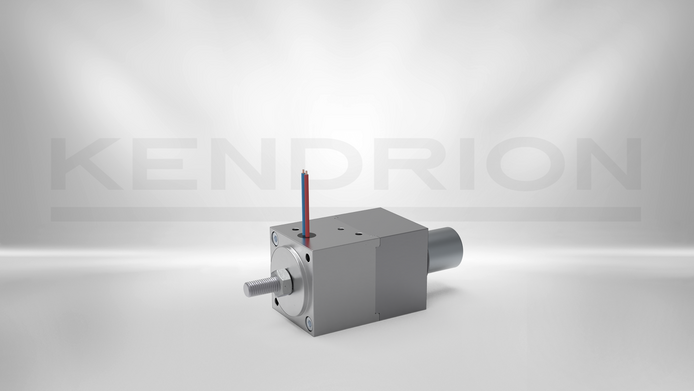

High Power Linear Solenoid LHP035	LHP0350010	100	23.78	20	7.4	24	45	Yes	60	35	35	No	IP 40	F 155	Leads / cable	450	110	-	High Power Linear Solenoids	to the product
