Linear solenoids

Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion

Kendrion linear solenoids develop high forces with compact dimensions and are universally applicable. Kendrion offers a wide range of standard solenoids, which are mainly used in mechanical engineering, medical technology, handling automation, power engineering and aviation. They are particularly durable, reliable and low-maintenance.

Linear solenoids in open-frame technology are available in various designs as push or pull solenoids or as combi type solenoids with integrated return spring. They are characterized by short switching times and a compact design.

Bistable linear solenoids are particularly suitable for use where low energy requirements and mains-independent applications are needed. Due to their small installation space, they can be used in a variety of applications. They can be integrated as interlocks in transportable devices, door interlocks and closing devices.

The high-performance linear solenoids of the LHP series are particularly powerful and robust. The closed, compact design makes the linear solenoids particularly resistant. High-performance linear solenoids are preferably used where short switching times and high efficiency are required. The maintenance-free armature bearings on both sides enable switching cycles in the 2-digit million range. They are available in cylindrical as well as in square design.

Need some help? Try our new Linear Solenoid Product Guide.

Start Product Guide

Find the right product now!

+49 (0) 4523 402-0

sales@kendrion.com

Contact now

Duty cycle	100 %
Power consumption	51.9 W
Stroke	25 mm
Inital force	70 N

Title ascending descending	Type ascending descending	Duty cycle (%) ascending descending	Power consumption (W) ascending descending	Stroke (mm) ascending descending	Inital force (N) ascending descending	Nominal voltage (V) ascending descending	End force (N) ascending descending	Return spring ascending descending	Length ascending descending	Width ascending descending	Height ascending descending	Design ascending descending	Protection class ascending descending	Thermal class ascending descending	Connection ascending descending	Solenoid weight (g) ascending descending	Armature weight (g) ascending descending	Special Features ascending descending	Product Line ascending descending	Details

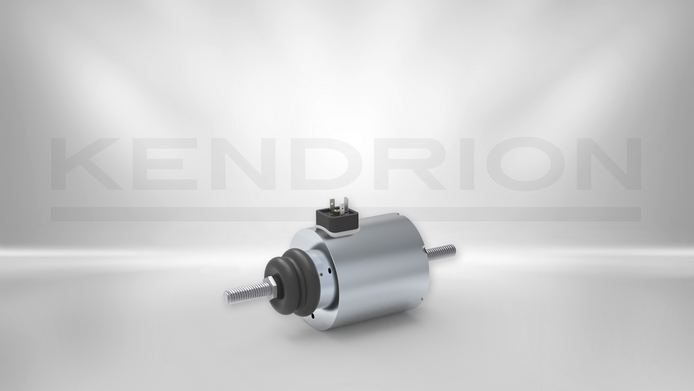

High Power Linear Solenoid LHS090	LHS0900009	100	51.9	25	70	24	230	No	111	90	90	No	IP 54	F 155	Plug	4600	950	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHS100	LHS1000003	100	58	30	70	24	530	No	130	100	100	No	IP 54	F 155	Plug	6600	1200	-	High Power Linear Solenoids	to the product

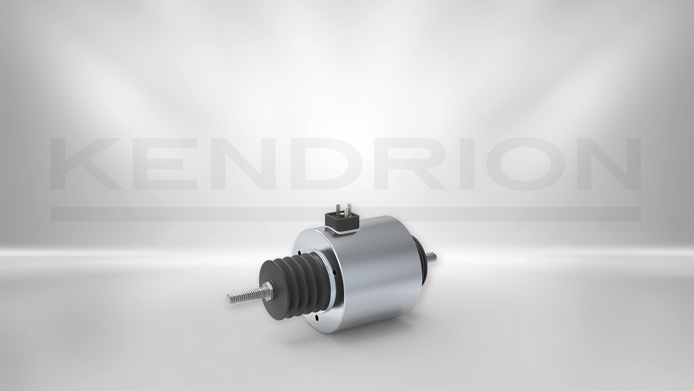

High Power Linear Solenoid LHS115	LHS1150010	100	52.6	30	100	24	450	No	118	115	115	No	IP 54	F 155	Plug	7000	1100	-	High Power Linear Solenoids	to the product

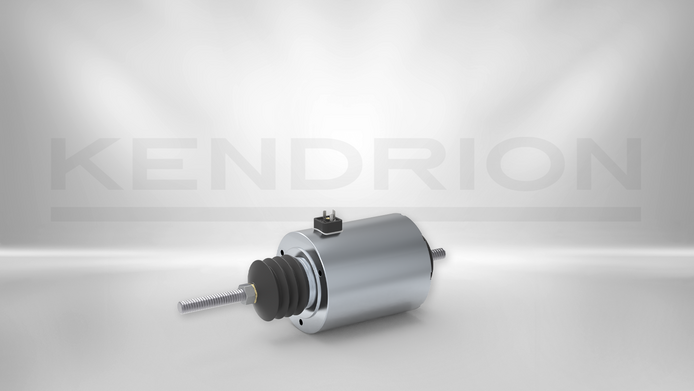

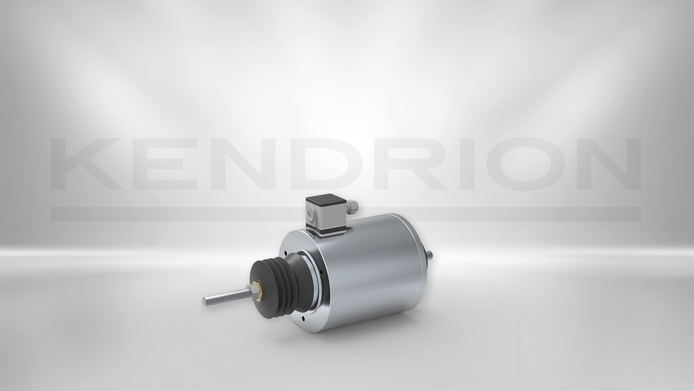

High Power Linear Solenoid LHS135	LHS1350010	100	81.1	40	170	24	500	No	184	135	135	No	IP 54	F 155	Plug	14000	3000	-	High Power Linear Solenoids	to the product
High Power Linear Solenoid LHS170	LHS1700005	100	132	50	280	24	1250	No	212	170	170	No	IP 54	F 155	Terminal box with/without cable	19000	4300	-	High Power Linear Solenoids	to the product

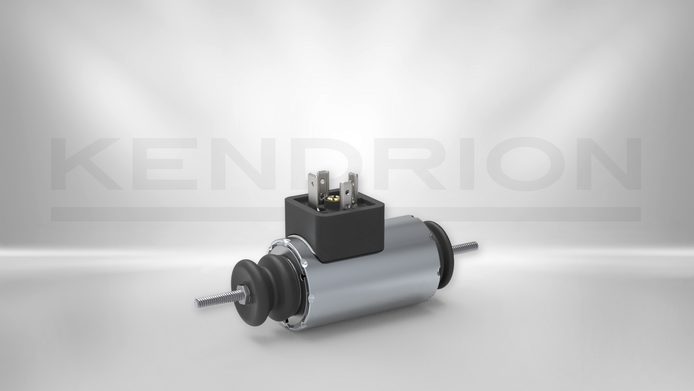

Reversible Linear Solenoid LHR035	LHR0350001	100	12	7	6	24	18	No	66	35	35	No	IP 54	F 155	Plug	350	100	-	Reversible Linear Solenoids	to the product

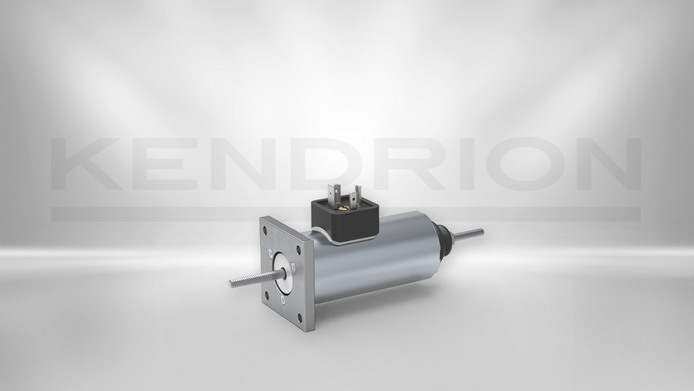

Reversible Linear Solenoid LHR040	1192438	100	19	8	10	24	25	No	94	40	40	No	IP 54	F 155	Plug	700	150	-	Reversible Linear Solenoids	to the product

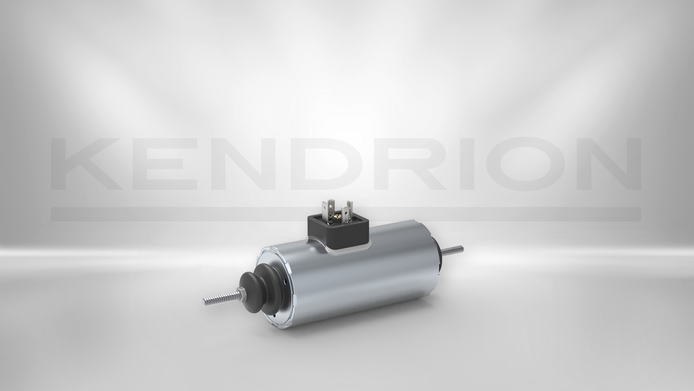

Reversible Linear Solenoid LHR050	1192541	100	18	10	16	24	75	No	112	50	50	No	IP 54	F 155	Plug	1300	250	-	Reversible Linear Solenoids	to the product

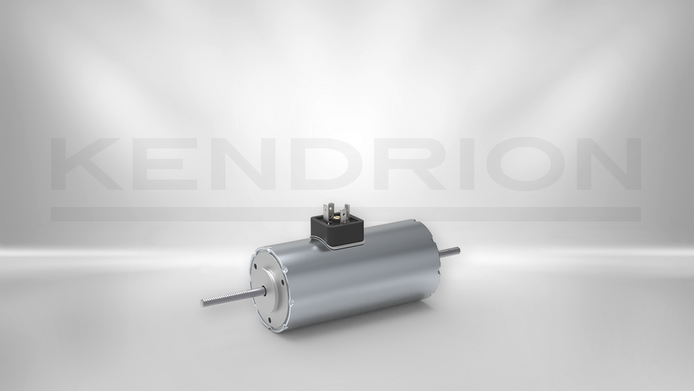

Reversible Linear Solenoid LHR060	1192639	100	28	12	32	24	150	No	132	60	60	No	IP 20	F 155	Plug	2600	400	-	Reversible Linear Solenoids	to the product

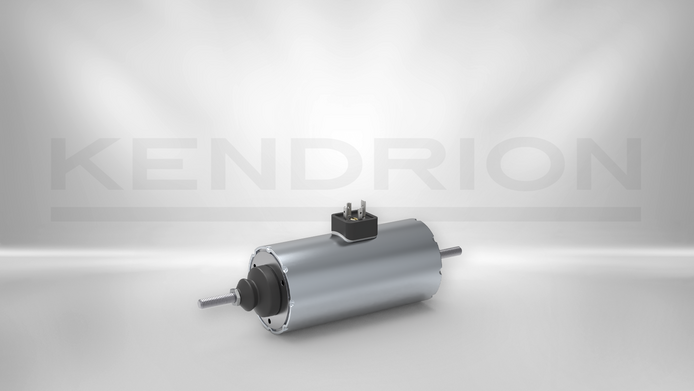

Reversible Linear Solenoid LHR070	1192735	100	34	15	37	24	240	No	152	70	70	No	IP 54	F 155	Plug	3700	650	-	Reversible Linear Solenoids	to the product
Reversible Linear Solenoid LHR080	LHR0800003	100	45	20	55	24	310	No	158	80	80	No	IP 54	F 155	Plug	5200	900	-	Reversible Linear Solenoids	to the product

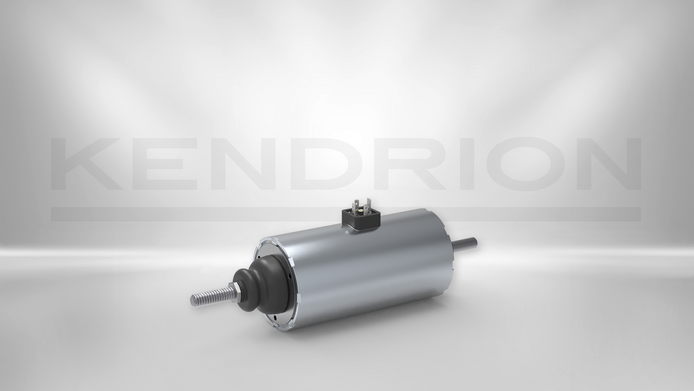

Reversible Linear Solenoid LHR090	LHR0900001	100	52	25	73	24	270	No	320.9	90	90	No	IP 54	F 155	Plug	7600	1400	-	Reversible Linear Solenoids	to the product

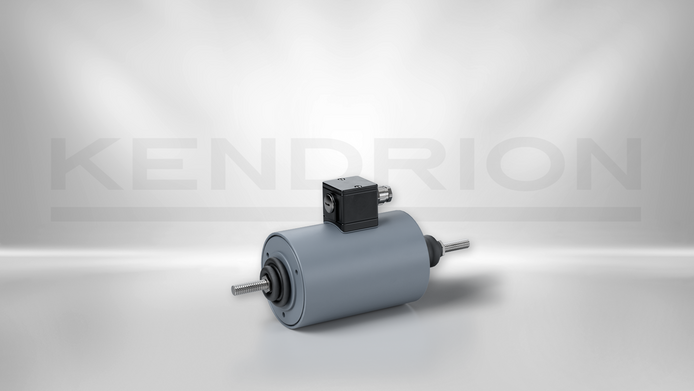

Reversible Linear Solenoid LHR115	LHR1150001	100	50	30	100	24	450	No	185.4	115	115	No	IP 54	F 155	Plug	12000	1600	-	Reversible Linear Solenoids	to the product

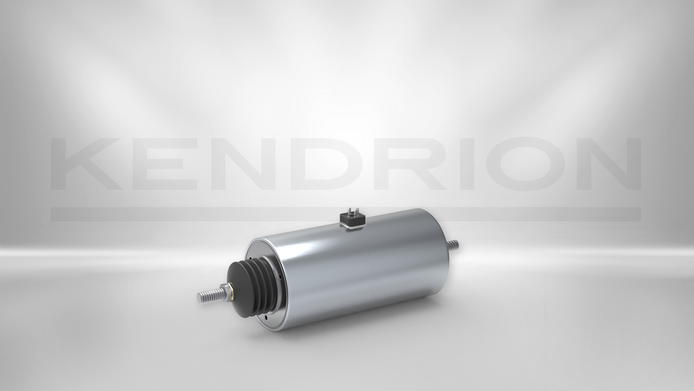

Reversible Linear Solenoid LHR135	LHR1350006	100	81.1	40	170	24	570	No	291	135	135	No	IP 54	F 155	Plug	18500	2500	-	Reversible Linear Solenoids	to the product

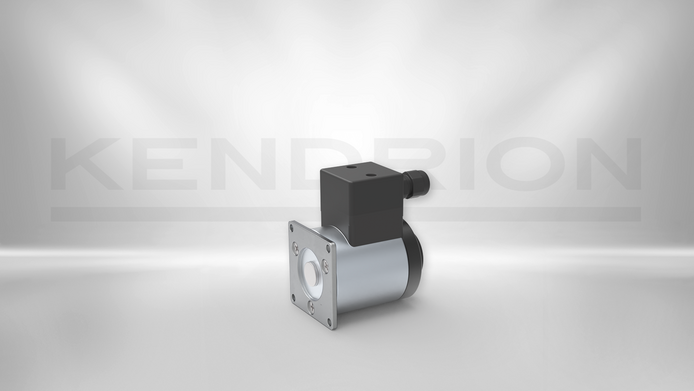

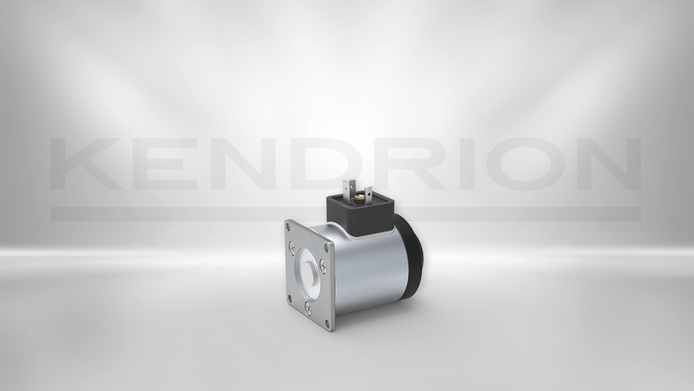

Valve Actuator D50	41050019	100	15	4	40	24	75	No	59	50	50	No	IP 40	B 130	Terminal box with/without cable	600	80	Flange on the pressure side	Valve Actuator Solenoid	to the product
Valve Actuator D51	41050023	100	16	4	40	24	75	No	58	50	50	No	IP 65	B 130	Plug	600	80	Flange on the pressure side	Valve Actuator Solenoid	to the product

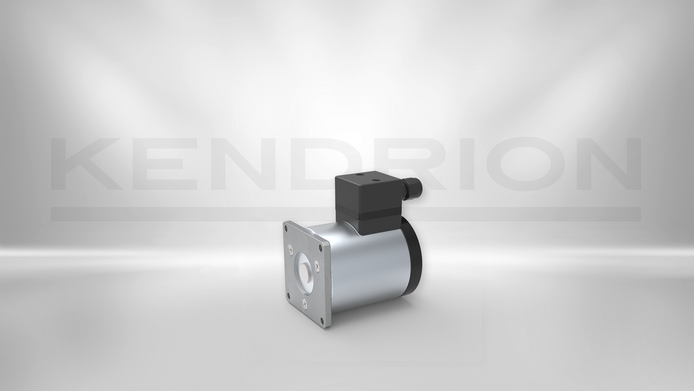

Valve Actuator D62	41060043	100	18.3	4	75	24	175	No	78	62	62	No	IP 40	B 130	Terminal box with/without cable	1400	100	Flange on the pressure side	Valve Actuator Solenoid	to the product

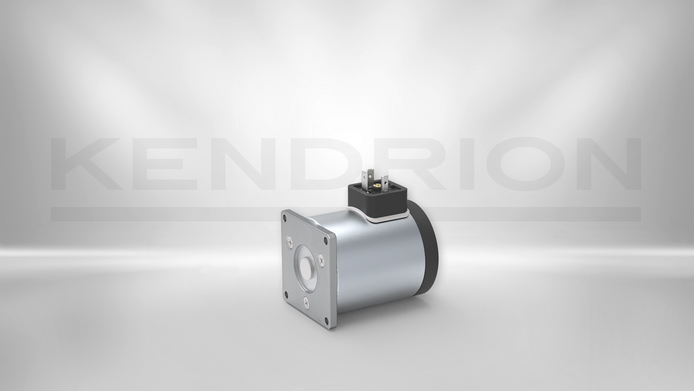

Valve Actuator D63	50013732	100	18.3	4	75	24	175	No	78	62	62	No	IP 40	B 130	Plug	1400	100	Flange on the pressure side	Valve Actuator Solenoid	to the product

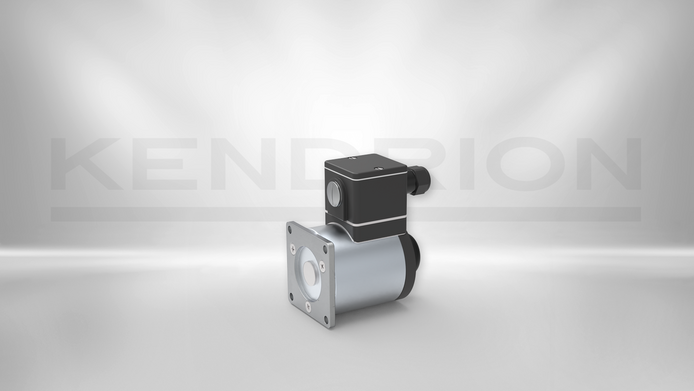

Valve Actuator D72	41070031	100	25	6	86	24	300	No	80	72	72	No	IP 40	B 130	Terminal box with/without cable	1900	200	Flange on the pressure side	Valve Actuator Solenoid	to the product

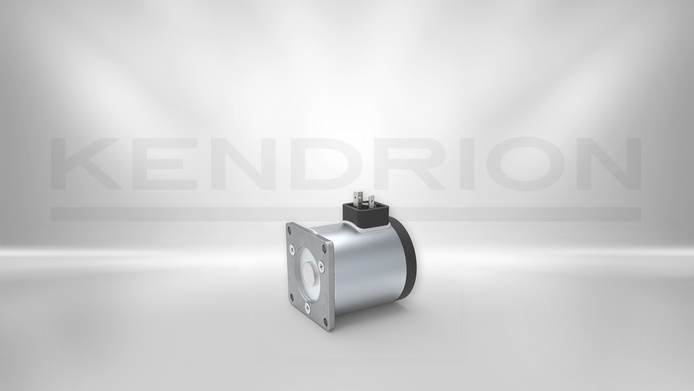

Valve Actuator D73	41070030	100	23.2	6	100	24	300	No	80	72	72	No	IP 40	B 130	Plug	1900	200	Flange on the pressure side	Valve Actuator Solenoid	to the product

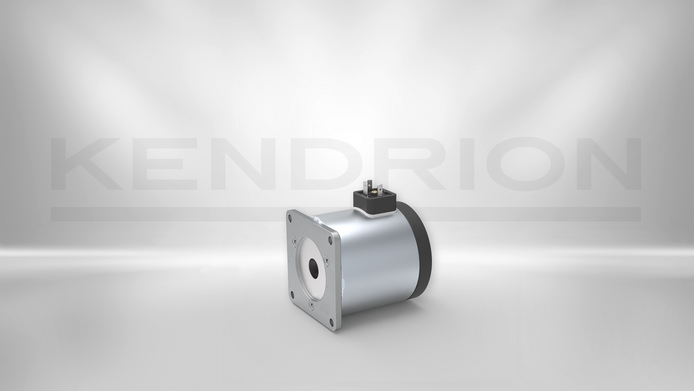

Valve Actuator D89	41090052	100	28.3	8	125	24	375	No	95	88	88	No	IP 40	B 130	Plug	3250	400	Flange on the pressure side	Valve Actuator Solenoid	to the product
