Pneumatic connection technology
Secure connection for tubing

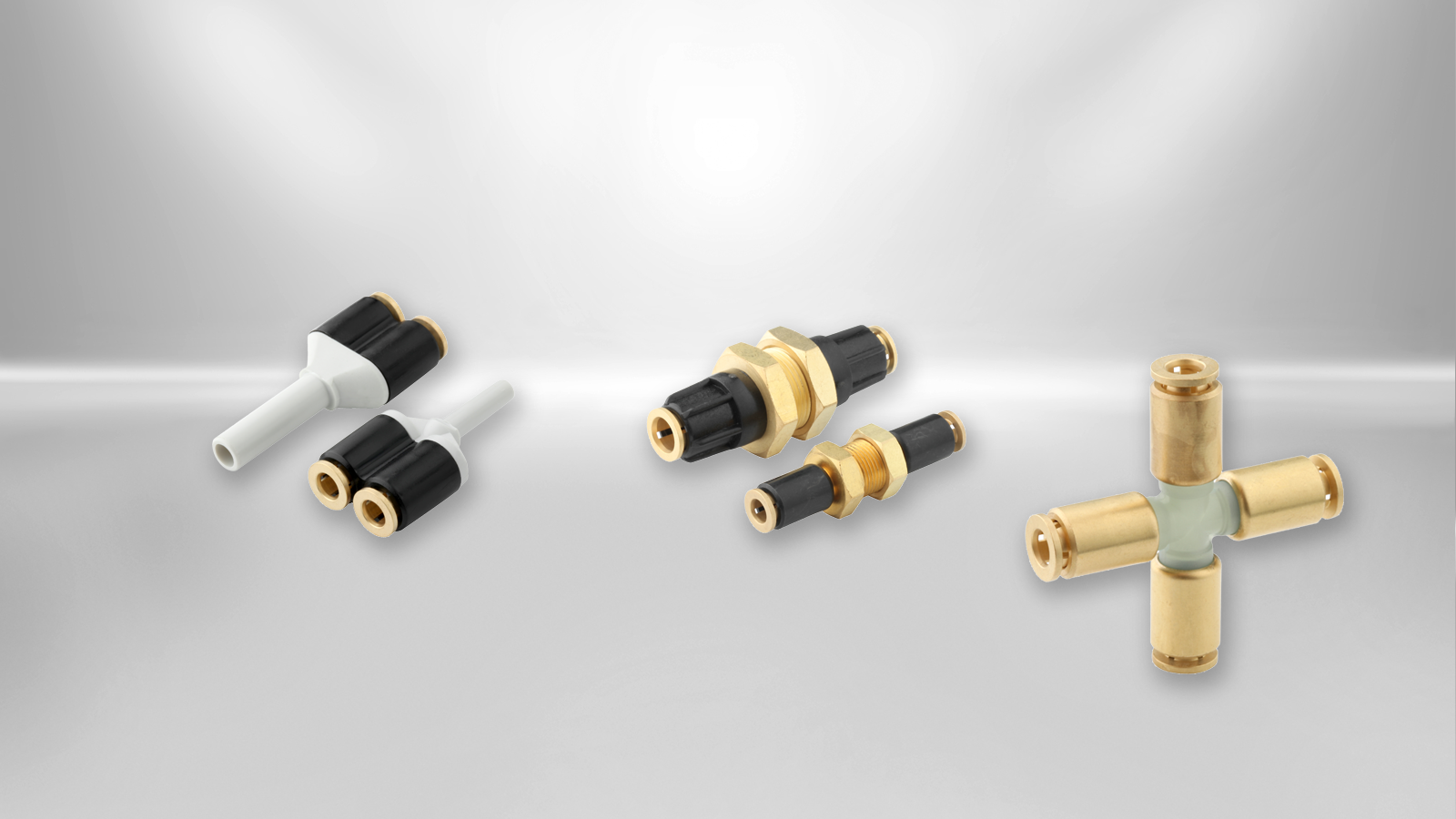

Kendrion offers various quality tube couplings, tube nipples and push-in fittings for the secure connection of tubing and a reduced risk of leakage. This way you can easily connect valve manifolds and other pneumatic components with the system surrounding. Blanking plugs, silencer and reductions complete the range of our connection technology.
Versions with different sealing and housing materials or special geometries may already be available on request.
Kendrion's pneumatic connection technology was formerly known under the name Kuhnke.
Products
(33)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Product type
ascending
descending
|
Identification number
ascending
descending
|
Pneumatic connection 2
ascending
descending
|
Pneumatic connection 1
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|
|
Push-In Fitting (tube 4x1 or 4x0.65)
|
52.010 | Straight | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Push-In Fitting (tube 4x1 or 4x0.65)
|
52.011 | Straight | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Reduction (tube 6x1 to 4x1)
|
52.015 | Straight | Push-in fitting | - | Tube 6 x 1 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Double Coupling (tube 4x1 or 4x0.65)
|
52.020 | Straight | Push-in fitting | - | Tube 4 x 1 (4 x 0.65) | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Y-Coupling (tube 4x1 or 4x0.65)
|
52.025 | Y | Push-in fitting | - | Tube 4 x 1 (4 x 0.65) | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Bulkhead Coupling (tube 4x1 or 4x0.65)
|
52.030 | Straight | Push-in fitting | - | Tube 4 x 1 (4 x 0.65) | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Elbow Coupling (tube 4x1 or 4x0.65)
|
52.040 | L | Push-in fitting | - | Tube 4 x 1 (4 x 0.65) | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
T-Coupling (tube 4x1 or 4x0.65)
|
52.050 | T | Push-in fitting | - | Tube 4 x 1 (4 x 0.65) | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
T-Banjo (tube 4x1 or 4x0.65)
|
52.055 | T | Push-in fitting | - | G1/8 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Cross Coupling (tube 4x1 or 4x0.65)
|
52.060 | Coupling | Push-in fitting | - | Tube 4 x 1 (4 x 0.65) | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
L-Banjo, moveable (tube 4x1 or 4x0.65)
|
52.070 | L | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
T-Banjo, moveable (tube 4x1 or 4x0.65)
|
52.080 | T | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
L-Banjo (tube 4x1 or 4x0.65)
|
52.090 | L | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
L-Banjo (tube 4x1 or 4x0.65)
|
52.095 | L | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
T-Banjo (tube 4x1 or 4x0.65)
|
52.100 | T | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
T-Banjo (tube 4x1 or 4x0.65)
|
52.105 | T | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
T-Coupling (tube 4x1 or 4x0.65)
|
52.110 | X | Push-in fitting | - | M5 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Silencer
|
52.115 | Silencer | Push-in fitting | - | - | for fitting 4 x 1 (4 x 0.65) | to the product |
|
|
Push-In Fitting (tube 4x1 or 4x0.65)
|
52.170 | Straight | Push-in fitting | - | G1/8 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
L-Banjo (tube 4x1 or 4x0.65)
|
52.180 | L | Push-in fitting | - | G1/8 | Tube 4 x 1 (4 x 0.65) | to the product |
|
|
Dummy Plugs (diameter 4mm)
|
52.185 | Dummy plug | Push-in fitting | 30089 | - | for fitting 4 x 1 (4 x 0.65) | to the product |
