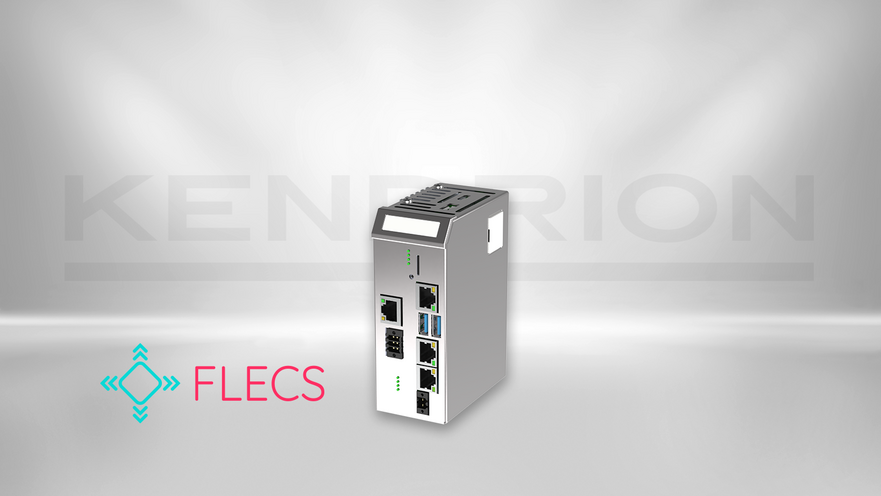

FIO Controller 328 APP
694 322 28 100
The robust FIO Controller 328 with passive cooling is equipped with a powerful Raspberry Pi CM 4. The generous memory capacity, including remanent data, is ideal for CODESYS PLC applications. The USB 3.0 interfaces allow the use of removable storage media or external peripherals. Data exchange with other systems can take place via the integrated Industrial Ethernet interfaces such as EtherCAT, Modbus and serial via CAN and RS-485. Alternatively, OPC UA is available as an IOT protocol. The controller can be flexibly expanded with EtherCAT I/O modules from the Kuhnke FIO series via the E-bus connection on the side. Further decentralised EtherCAT devices are connected directly via the EtherCAT OUT connection on the Controller 328.
The device is versatile and can be used as an automation controller or micro edge computer. The device can be easily expanded with automation apps from the FLECS Marketplace.
- Powerful CODESYS PLC (motion and robotics...)
- Robust hardware with powerful Quad Core ARM-A72
- Direct expansion with FIO I/O modules via E-bus (EtherCAT)
- EtherCAT OUT (RJ 45) for decentralised EtherCAT devices, CANopen, RS-485
-
Prepared for automation apps from the FLECS Marketplace
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS PLC, Micro Edge Controller, IOT Controller |
| Function | Embedded PC with Soft PLC |
| Model | Control cabinet modul |
| Product status | In preparation |
| Processor | Quad -core ARM Cortex A72 (1,5 GHz) |
| Operating system | RT Linux |
| Software | CODESYS V3 and prepared for automation apps from the FLECS Marketplace |
| Software options | Target Visu, WebVisu, SoftMotion (CNC-Robotics) |
| Main memory | 2GB DDR4L |
| Non-volatile memory | 128 kByte |
| Data memory | µSD(HC)-Card Slot bis 32 GByte |
| Drive | eMMC Speicher 8 GByte |
| Interfaces | 3 x LAN, 2 x USB 3.0, EtherCAT out, EtherCAT-E-Bus, CANopen, RS-485 |
| Digital I/Os (integrated) | - |
| Field bus interfaces | EtherCAT, Modbus RTU und TCP, CANopen, OPC UA |
| Modular expansion | Expandable with FIO I/O modules |
| Housing material | Stainless steel, aluminium heat sink |
| Dimensions (W x H x D) | 45 x 125 x 90 mm |
| IP-Protection Class | IP20 |
| Supply voltage | 12/24 V DC, Powerfail functions, 1 s mini UPS |
