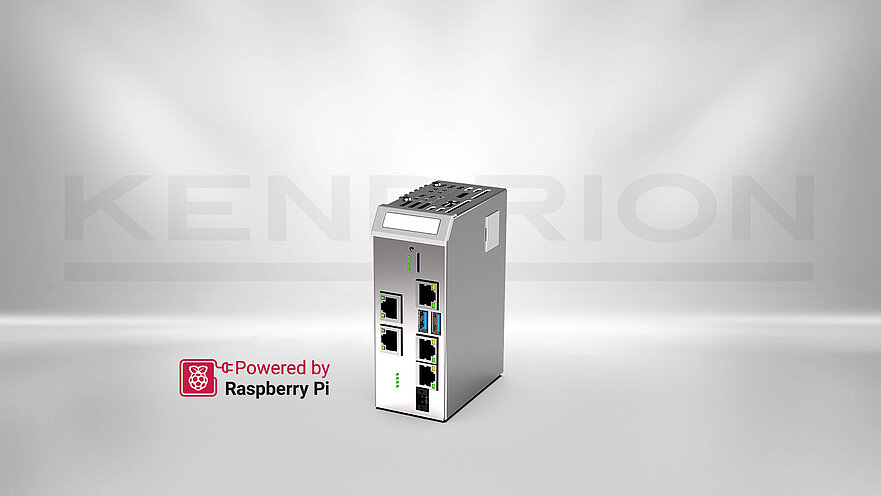

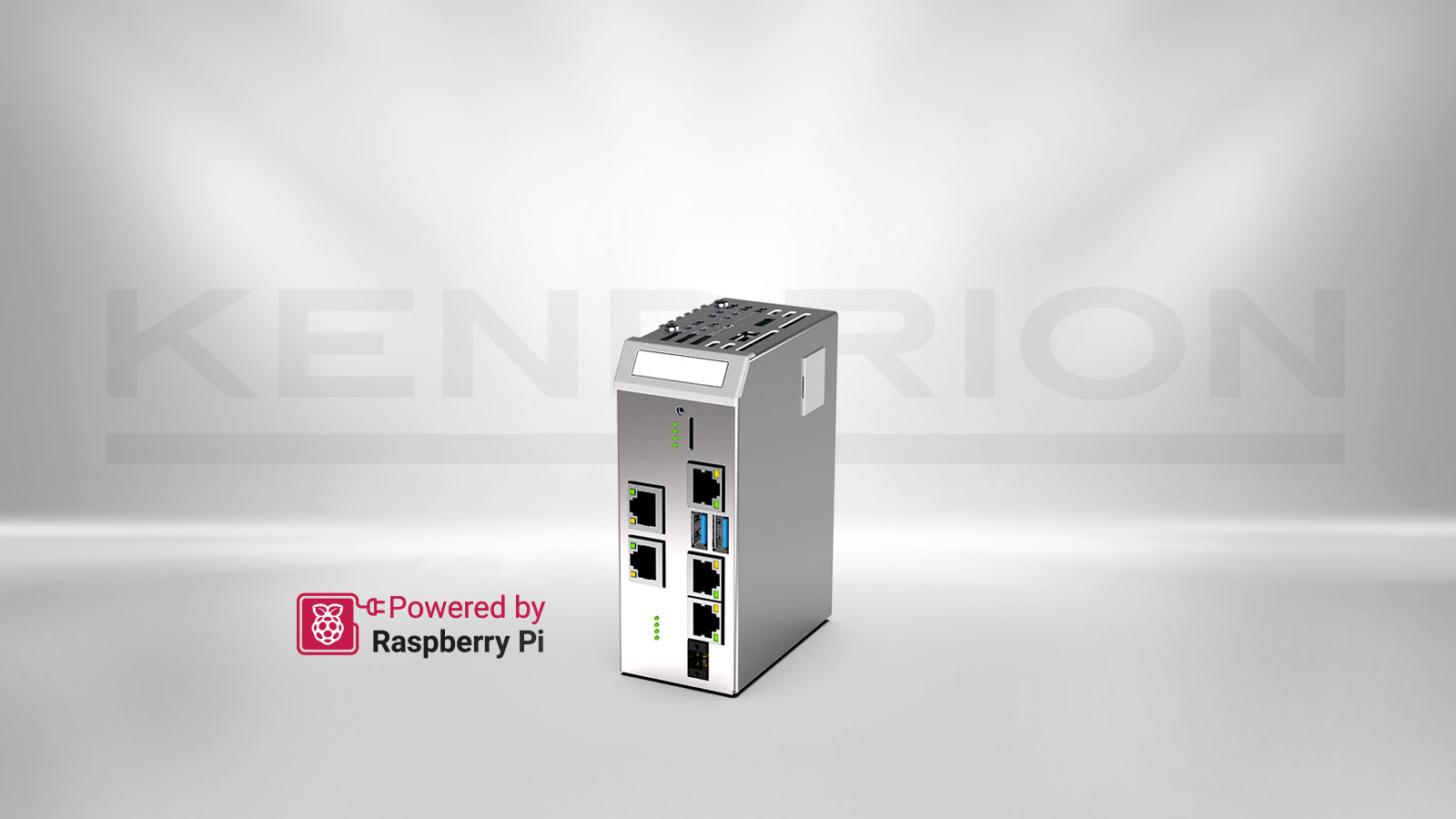

FIO Controller 328 WV SM Ethernet
694 631 28 000
play
The robust FIO Controller 328 with passive cooling is equipped with a powerful Raspberry Pi CM 4. The generous memory capacity, including remanent data, is ideal for CODESYS PLC applications. The USB 3.0 interfaces allow the use of removable storage media or external peripherals. Data can be exchanged with other systems via the integrated Industrial Ethernet interfaces such as EtherCAT or Modbus TCP. Alternatively, OPC UA is available as an IOT protocol.
The controller can be flexibly expanded with EtherCAT I/O modules from the Kuhnke FIO series via the E-bus connection on the side. Additional decentralised EtherCAT devices are linked directly to the 328 controller via the EtherCAT OUT connection.
- Powerful CODESYS PLC (motion and robotics...)
- Robust hardware with powerful Quad Core ARM-A72
- Direct expansion with FIO I/O modules via E-bus (EtherCAT)
- EtherCAT OUT (RJ 45) for decentralised EtherCAT devices
...
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS PLC |
| Function | Modular PLC |
| Model | Control cabinet modul |
| Product status | In preparation |
| Processor | Quad -core ARM Cortex A72 (1,5 GHz) |
| Operating system | RT Linux |
| Software | CODESYS V3 |
| Software options | Target Visu, WebVisu, SoftMotion (CNC-Robotics) |
| Main memory | 2GB DDR4L |
| Non-volatile memory | 128 kByte |
| Data memory | µSD(HC)-Card Slot bis 32 GByte |
| Drive | eMMC Speicher 8 GByte |
| Interfaces | LAN, USB 3.0, EtherCAT out, EtherCAT-E-Bus |
| Digital I/Os (integrated) | - |
| Field bus interfaces | EtherCAT, Modbus RTU und TCP |
| Modular expansion | Expandable with FIO I/O modules |
| Housing material | Stainless steel, aluminium heat sink |
| Dimensions (W x H x D) | 45 x 125 x 90 mm |
| IP-Protection Class | IP20 |
| Supply voltage | 12/24 V DC, Powerfail functions, 1 s mini UPS |
