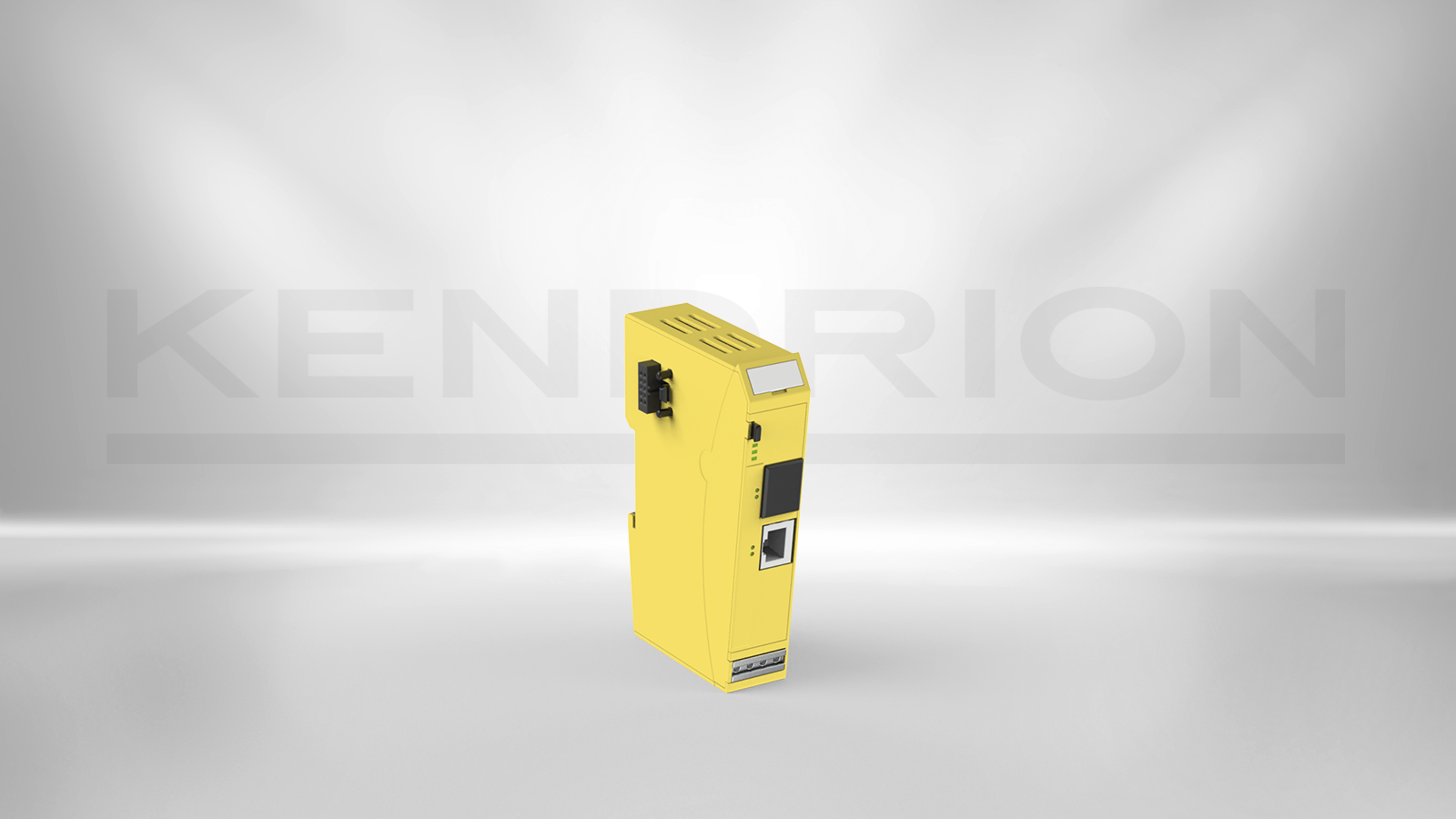

Kuhnke FIO Safety PLC EXT
694 332 00
Kuhnke FIO Safety PLC EXT is a module intended to be used in EtherCAT® networks with a head module. Acting as the FSoE master, it is able to address any FSoE slave including safety I/Os, motion controllers, valve islands and other FSoE equipment. The Safety PLC EXT meets the requirements of IEC 61508 SIL3 and DIN EN ISO 13849 PLe. CODESYS version 3.5 SP8 or higher is used for programming. The CODESYS safety function modules have been certified previously, thus considerably reducing the efforts of developing, verifying and approving a safety application. The main controller's CODESYS environment and the EtherCAT link are used for programming.
-
The Safety PLC meets the requirements of IEC 61508 SIL3 and DIN EN ISO 13849 PLe.
-
CODESYS version 3.5 SP8 or higher is used for programming.
-
SD-card for easy device exchange (service)
-
Integrated floating point unit (FPU)
-
The main controller's CODESYS environment and the EtherCAT link are used for programming the Safety PLC as well.
Technical details
| Description | Value |
|---|---|
| Function | functional safety PLC with integrated EtherCAT-Out |
| Model | Control cabinet module |
| Product status | Standard product |
| Field bus interfaces | EtherCAT LVDS / Safety over EtherCAT (FSoE) / EtherCAT out |
| Software | CODESYS V3.5 SP5 or higher with integrated safety function modules |
| Status indication | Status LEDs (EtherCAT, Safety, Power) |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | Supply via E-bus |
| Operating temperature | 0 ... +55 |
| Immunity | Zone B according to EN 61131-8 |
| Certifications | CE, UL |
