Optical shutter with advanced functions

High durability, position, and temperature detection

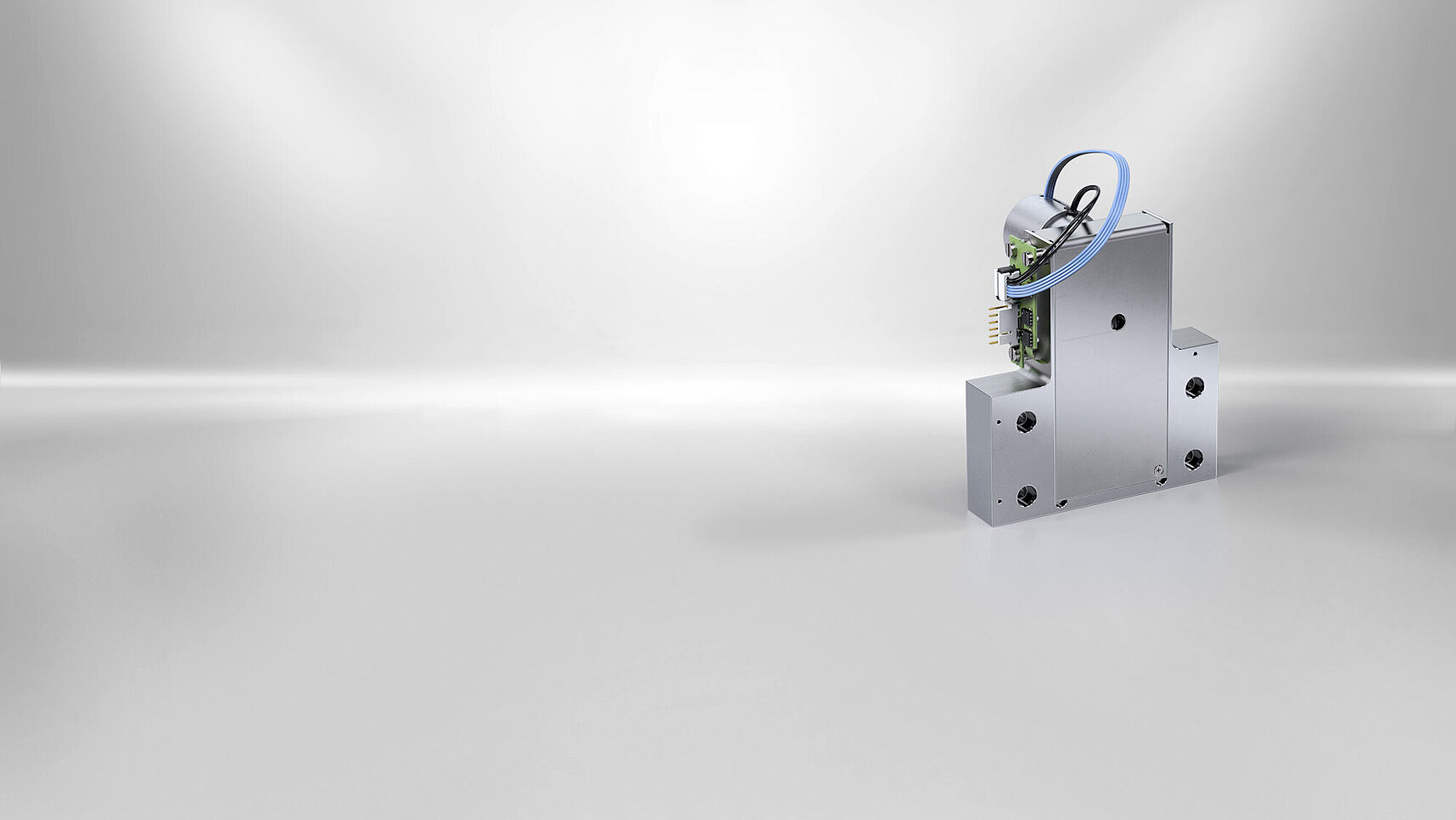

Advanced shutter systems are used in many technical processes in medical technology, analytics, product labeling, and distance measurement. The KENDRION DS200x8n laser shutter combines high mechanical durability with the ability to detect position and mirror temperature.

The shutter, which is made entirely of aluminum, impresses with its functions. It has an extremely fast closing time of 15 ms. When the shutter is closed, the laser beam is absorbed in the light trap. The reflection mirrors are available for a wide range of wavelengths. The reflectivity of the mirrors is redundantly temperature monitored. Final assembly is carried out under cleanroom conditions. In combination with other features, such as end position detection with light barriers, redundant temperature monitoring of the mirror, sealing of the aperture in case of power failure, purge air connection and/or heat dissipation by additional water cooling, our optical shutters are a unique solution suitable for a wide range of applications.

As a manufacturer of shutters and rotary solenoids for laser applications, KENDRION has developed a wealth of experience and individual solutions for customer applications.





Benefits at a glance

  • Photocell end position detection
  • Redundant temperature monitoring of the mirror
  • Closing of the aperture in the case of power failure
  • Low emission materials
  • Laser beam trap
  • Connection for flushing air
  • Optional heat absorption with additional water cooling

Technical Data

Parameter Value
Aperture 6 mm, other diameters on request
Laser power up to 100 W with additional water cooling
Wave length 266 nm, 355 nm, 532 nm, 1064 nm, other wave lengths on request
Switching frequency up to 5Hz
Closing time <15 ms
Beam diameter 0.8 - 2 mm, other diameters on request
Mechanical durability 10 Mio. switching cycles
Sensors Photocell positioning, temperature monitoring with NTC, TTL output
Case Aluminium carrier, dimensions approx. 100 x 60 x 100 mm
Mounting Mounting holes, exact positioning on request
Power supply 12 V DC pull voltage, 6 V DC holding voltage, other voltages on request
Power requirements approx. 4 W (@ 6 V DC)
Storage temperature -25 °C to +60 °C

Datasheet Download

Datasheets
Datasheet | Advanced optical shutter
