Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Thread
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Diameter counter bore (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Permanent flat gripper HF
|
550 4038 013 | without thread | hard ferrite | 10 | 13 | 4.5 | 3 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 016 | without thread | hard ferrite | 18 | 16 | 4.5 | 5 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 020 | without thread | hard ferrite | 30 | 20 | 6 | 10 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 025 | without thread | hard ferrite | 40 | 25 | 7 | 18 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 032 | without thread | hard ferrite | 80 | 32 | 7 | 29 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 036 | without thread | hard ferrite | 100 | 36 | 7.7 | 39 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 040 | without thread | hard ferrite | 125 | 40 | 8 | 55 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 047 | without thread | hard ferrite | 180 | 47 | 9 | 84 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 050 | without thread | hard ferrite | 220 | 50 | 10 | 102 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 057 | without thread | hard ferrite | 280 | 57 | 10.5 | 141 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 063 | without thread | hard ferrite | 350 | 63 | 14 | 226 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 080 | without thread | hard ferrite | 600 | 80 | 18 | 468 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 100 | without thread | hard ferrite | 900 | 100 | 22 | 915 | 200 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4038 125 | without thread | hard ferrite | 1300 | 125 | 26 | 1680 | 200 | galvanized | - | - | - | - | - | to the product |
|
Permanent flat gripper HF
|

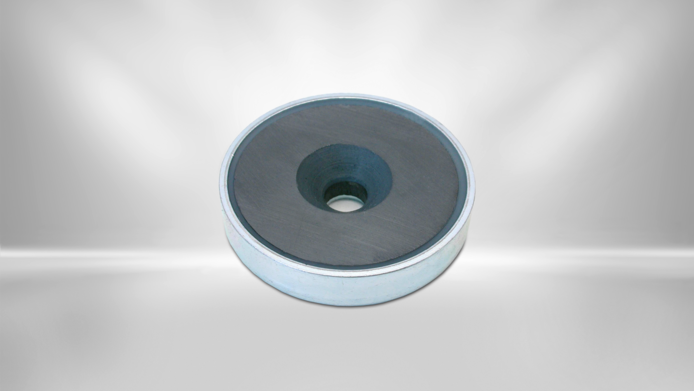

550 4039 16 | with bore and counter bore | hard ferrite | 14 | 16 | 4.5 | 4 | 200 | galvanized | - | - | - | 3.5 | 6.5 | to the product |
|
|
Permanent flat gripper HF
|
550 4039 20 | with bore and counter bore | hard ferrite | 27 | 20 | 6 | 9 | 200 | galvanized | - | - | - | 4.2 | 9.4 | to the product |
|
|
Permanent flat gripper HF
|
550 4039 25 | with bore and counter bore | hard ferrite | 36 | 25 | 7 | 17 | 200 | galvanized | - | - | - | 5.5 | 11.5 | to the product |
|
|
Permanent flat gripper HF
|
550 4039 32 | with bore and counter bore | hard ferrite | 72 | 32 | 7 | 27 | 200 | galvanized | - | - | - | 5.5 | 11.5 | to the product |
|
|
Permanent flat gripper HF
|
550 4039 40 | with bore and counter bore | hard ferrite | 90 | 40 | 8 | 52 | 200 | galvanized | - | - | - | 5.5 | 11.5 | to the product |
|
Permanent flat gripper HF
|

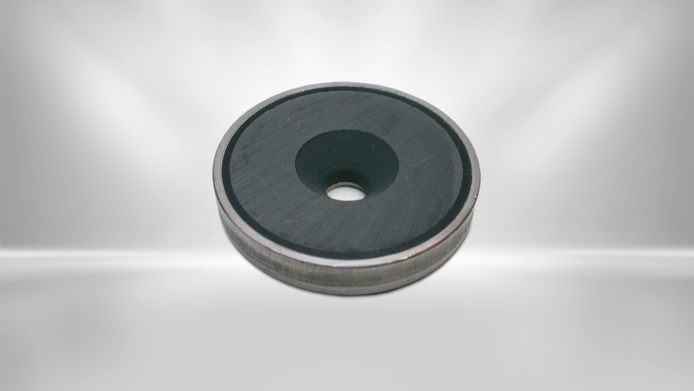

550 4040 20 | with bore and counter bore | hard ferrite | 22 | 20 | 6 | 9 | 220 | stainless steel | - | - | - | 4.2 | 9.4 | to the product |
|
|
Permanent flat gripper HF
|
550 4040 25 | with bore and counter bore | hard ferrite | 29 | 25 | 7 | 17 | 220 | stainless steel | - | - | - | 5.5 | 11.5 | to the product |
