Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Thread
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Diameter counter bore (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Permanent flat gripper HF
|
550 4040 32 | with bore and counter bore | hard ferrite | 58 | 32 | 7 | 27 | 220 | stainless steel | - | - | - | 5.5 | 11.5 | to the product |
|
|
Permanent flat gripper HF
|
550 4040 40 | with bore and counter bore | hard ferrite | 72 | 40 | 8 | 52 | 220 | stainless steel | - | - | - | 5.5 | 11.5 | to the product |
|
Permanent flat gripper HF
|

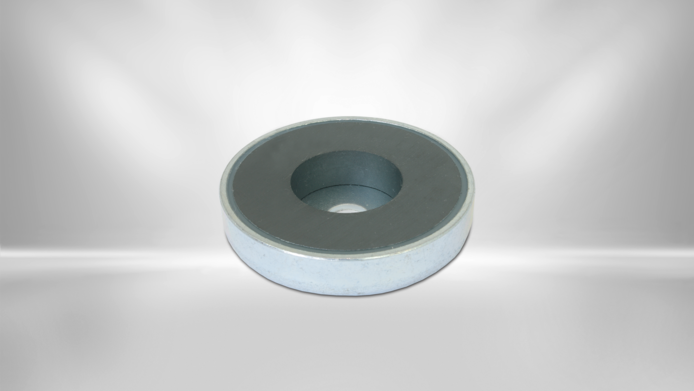

550 4041 05010 | with cylinder-bore | hard ferrite | 180 | 50 | 10 | 85 | 200 | galvanized | - | - | - | 22 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4041 05711 | with cylinder-bore | hard ferrite | 230 | 57 | 11 | 130 | 200 | galvanized | - | - | - | 24 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4041 06314 | with cylinder-bore | hard ferrite | 290 | 63 | 14 | 197 | 200 | galvanized | - | - | - | 24 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4041 08010 | with cylinder-bore | hard ferrite | 450 | 80 | 10 | 235 | 200 | galvanized | - | - | - | 32 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4041 08018 | with cylinder-bore | hard ferrite | 540 | 80 | 18 | 458 | 200 | galvanized | - | - | - | 11.5 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4041 08318 | with cylinder-bore | hard ferrite | 600 | 83 | 18 | 444 | 200 | galvanized | - | - | - | 32 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4041 10022 | with cylinder-bore | hard ferrite | 680 | 100 | 22 | 815 | 200 | galvanized | - | - | - | 34 | - | to the product |
|
Permanent flat gripper HF
|

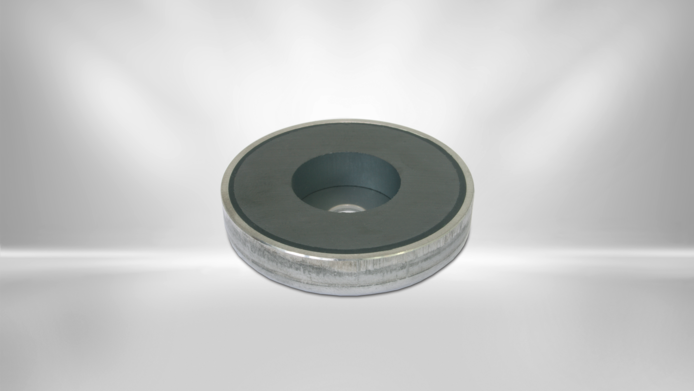

550 4042 50 | with cylinder-bore | hard ferrite | 145 | 50 | 10 | 85 | 220 | stainless steel | - | - | - | 22 | - | to the product |
|
|
Permanent flat gripper HF
|
550 4042 63 | with cylinder-bore | hard ferrite | 230 | 63 | 14 | 195 | 220 | stainless steel | - | - | - | 24 | - | to the product |
|
Permanent flat gripper HF
|

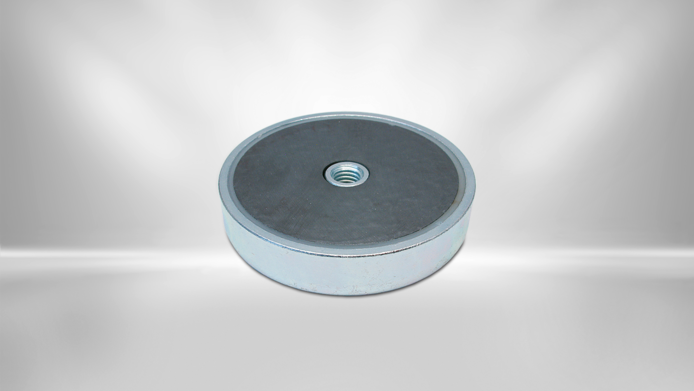

550 4043 2504 | with internal thread | hard ferrite | 36 | 25 | 7 | 18 | 200 | galvanized | - | - | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 3204 | with internal thread | hard ferrite | 75 | 32 | 7 | 29 | 200 | galvanized | - | - | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 4004 | with internal thread | hard ferrite | 90 | 40 | 8 | 53 | 200 | galvanized | - | - | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 5006 | with internal thread | hard ferrite | 170 | 50 | 10 | 94 | 200 | galvanized | - | - | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 5008 | with internal thread | hard ferrite | 170 | 50 | 10 | 94 | 200 | galvanized | - | - | M8 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 6306 | with internal thread | hard ferrite | 290 | 63 | 14 | 206 | 200 | galvanized | - | - | M8 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 8008 | with internal thread | hard ferrite | 550 | 80 | 18 | 472 | 200 | galvanized | - | - | M8 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4043 8010 | with internal thread | hard ferrite | 550 | 80 | 18 | 466 | 200 | galvanized | - | - | M10 | - | - | to the product |
|
Permanent flat gripper NdFeB
|

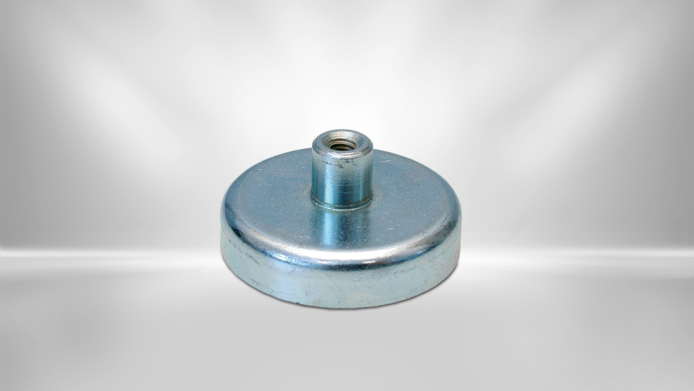

550 4017 10 | with threaded bush | NdFeB | 25 | 10 | 5 | 3 | 80 | galvanized | 12 | 5.5 | M3 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 12 | with threaded bush | NdFeB | 55 | 12 | 5 | 5 | 80 | galvanized | 13 | 6 | M3 | - | - | to the product |
