Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Thread
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Diameter counter bore (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Permanent flat gripper NdFeB
|
550 4017 16 | with threaded bush | NdFeB | 95 | 16 | 5 | 8 | 80 | galvanized | 13 | 6 | M4 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 20 | with threaded bush | NdFeB | 140 | 20 | 7 | 17 | 80 | galvanized | 15 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 25 | with threaded bush | NdFeB | 200 | 25 | 8 | 25 | 80 | galvanized | 17 | 10 | M5 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 32 | with threaded bush | NdFeB | 350 | 32 | 8 | 48 | 80 | galvanized | 18 | 10 | M5 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 36 | with threaded bush | NdFeB | 450 | 36 | 8 | 60 | 80 | galvanized | 18 | 10 | M6 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 42 | with threaded bush | NdFeB | 580 | 42 | 9 | 78 | 80 | galvanized | 20 | 12 | M6 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 48 | with threaded bush | NdFeB | 800 | 48 | 11 | 94 | 80 | galvanized | 24 | 12 | M8 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4017 60 | with threaded bush | NdFeB | 1150 | 60 | 15 | 110 | 80 | galvanized | 30 | 14 | M10 | - | - | to the product |
|
Permanent flat gripper NdFeB
|
550 4019 06 | without thread | NdFeB | 6 | 6 | 4.5 | 1 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 08 | without thread | NdFeB | 13 | 8 | 4.5 | 1.5 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 10 | without thread | NdFeB | 25 | 10 | 4.5 | 2.5 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 13 | without thread | NdFeB | 60 | 13 | 4.5 | 4.5 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 16 | without thread | NdFeB | 100 | 16 | 4.5 | 6.5 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 20 | without thread | NdFeB | 150 | 20 | 6 | 15 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 25 | without thread | NdFeB | 200 | 25 | 7 | 22 | 80 | galvanized | - | - | - | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4019 32 | without thread | NdFeB | 350 | 32 | 7 | 40 | 80 | galvanized | - | - | - | - | - | to the product |
|
Permanent flat gripper NdFeB
|

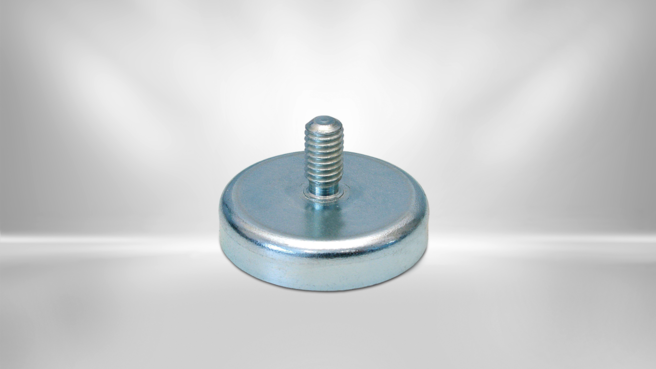

550 4016 10 | with threaded pin | NdFeB | 25 | 10 | 5 | 3 | 80 | galvanized | 7 | - | M3 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4016 12 | with threaded pin | NdFeB | 55 | 12 | 5 | 5 | 80 | galvanized | 8 | - | M3 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4016 16 | with threaded pin | NdFeB | 95 | 16 | 5 | 8 | 80 | galvanized | 8 | - | M4 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4016 20 | with threaded pin | NdFeB | 140 | 20 | 7 | 17 | 80 | galvanized | 8 | - | M4 | - | - | to the product |
|
|
Permanent flat gripper NdFeB
|
550 4016 25 | with threaded pin | NdFeB | 200 | 25 | 8 | 25 | 80 | galvanized | 9 | - | M5 | - | - | to the product |
