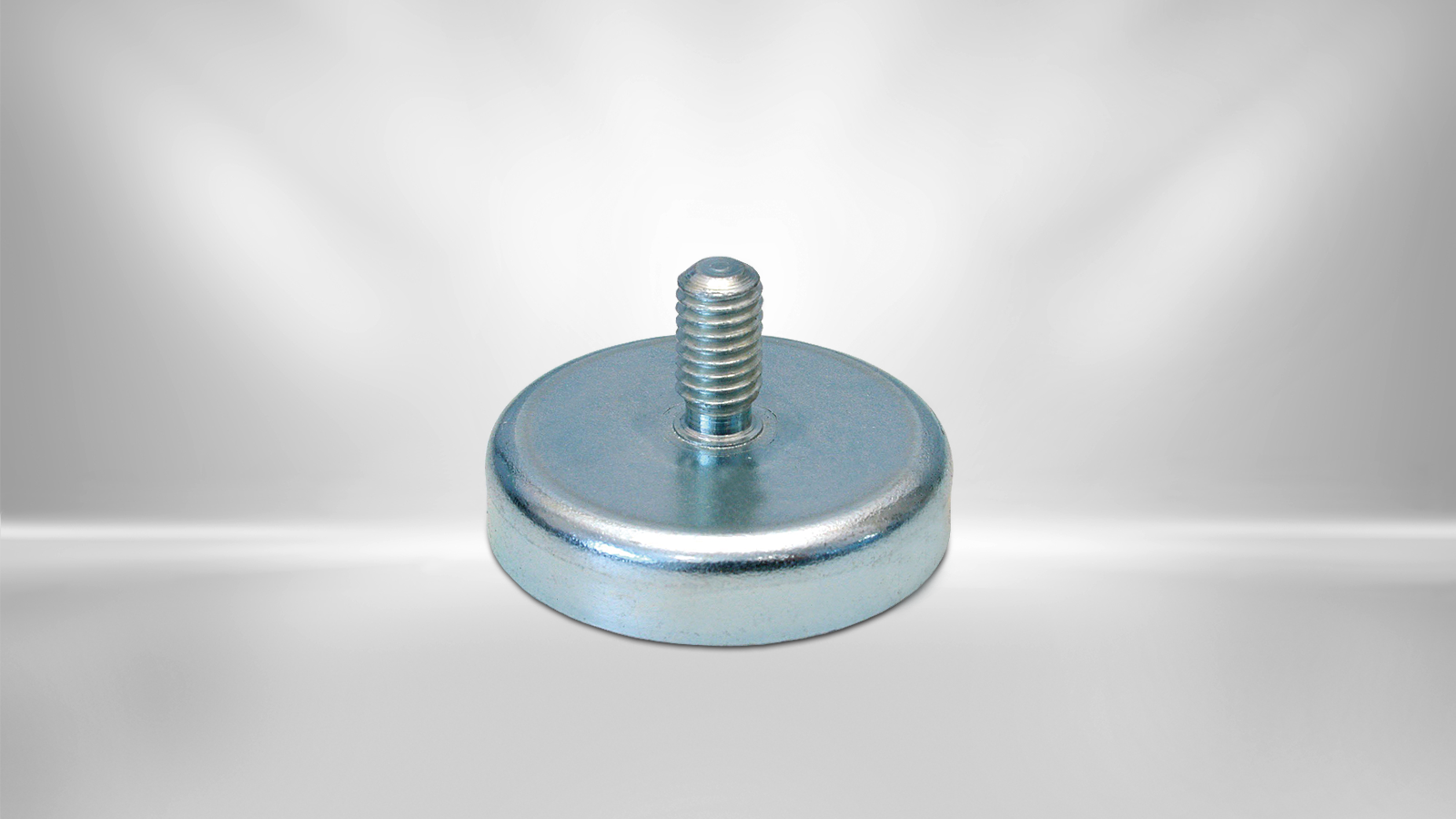

Permanent flat gripper NdFeB
550 4016 12
Flat gripper with a neodymium magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a threaded pin with an external thread.
Technical details
| Description | Value |
|---|---|
| Design | with threaded pin |
| Material | NdFeB |
| Force | 55 N |
| Diameter | 12 mm |
| Height | 5 mm |
| Total height | 8 mm |
| Weight | 5 g |
| Thread | M3 |
| Temperature | 80 °C |
| Housing | galvanized |
