Holding magnets
Powerful electro holding magnets
Kendrion holding magnets are pot magnets used to hold and clamp ferromagnetic workpieces. They are characterized by high holding forces and individual designs. The electromagnets are used in industrial lifting technology, in elevator brakes, in door holding devices for fire protection and are used for machine safety. Permanent holding magnets ensure that workpieces are held securely even in the event of a power failure.
Need some help? Try our new Holding Magnet Product Guide.
Products
(62)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Holding force (N)
ascending
descending
|
Design
ascending
descending
|
Holding permanentmagnetic?
ascending
descending
|
Thermal class
ascending
descending
|
Connection
ascending
descending
|
Diameter (mm)
ascending
descending
|
Length (mm)
ascending
descending
|
Width (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

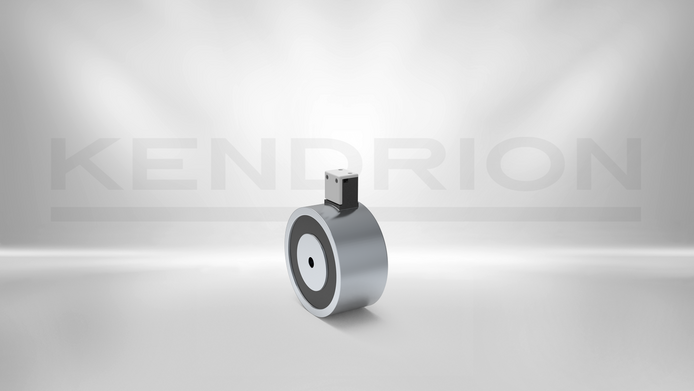

Electro Holding Magnet GTB070
|
GTB070.000100 | 24 | 100 | 12 | 1500 | round | no | B 130 | terminal clamp | 70 | - | - | to the product |
|

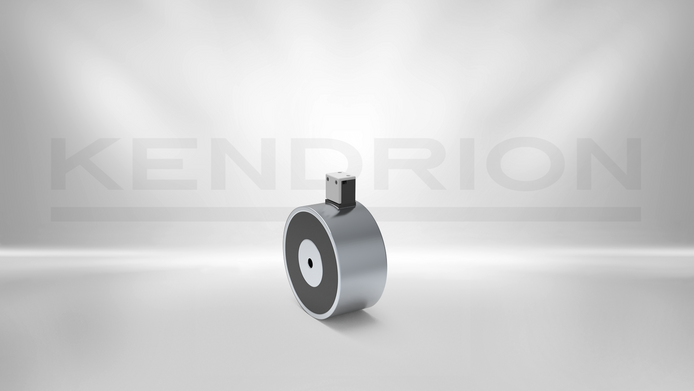

Electro Holding Magnet GTB080
|
GTB080.100001 | 24 | 100 | 14.9 | 1800 | round | no | B 130 | terminal clamp | 80 | - | - | to the product |
|

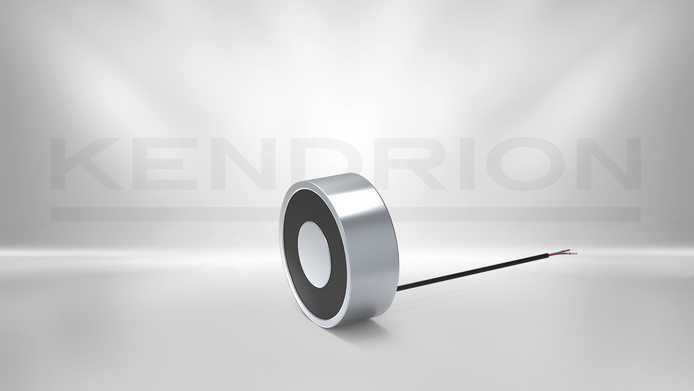

Electro Holding Magnet GTB015
|
GTB015.100001 | 24 | 100 | 2 | 36 | round | no | B 130 | free leads 200mm | 15 | - | - | to the product |
|

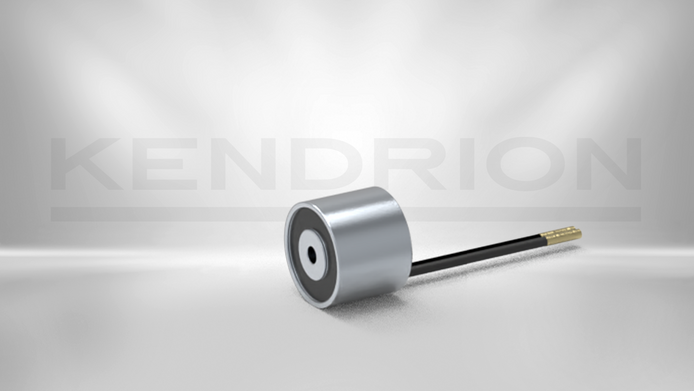

Electro Holding Magnet GTH015
|
GTH015.100001 | 24 | 100 | 1.4 | 45 | round | no | B 130 | free leads 200mm | 15 | - | - | to the product |
|

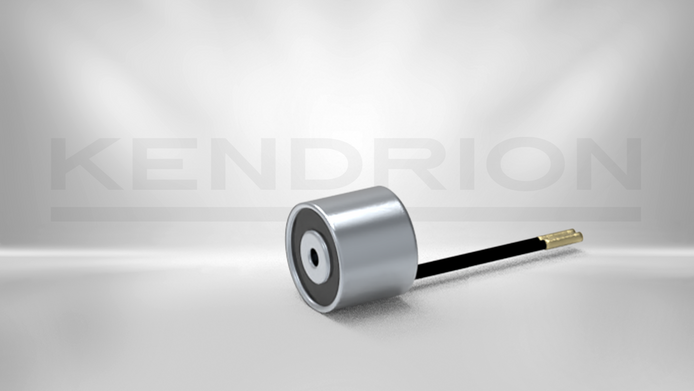

Electro Holding Magnet GTH020
|
GTH020.000030 | 24 | 100 | 2.2 | 112 | round | no | B 130 | free leads 200mm | 20 | - | - | to the product |
|

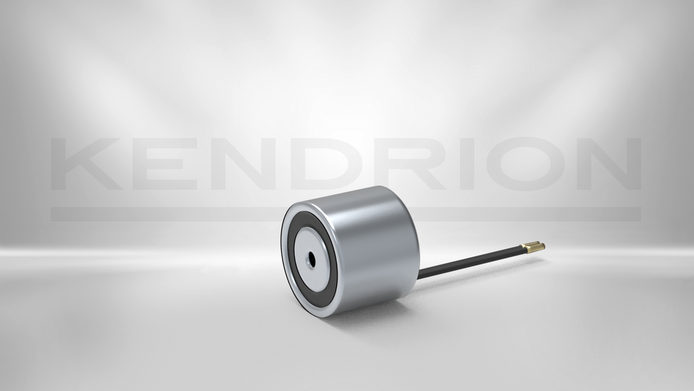

Electro Holding Magnet GTH025
|
GTH025.100001 | 24 | 100 | 3.2 | 240 | round | no | B 130 | free leads 200mm | 25 | - | - | to the product |
|

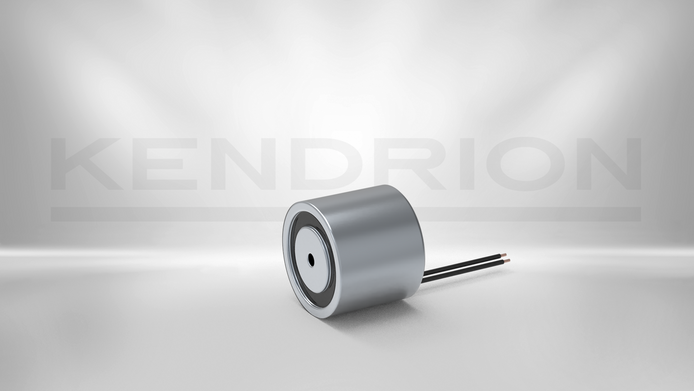

Electro Holding Magnet GTH030
|
GTH030.100001 | 24 | 100 | 4.1 | 355 | round | no | B 130 | free leads 200mm | 30 | - | - | to the product |
|

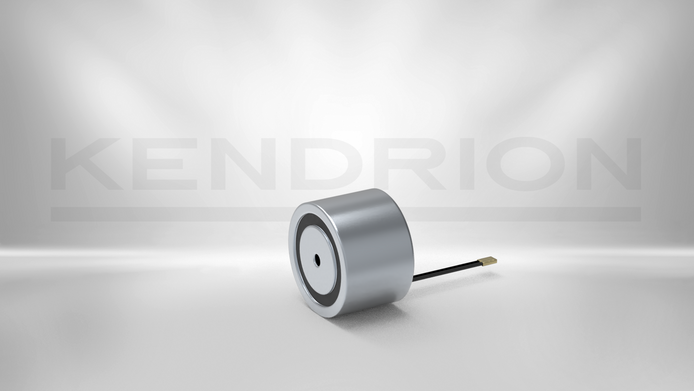

Electro Holding Magnet GTH040
|
GTH040.100001 | 24 | 100 | 5.9 | 740 | round | no | B 130 | free leads 200mm | 40 | - | - | to the product |
|

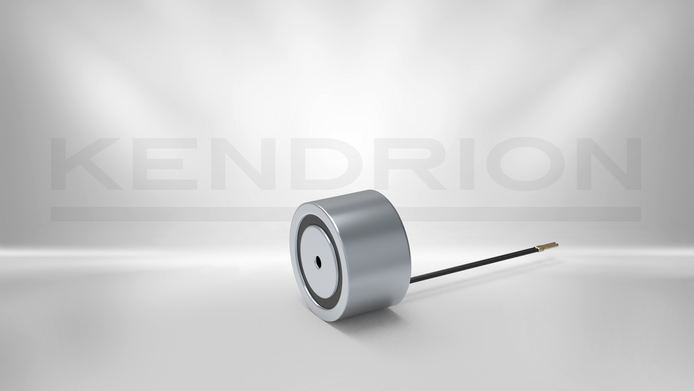

Electro Holding Magnet GTH050
|
GTH050.100001 | 24 | 100 | 7.5 | 1250 | round | no | B 130 | free leads 200mm | 50 | - | - | to the product |
|

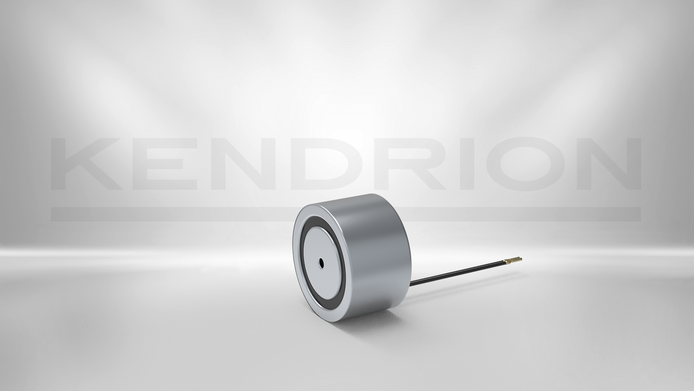

Electro Holding Magnet GTH060
|
GTH060.100001 | 24 | 100 | 10.3 | 1730 | round | no | B 130 | free leads 200mm | 60 | - | - | to the product |
|
Electro Holding Magnet GTH070
|
GTH070.100001 | 24 | 100 | 12.1 | 2310 | round | no | B 130 | free leads 200mm | 70 | - | - | to the product |
|

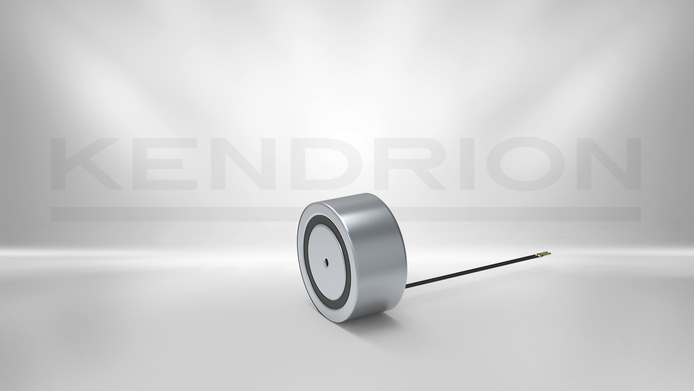

Electro Holding Magnet GTH080
|
GTH080.100001 | 24 | 100 | 14.9 | 3190 | round | no | B 130 | free leads 200mm | 80 | - | - | to the product |
|
Electro Holding Magnet GTH090
|
GTH090.100001 | 24 | 100 | 17.8 | 3880 | round | no | B 130 | free leads 200mm | 90 | - | - | to the product |
|

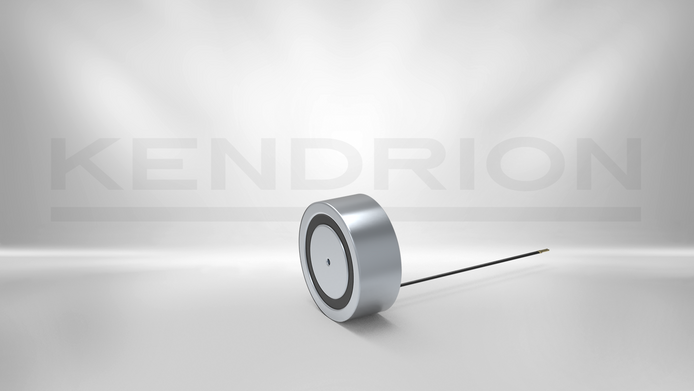

Electro Holding Magnet GTH100
|
GTH100.100001 | 24 | 100 | 18.4 | 4890 | round | no | B 130 | free leads 200mm | 100 | - | - | to the product |
|

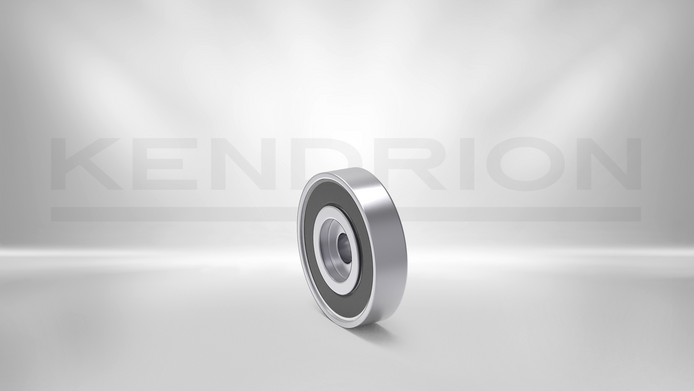

Electro Holding Magnet D56
|
10060007 | 24 | 100 | 7.1 | 750 | round | no | E 120 | free leads 300mm | 56 | - | - | to the product |
|

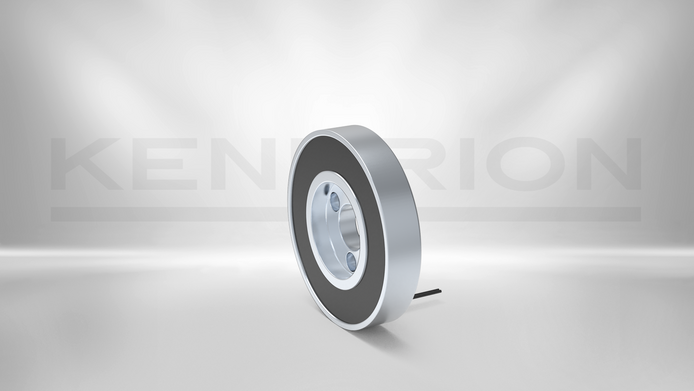

Electro Holding Magnet D110
|
10110008 | 24 | 100 | 14.7 | 2050 | round | no | E 120 | free leads 300mm | 110 | - | - | to the product |
|

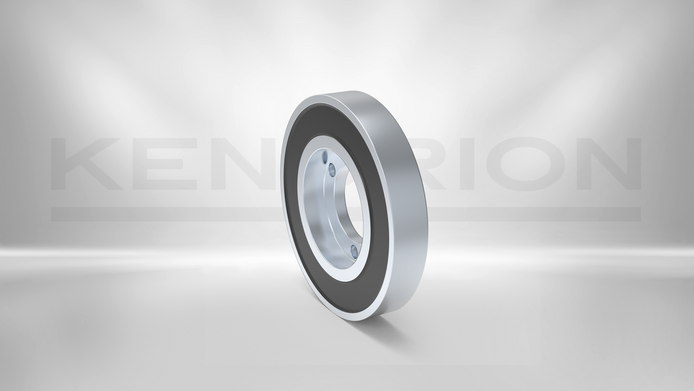

Electro Holding Magnet D170
|
10170004 | 24 | 100 | 31.4 | 5000 | round | no | E 120 | free leads 300mm | 170 | - | - | to the product |
|

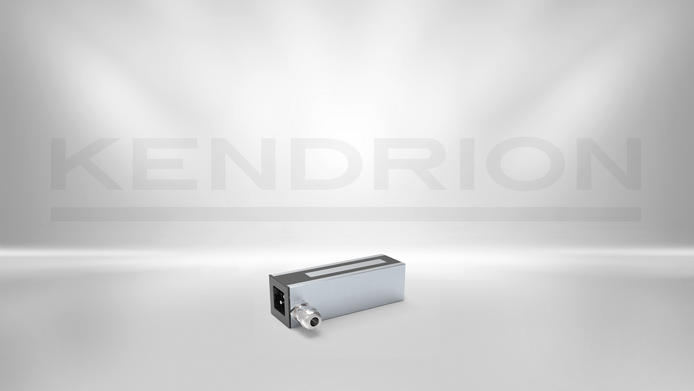

Electro Holding Magnet 32x101
|
10010001 | 24 | 100 | 6.5 | 880 | square | no | E 120 | terminal clamp | - | 100 | 31 | to the product |
|

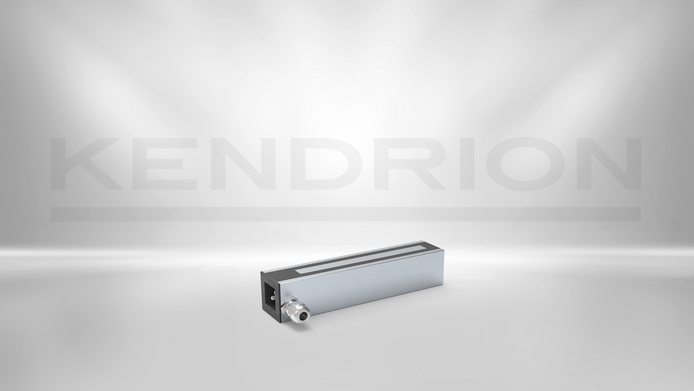

Electro Holding Magnet 32x151
|
10020001 | 24 | 100 | 10, 5 | 1500 | square | no | E 120 | terminal clamp | - | 151 | 31 | to the product |
|

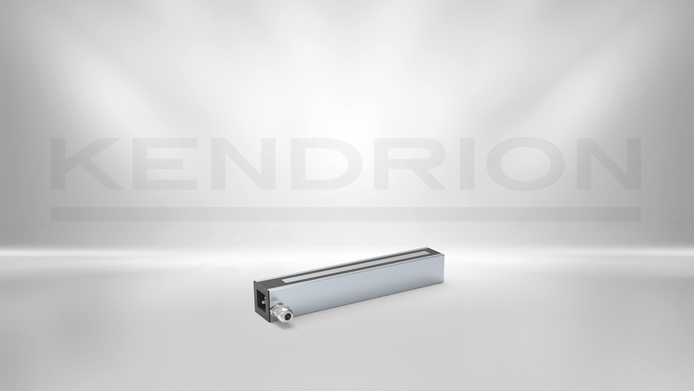

Electro Holding Magnet 32x201
|
10030001 | 24 | 100 | 12.9 | 2100 | square | no | E 120 | terminal clamp | - | 201 | 31 | to the product |
|

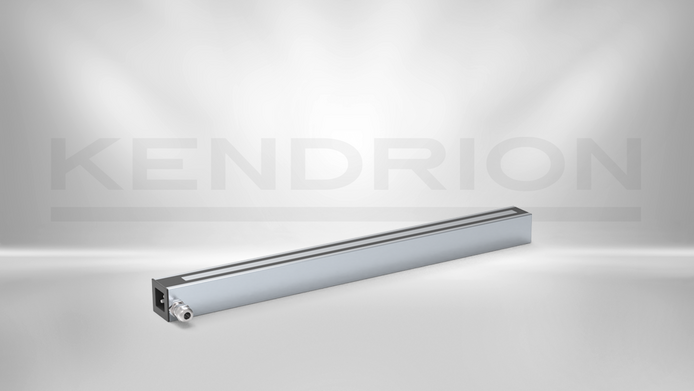

Electro Holding Magnet 32x401
|
10040001 | 24 | 100 | 24 | 4700 | square | no | E 120 | terminal clamp | - | 401 | 31 | to the product |
