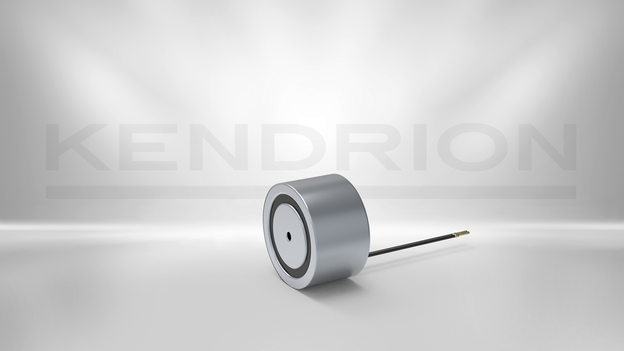

Electro Holding Magnet GTH060
GTH060.100001
Holding magnet for holding or clamping ferromagnetic workpieces. The DC-excited coil achieves a holding force of up to 30,000 N when energized. When the supply voltage is switched off, the workpiece to be held falls off. The holding solenoid is maintenance-free and are characterized by a low operating current at high holding forces.
The holding solenoid is available in different sizes in round, flat or square design.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 10.3 W |
| Holding force | 1730 N |
| Design | round |
| Diameter | 60x35 mm |
| Holding permanentmagnetic? | no |
| Thermal class | B 130 |
| Connection | free leads 200mm |
