Linear solenoids
Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion
Kendrion linear solenoids develop high forces with compact dimensions and are universally applicable. Kendrion offers a wide range of standard solenoids, which are mainly used in mechanical engineering, medical technology, handling automation, power engineering and aviation. They are particularly durable, reliable and low-maintenance.
Linear solenoids in open-frame technology are available in various designs as push or pull solenoids or as combi type solenoids with integrated return spring. They are characterized by short switching times and a compact design.
Bistable linear solenoids are particularly suitable for use where low energy requirements and mains-independent applications are needed. Due to their small installation space, they can be used in a variety of applications. They can be integrated as interlocks in transportable devices, door interlocks and closing devices.
The high-performance linear solenoids of the LHP series are particularly powerful and robust. The closed, compact design makes the linear solenoids particularly resistant. High-performance linear solenoids are preferably used where short switching times and high efficiency are required. The maintenance-free armature bearings on both sides enable switching cycles in the 2-digit million range. They are available in cylindrical as well as in square design.
|
Title
ascending
descending
|
Type
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Stroke (mm)
ascending
descending
|
Inital force (N)
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
End force (N)
ascending
descending
|
Return spring
ascending
descending
|
Length
ascending
descending
|
Width
ascending
descending
|
Height
ascending
descending
|
Design
ascending
descending
|
Protection class
ascending
descending
|
Thermal class
ascending
descending
|
Connection
ascending
descending
|
Solenoid weight (g)
ascending
descending
|
Armature weight (g)
ascending
descending
|
Special Features
ascending
descending
|
Product Line
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

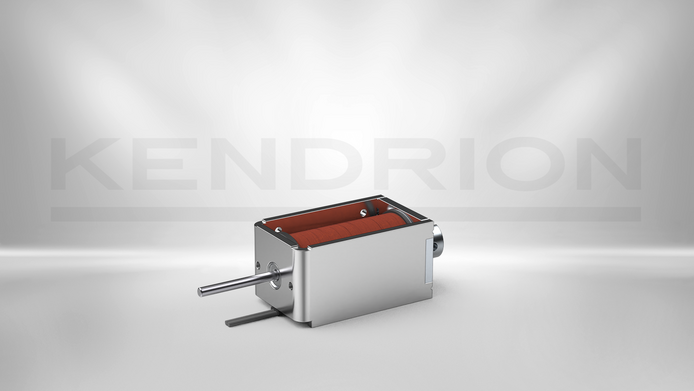

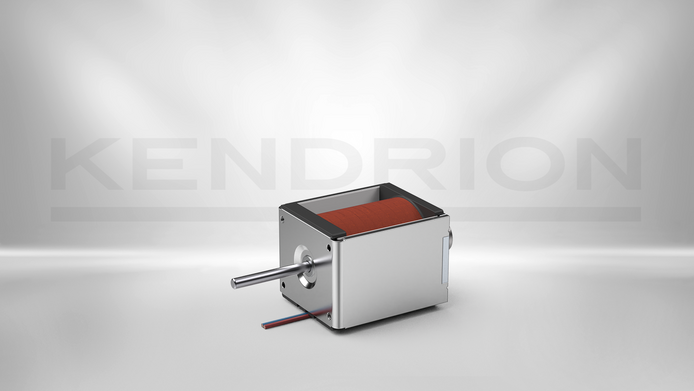

Linear Solenoid H3486
|
H3486-R-F-24V DC 100 ED | 100 | 8 | 12 | 0.6 | 24 | 6 | Yes | 30 | 26 | 49.5 | No | IP 00 | B, 130 | 10 cm lead | 140 | 32 | - | Single Stroke Linear Solenoids | to the product |
|

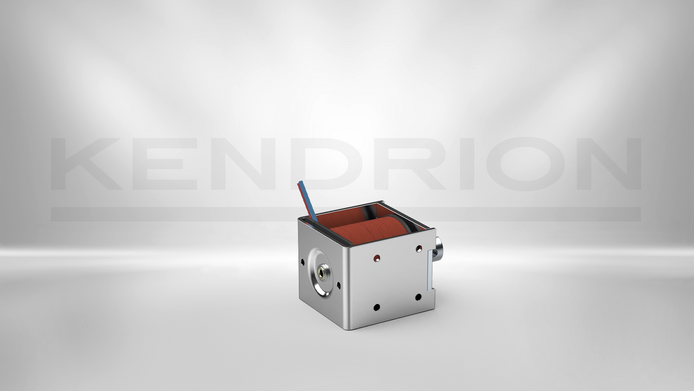

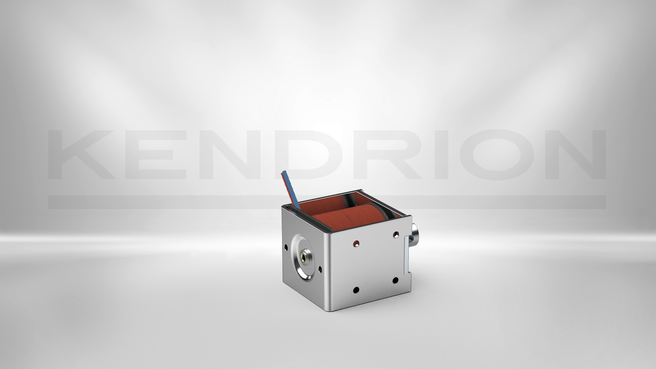

Linear Solenoid H4206
|
H4206-F-24V DC 100 ED | 100 | 6.2 | 7 | 0.7 | 24 | 7 | No | 35 | 31 | 36 | No | IP 00 | E, 120 | 10 cm lead | 145 | 25 | - | Single Stroke Linear Solenoids | to the product |
|

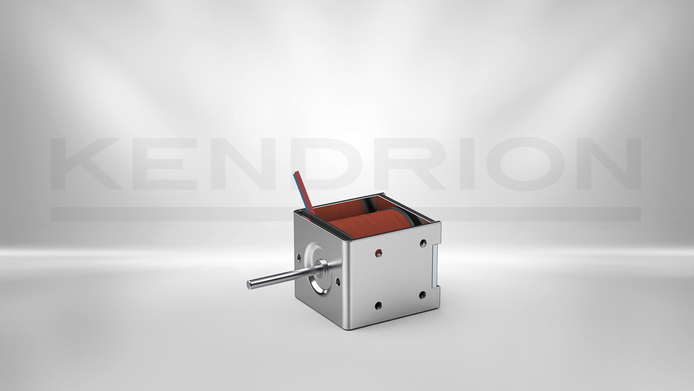

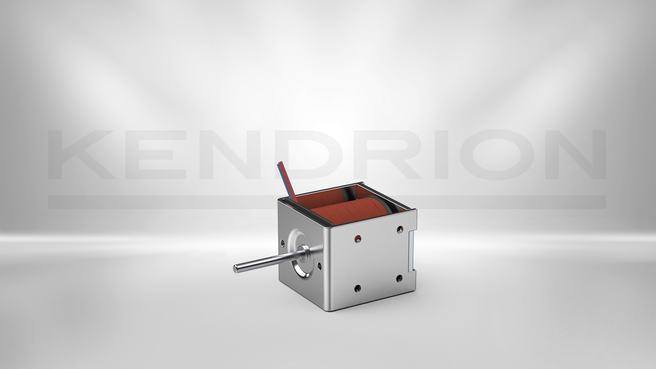

Linear Solenoid H4246
|
H4246-F-24V DC 100 ED | 100 | 6.2 | 7 | 0.7 | 24 | 7 | No | 35 | 31 | 36 | No | IP 00 | E, 120 | 10 cm lead | 145 | 25 | - | Single Stroke Linear Solenoids | to the product |
|

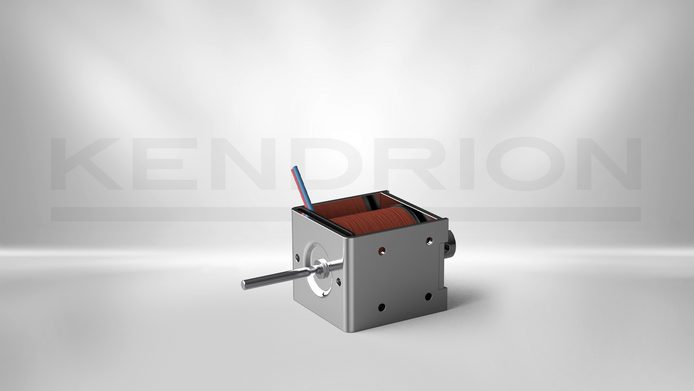

Linear Solenoid H4286
|
H4286-R-F-24V DC 100 ED | 100 | 6.2 | 7 | 0.7 | 24 | 7 | Yes | 35 | 31 | 36 | No | IP 00 | E, 120 | 10 cm lead | 145 | 25 | - | Single Stroke Linear Solenoids | to the product |
|

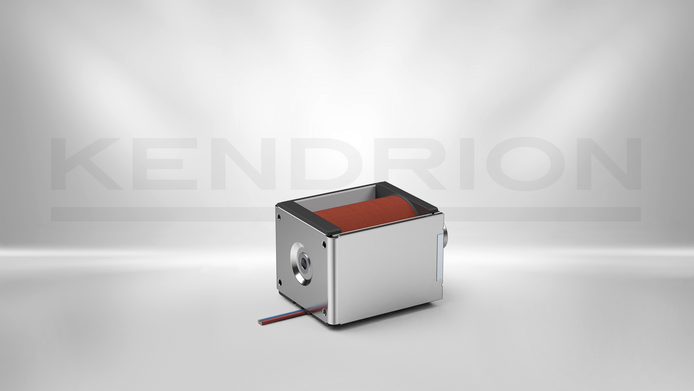

Linear Solenoid H6206
|
H6206-F-24V DC 100 ED | 100 | 11 | 15 | 0.8 | 24 | 18 | No | 44 | 38 | 50 | No | IP 00 | B, 130 | 10 cm lead | 320 | 45 | - | Single Stroke Linear Solenoids | to the product |
|

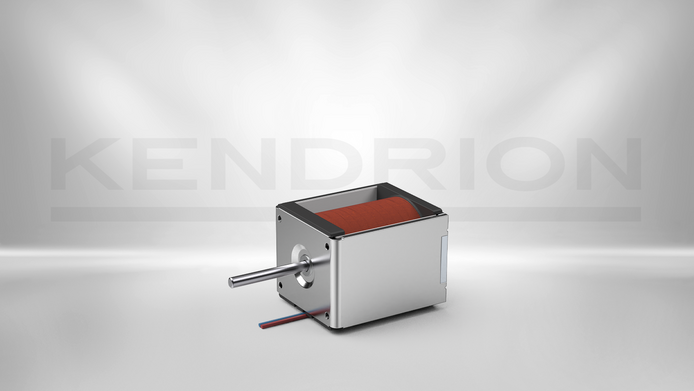

Linear Solenoid H6246
|
H6246-F-24V DC 100 ED | 100 | 11 | 15 | 0.8 | 24 | 18 | No | 44 | 38 | 50 | No | IP 00 | B, 130 | 10 cm lead | 320 | 45 | - | Single Stroke Linear Solenoids | to the product |
|

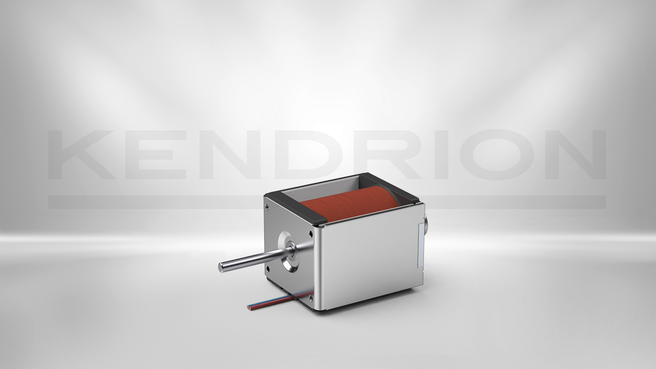

Linear Solenoid H6286
|
H6286-R-F-24V DC 100 ED | 100 | 11 | 15 | 0.8 | 24 | 18 | Yes | 44 | 38 | 50 | No | IP 00 | B, 130 | 10 cm lead | 320 | 45 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid HU240
|
HU240-F-24V DC 100 ED | 100 | 2.9 | 6 | 0.3 | 24 | 0.7 | No | 16 | 17.5 | 24 | No | IP 00 | E, 120 | 10 cm lead | 27 | 5 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid HU244
|
HU244-F-24V DC 100 ED | 100 | 2.9 | 6 | 0.3 | 24 | 0.7 | No | 16 | 17.5 | 24 | No | IP 00 | E, 120 | 10 cm lead | 27 | 5 | - | Single Stroke Linear Solenoids | to the product |
|
|

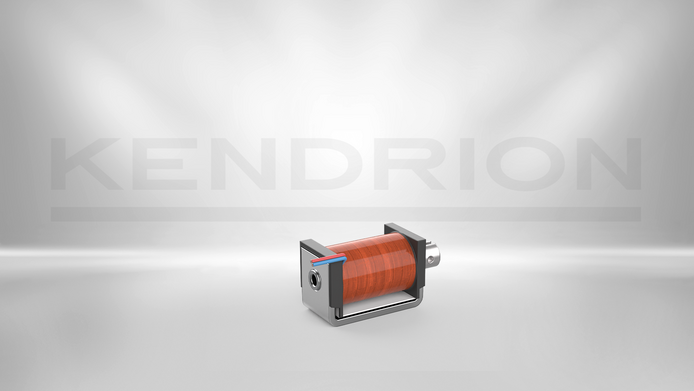

Linear Solenoid HU320
|
HU320-F-24V DC 100 ED | 100 | 4.2 | 6 | 0.2 | 24 | 2.4 | No | 18 | 21 | 32 | No | IP 00 | E, 120 | 10 cm lead | 55 | 11 | - | Single Stroke Linear Solenoids | to the product |
|
|

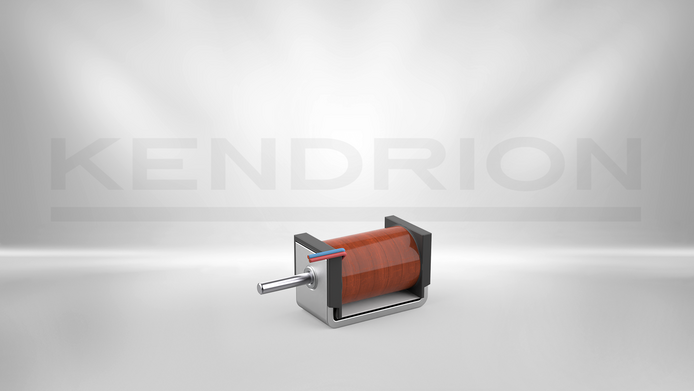

Linear Solenoid HU324
|
HU324-F-24V DC 100 ED | 100 | 4.2 | 6 | 0.2 | 24 | 2.4 | No | 18 | 21 | 32 | No | IP 00 | E, 120 | 10 cm lead | 55 | 11 | - | Single Stroke Linear Solenoids | to the product |
|

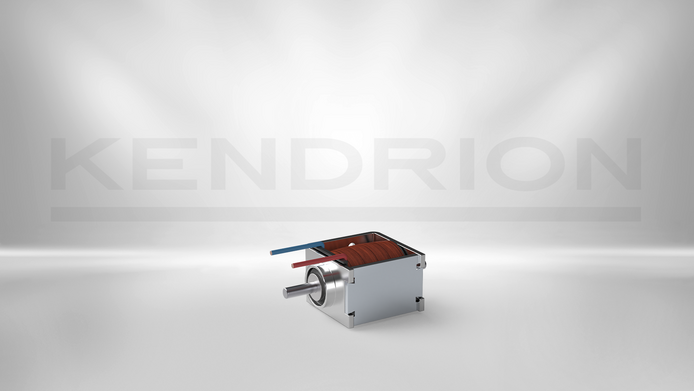

Linear Solenoid MM15
|
MM 15-F-24V DC 100 ED | 100 | 1.8 | 2 | 0.2 | 24 | 0.5 | Yes | 12.1 | 16.5 | 16 | No | IP 00 | E, 120 | 10 cm lead | 12, 5 | 2 | - | Single Stroke Linear Solenoids | to the product |
|

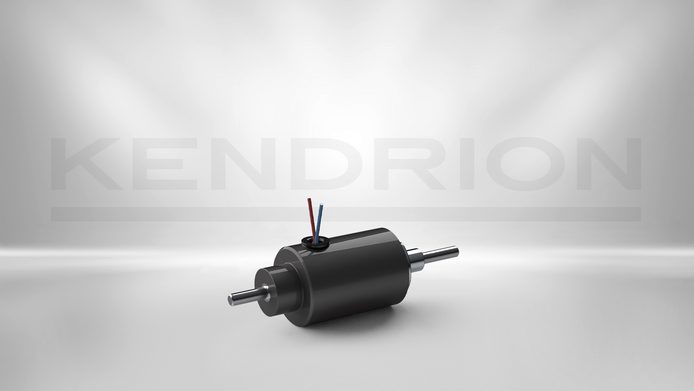

High Power Linear Solenoid RM20
|
RM 20-R-F-24V DC 100ED | 100 | 3.9 | 3 | 1.45 | 24 | 2.9 | Yes | 20 | 20 | 28 | No | IP 40 | B, 130 | 10 cm lead | 60 | 12 | - | High Power Linear Solenoids | to the product |
|

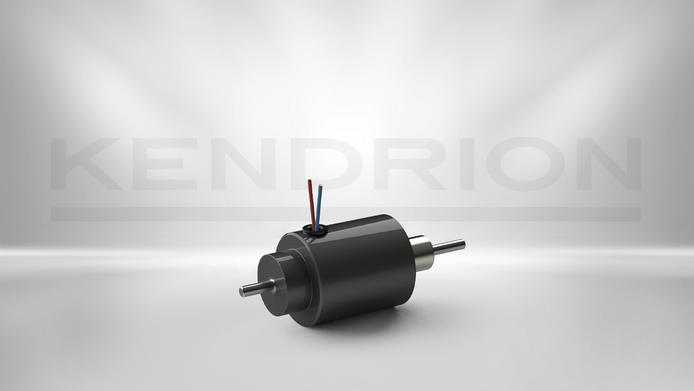

High Power Linear Solenoid RM26
|
RM 26-R-F-24V DC 100 ED | 100 | 5.5 | 4 | 1.9 | 24 | 6 | Yes | 26 | 26 | 30 | No | IP 40 | B, 130 | 10 cm lead | 117 | 24 | - | High Power Linear Solenoids | to the product |
|

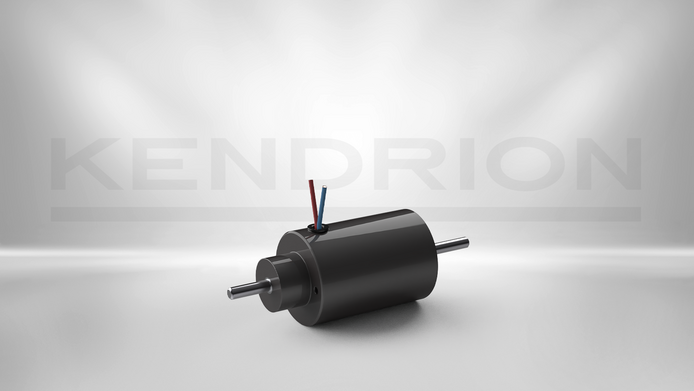

High Power Linear Solenoid RM32
|
RM 32-R-F-24V DC 100ED | 100 | 6.5 | 8 | 3 | 24 | 7 | Yes | 32 | 32 | 45 | No | IP 40 | B, 130 | 10 cm lead | 235 | 40 | - | High Power Linear Solenoids | to the product |
|

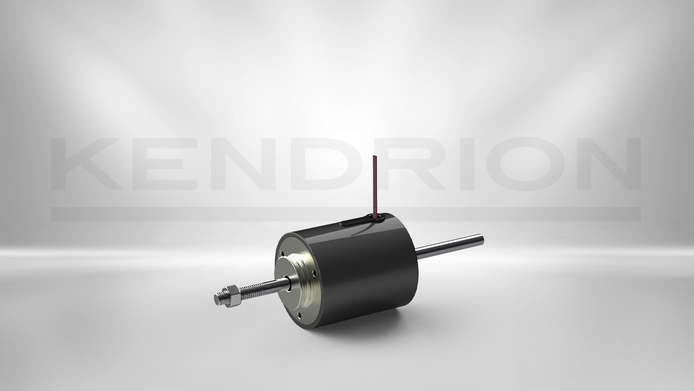

High Power Linear Solenoid RM040
|
RM040W-OBOO-F-24V DC 100 ED | 100 | 11 | 8 | 6 | 24 | 18 | No | 40 | 40 | 45 | No | IP 40 | F, 155 | 10 cm lead | 380 | 60 | - | High Power Linear Solenoids | to the product |
|

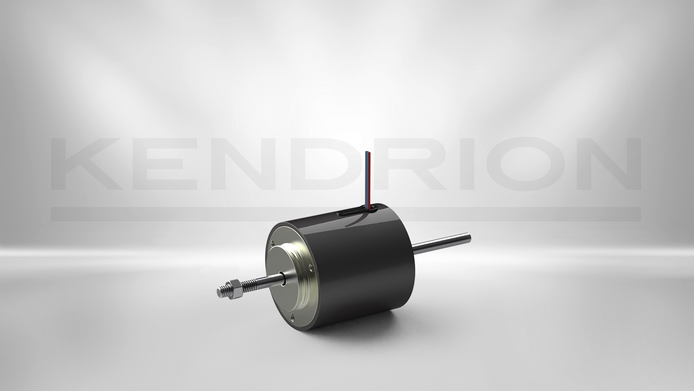

High Power Linear Solenoid RM050
|
RM050W-OBOO-F-24V DC 100 ED | 100 | 20 | 10 | 13 | 24 | 25 | No | 50 | 50 | 50 | No | IP 40/65 | F, 155 | 20 cm lead | 610 | 200 | - | High Power Linear Solenoids | to the product |
|

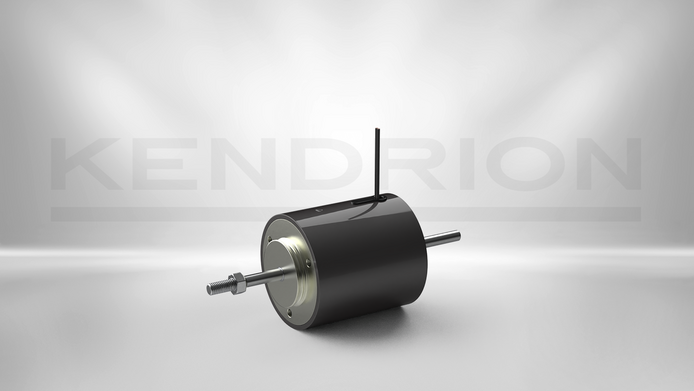

High Power Linear Solenoid RM060
|
RM060W-OBOO-F-24V DC 100 ED | 100 | 25 | 12 | 23 | 24 | 90 | No | 60 | 60 | 64 | No | IP 40/65 | F, 155 | 20 cm lead | 1300 | 250 | - | High Power Linear Solenoids | to the product |
|

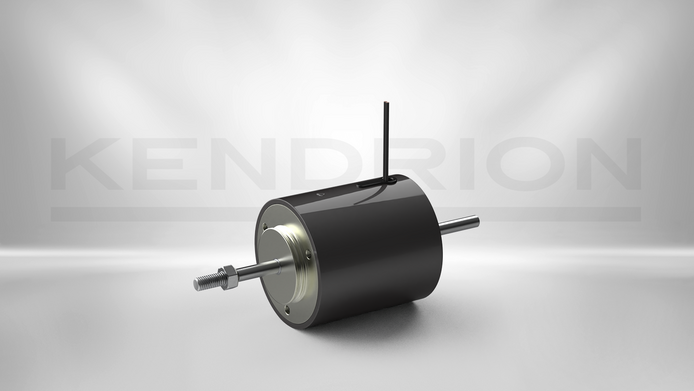

High Power Linear Solenoid RM070
|
RM070W-OBOO-F-24V DC 100 ED | 100 | 31 | 15 | 33 | 24 | 105 | No | 70 | 70 | 74 | No | IP 40/65 | F, 155 | 20 cm lead | 2000 | 400 | - | High Power Linear Solenoids | to the product |
|

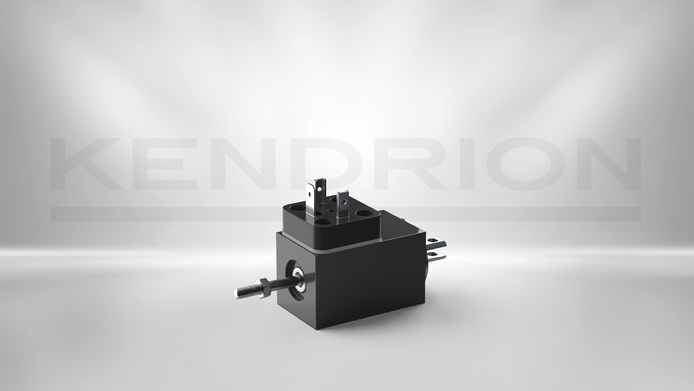

High Power Linear Solenoid V30
|
V30-N-24V DC 100 ED | 100 | 9.2 | 6 | 3 | 24 | 5 | No | 30 | 30 | 52 | No | IP 40/65 | E, 120 | N GerätePlug | 285 | 28 | - | High Power Linear Solenoids | to the product |
|

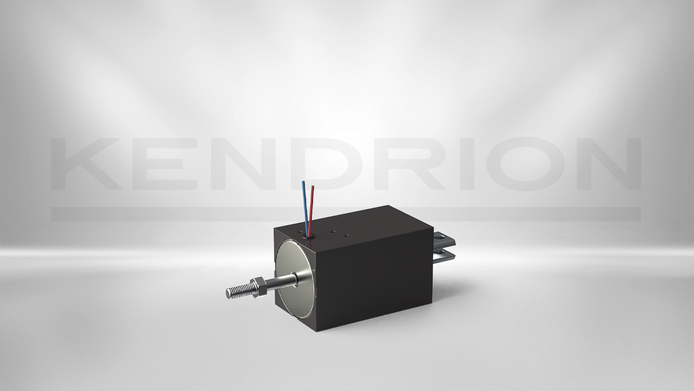

High Power Linear Solenoid V45
|
V45-F-24V DC 100 ED | 100 | 18 | 15 | 5 | 24 | 50 | No | 45 | 45 | 75 | No | IP 40/65 | E, 120 | 10 cm lead | 970 | 220 | - | High Power Linear Solenoids | to the product |
