Spring Applied Brake - Servo Line
KS 10010A00-0001

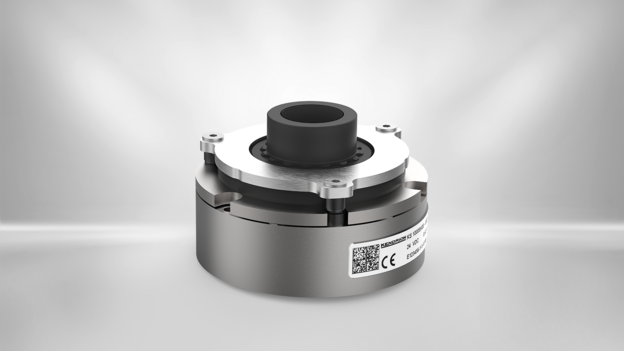

The spring-applied brake of the Servo Line series was developed for integrated installation in servo motors. The holding brake with emergency stop function of the Servo Line is designed for both, A-side and B-side integrated installation in servo drives for dry running.
Features
- Rated air gap tolerance is reduced to a few hundredths of a millimeter, providing enhanced power density
- Toothed hub-friction disc connection with minimal backlash
- Standard version suitable for flange mounting and face mounting
- Guaranteed minimum torque over life-time
Technical details
| Description | Value |
|---|---|
| Brake size | 10 |
| Torque | 16 Nm |
| Torque definition | M4 (static) |
| Operation mode | Holding Brake |
| Nominal voltage | 24 V |
| Nominal power | 20.8 W |
| Max. switching energy per ES | 600 J |
| Number of emergency stops | 500 |
| Total work | 300 kJ |
| Temperature range | -15...120°C |
| Max. rotation speed | 6000 min-1 |
| E-Stop rotation speed | 3000 min-1 |
| Backlash | < 1° |
| Thermal class | F |
| IP Protection class | IP00 |
| Weight | 1.9 kg |
| Brake type | KS 100 |
| Armature type | - |
| Hub type | Long |
| Hand release | - |
| Counter friction part | Flange |
| PWM control | possible |
| Outer diameter | 102 mm |
| Inner diameter | 27 mm |
| Lenght | 43 mm |
| Hub diameter | 25.5 mm |
| Keyway | - |
| Pitch circle front side | 72 mm |
| Pitch circle flange side | 93 mm |
| Product Line | Servo Line |
