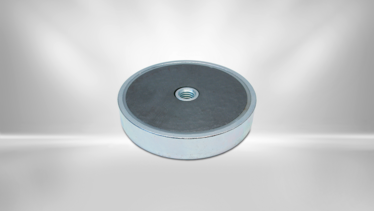

Permanent flat gripper HF
550 4043 6306
Flat gripper with a hard ferrite magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a central internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with internal thread |
| Material | hard ferrite |
| Force | 290 N |
| Diameter | 63 mm |
| Height | 14 mm |
| Weight | 206 g |
| Thread | M8 |
| Temperature | 200 °C |
| Housing | galvanized |
