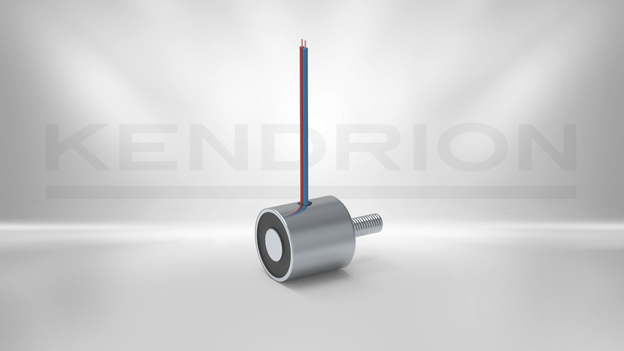

Permanent Electro Holding Magnet PEM15
1266215
The permanent holding magnet achieve a holding force of up to 3,500 N in the de-energized state and are designed for long holding of magnetic workpieces. When the DC-excited coil is switched on, the permanent magnetic field on the holding surface is neutralized and the workpiece to be held can be removed. The electromagnet holds loads even in the event of a power failure and only needs to be energized briefly to release the workpiece. It is characterized by its energy efficiency and high holding forces.
The permanent holding solenoid is available in different sizes with forces between 8 and 3,500 N.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 1.5 W |
| Holding force | 30 N |
| Design | round |
| Diameter | 15x15 mm |
| Holding permanentmagnetic? | yes |
| Thermal class | B 130 |
| Connection | free leads 130mm |
