CODESYS Starterkit
Control & Motion
694 300 99 11
The CODESYS Starter Kit enables a quick start to your automation task with drive elements and offers a powerful solution for PLC programming including the CODESYS Motion extension.

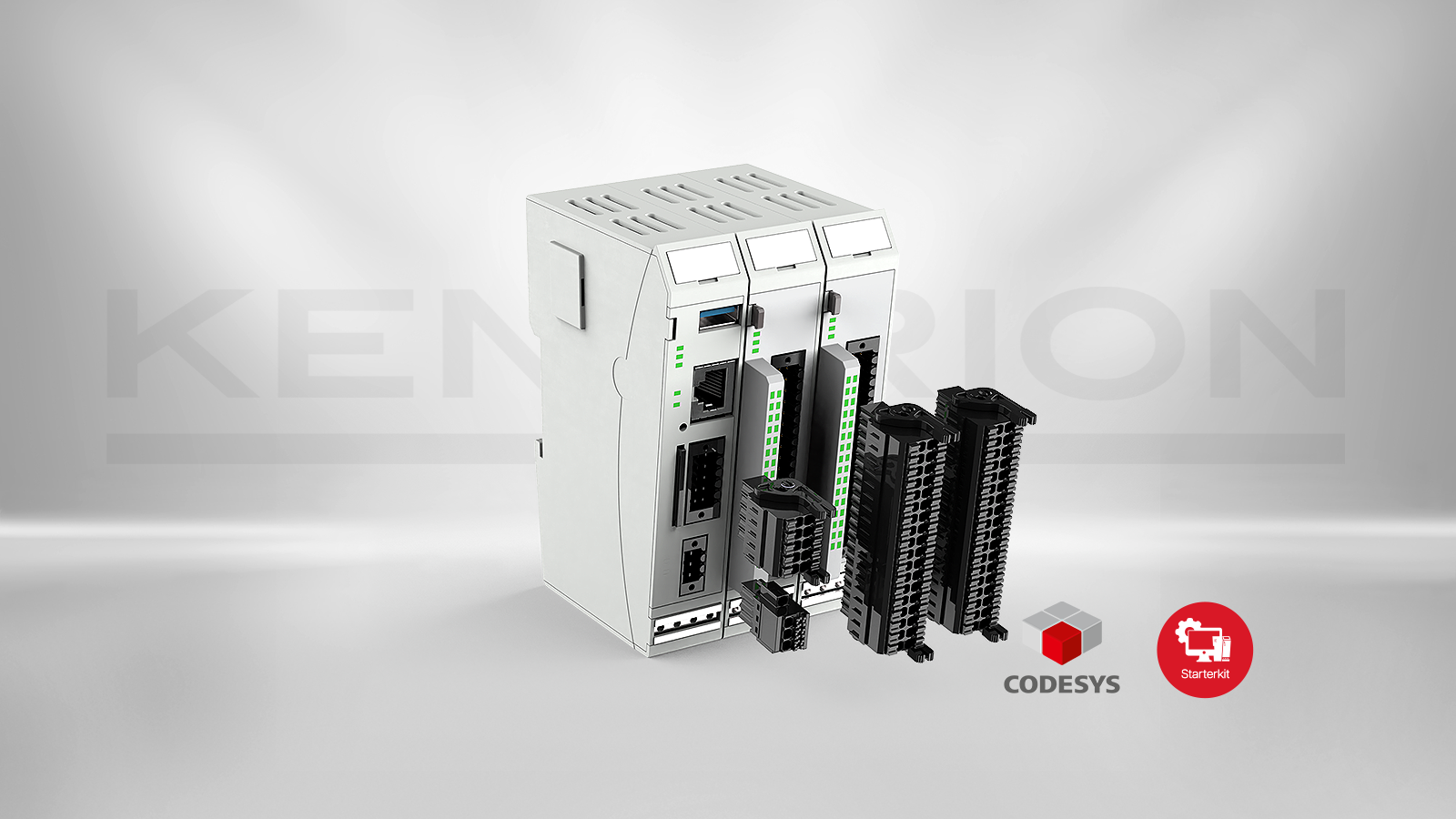

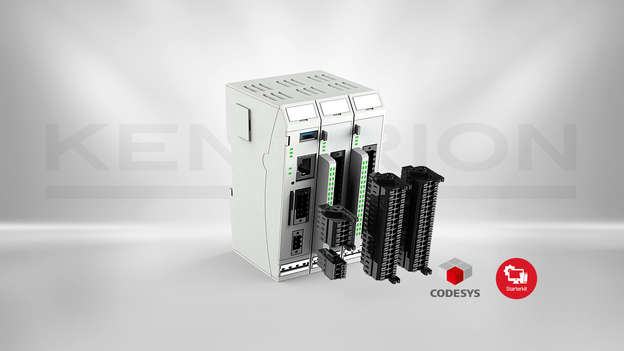

The starter kit consists of three modules: the FIO Controller 116, the FIO DI16/DO16 expansion module and the FIO Drive Control. The I/O module offers 16 digital inputs and 16 digital outputs. The FIO Drive Control drive controller is used to control stepper motors as well as BLDC motors in "open loop" or "closed loop" operation. The FIO Controller 116 also offers an integrated OPC UA server for secure and standardized communication in the Industry 4.0 environment.
- CODESYS V3 SPS
- EtherCAT-MainDevice
- OPC UA Server
- WebVisu
- CODESYS-Motion
- Individually expandable with a Vico HMI or other FIO EtherCAT® IO modules
Technical details
| Description | Value |
|---|---|
| Function | CODESYS Starterkit Control & Motion |
| Integrated function | CODESYS V3 PLC with EtherCAT Expansion module 16DI/16DO, EtherCAT® motion controller for stepper motors |
| Software | CODESYS V3 Soft PLC, CODESYS , CODESYS WebVisu, Motion Control Library |
| Interfaces | LAN, RS-232, CAN, USB |
| Field bus interfaces | EtherCAT-MainDevice, CANopen Manager, OPC UA Server, Modbus-Client TCP/RTU, |
| Product status | Standard product |
