Our Servo Line

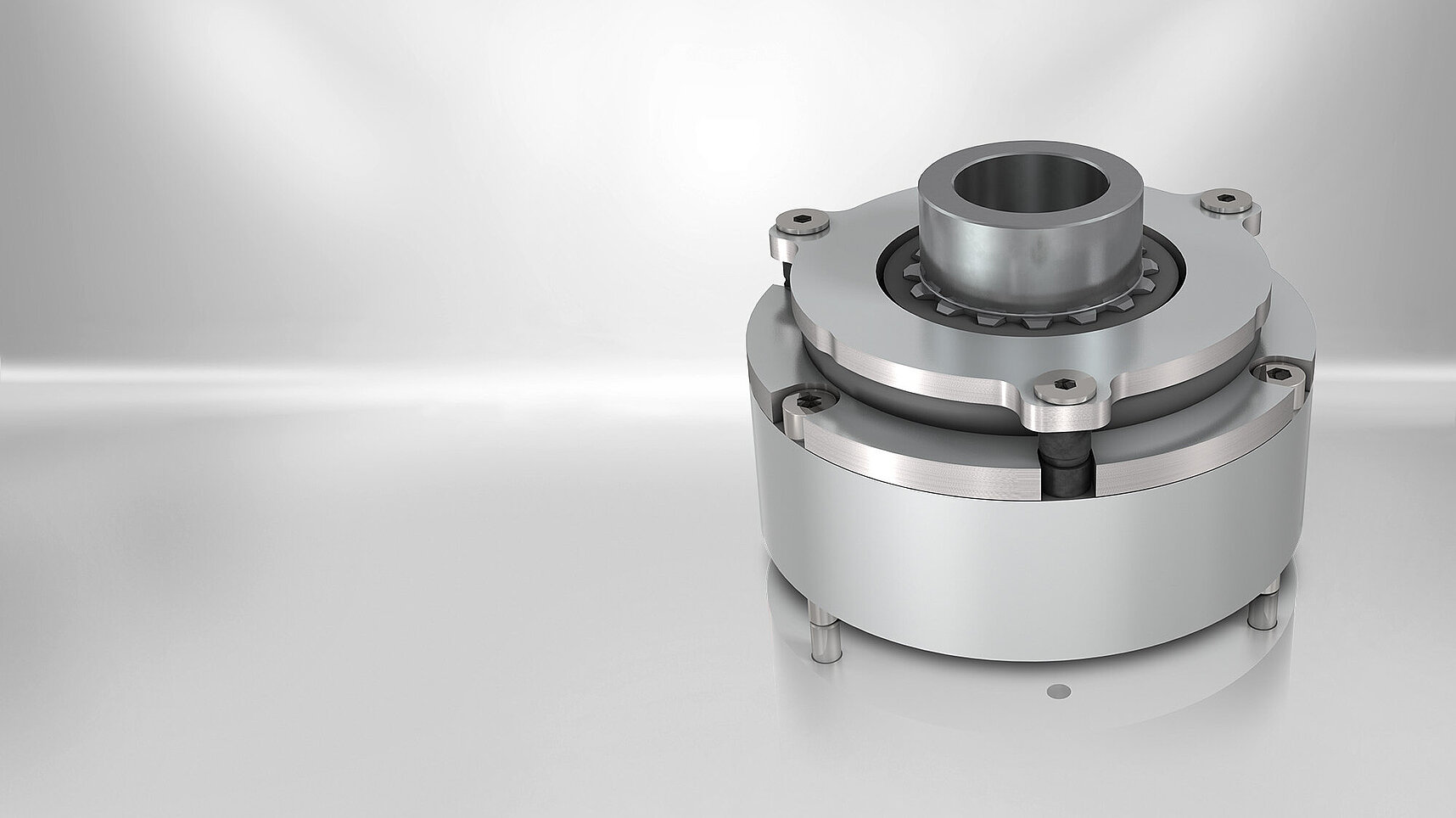

The Servo Line series of spring-applied brakes has been developed for integration into servo motors

The brakes are designed for use as holding brakes with emergency stop function. They are suitable for many different industrial applications, such as automation & robotics, machine tools, packaging & materials handling, storage systems, assembly lines and renewable energy.

The spring-applied single-disc brakes in the Servo Line series are designed to operate dry. They can be mounted to the A-face or B-face end shield inside the servo motor. The braking action generated by the compression springs is neutralized by applying the electromagnetic principle involving generation of a magnetic field. The brakes engage in unpowered condition and release when DC voltage is applied.

  • The brakes are equipped with a flange and firmly fastened with screws
  • Thanks to a specially developed and patented manufacturing method, the rated air gap tolerance can be reduced to a few hundredths of a millimetre, providing enhanced power
  • Toothed hub/friction disc connection with minimal circumferential backlash.
  • Standard version suitable for flange mounting and surface mounting.


Safety & reliability for your application

Our wealth of experience in brake design and state-of-the art manufacturing technologies enables us to ensure an optimum brake service life for given temperature and torque specifications.



Features at a glance

  • Electrically released
  • Surface mounting or flange mounting
  • Built into motor housing, optional mounting outside the end shield
  • Temperature range from -15°C to +120°C
  • Toothed hub / friction disc connection with minimal circumferential backlash

Technical Details

Description Value
Minimum holding torques 0.27 Nm - 70 Nm
Voltage DC 24 V (+/- 10%) und 20°C
Protection Class IP 00
Brochures and Flyers
Brochure | Servo Line | Spring-applied brake
pdf - 2 MB
Operating instructions
Operating instructions | Servo Line | BA KS 100..A00
pdf - 2 MB
CAD Files
3D-Models | Servo Line
zip - 868 KB
VideoKendrion Servo Line
Video - Spring-applied brake "Servo Line" for servo motors
The feature set of this fail-safe brake is suitable for the integration into Servo Motors. In this short video, the characteristics of the SERVO LINE spring-applied brake will be highlighted and how the brake can be integrated. Segments will be shown that can apply this product.
