Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Thread
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Diameter counter bore (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

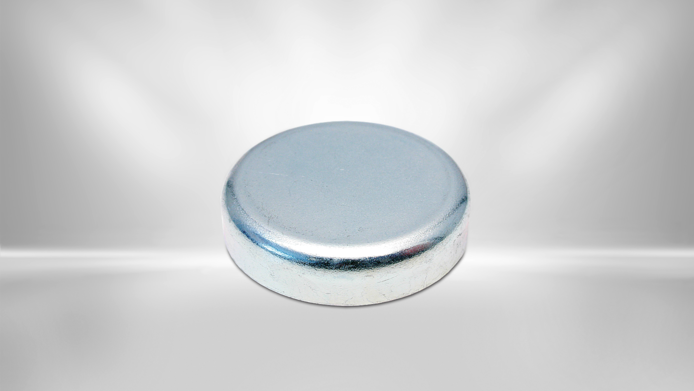

Permanent flat gripper HF
|
550 4036 25 | with threaded bush | hard ferrite | 32 | 25 | 7 | 20 | 220 | stainless steel | 16 | 8 | M5 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4036 32 | with threaded bush | hard ferrite | 64 | 32 | 7 | 31 | 220 | stainless steel | 16 | 8 | M5 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4036 40 | with threaded bush | hard ferrite | 100 | 40 | 8 | 56 | 220 | stainless steel | 16.5 | 8 | M5 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4036 50 | with threaded bush | hard ferrite | 175 | 58 | 10 | 105 | 220 | stainless steel | 18.5 | 8 | M5 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4036 63 | with threaded bush | hard ferrite | 280 | 63 | 14 | 228 | 220 | stainless steel | 22 | 8 | M5 | - | - | to the product |
|

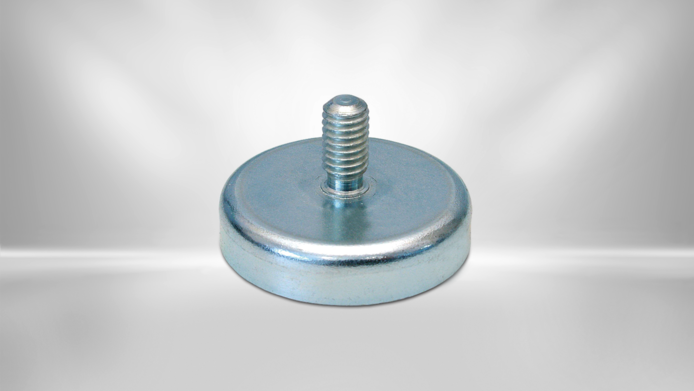

Permanent flat gripper HF
|
550 4037 1007 | with threaded pin | hard ferrite | 4 | 10 | 4.5 | 2 | 200 | galvanized | 7 | - | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 1308 | with threaded pin | hard ferrite | 10 | 13 | 4.5 | 3 | 200 | galvanized | 7 | - | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 1607 | with threaded pin | hard ferrite | 18 | 16 | 4.5 | 5 | 200 | galvanized | 7 | - | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 1606 | with threaded pin | hard ferrite | 18 | 16 | 4.5 | 5 | 200 | galvanized | 6 | - | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 2007 | with threaded pin | hard ferrite | 30 | 20 | 6 | 10 | 200 | galvanized | 7 | - | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 2030 | with threaded pin | hard ferrite | 30 | 20 | 6 | 15 | 200 | galvanized | 30 | - | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 2508 | with threaded pin | hard ferrite | 40 | 25 | 7 | 19 | 200 | galvanized | 8 | - | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 2515 | with threaded pin | hard ferrite | 40 | 25 | 7 | 20 | 200 | galvanized | 15 | - | M5 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 2520 | with threaded pin | hard ferrite | 40 | 25 | 7 | 22 | 200 | galvanized | 20 | - | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 3208 | with threaded pin | hard ferrite | 80 | 32 | 7 | 30 | 200 | galvanized | 8 | - | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 3212 | with threaded pin | hard ferrite | 80 | 32 | 7 | 31 | 200 | galvanized | 12 | - | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 3210 | with threaded pin | hard ferrite | 80 | 32 | 7 | 32 | 200 | galvanized | 10 | - | M8 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 4708 | with threaded pin | hard ferrite | 180 | 47 | 9 | 85 | 200 | galvanized | 8 | - | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 5708 | with threaded pin | hard ferrite | 280 | 57 | 10.5 | 146 | 200 | galvanized | 8 | - | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4037 6315 | with threaded pin | hard ferrite | 350 | 63 | 14 | 233 | 200 | galvanized | 15 | - | M6 | - | - | to the product |
|
Permanent flat gripper HF
|
550 4038 010 | without thread | hard ferrite | 4 | 10 | 4.5 | 2 | 200 | galvanized | - | - | - | - | - | to the product |
