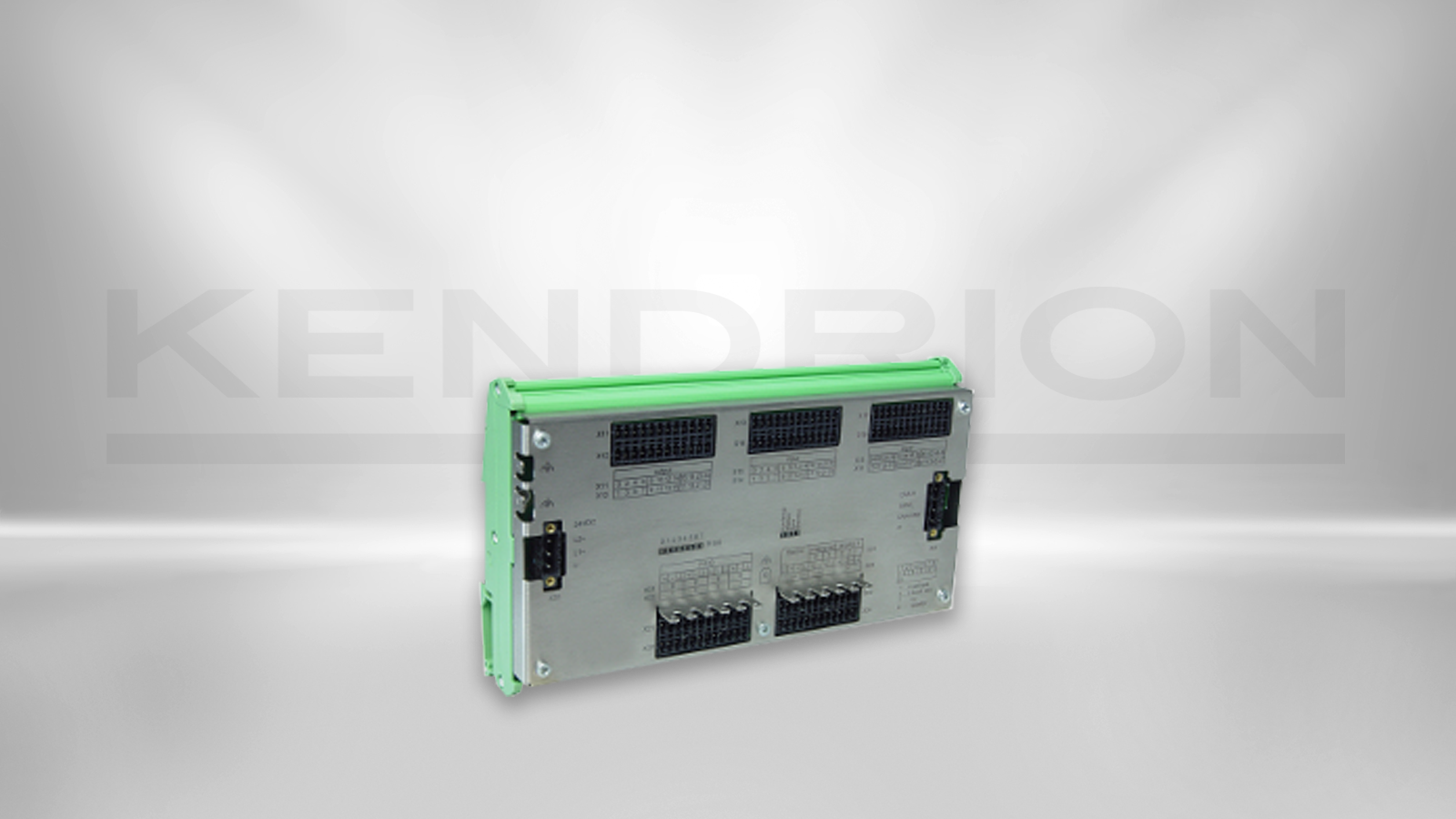

CIO CANopen
48DI/24DO/2AI-U/2AO-U/8Pt100/1Thermo
611 210 00
The Kuhnke CIO compact I / O connects various input and output signals in a compact housing for the DIN rail. The process data are made available via the CANopen interface according to the device profile CiA 401 of the higher-level control system. The robust design makes it suitable for use in machine and apparatus construction.
- Switch cabinet module
- integrated I/Os: 2AI-U, 2AO-U, 8Pt, 1Thermo
- CANopen Fieldbus interface
Technical details
| Description | Value |
|---|---|
| Configuration | 48DI/24DO/2AI-U/2AO-U/8Pt100/1Thermo |
| Function | I/O system with CANopen field bus |

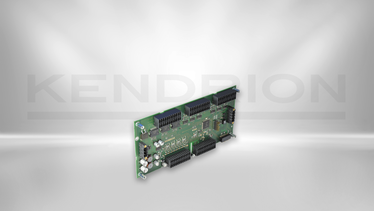

| Model | open circuit board for the control cabinet |
| Product status | Standard product |
| Field bus interfaces | CANopen‑Node |
| Interfaces | CANopen‑Node |
| Digital I/Os (integrated) | 48 DI 5 ms, 24 DO 0,5A |
| Analogue I/Os (integrated) | 2AI-U, 2AO-U, 8Pt, 1Thermo |
| Type of connection | multi-pin plug connector |
| Status indication | system messages |
| Housing material | plastic tray with stainless steel cover |
| Dimensions (W x H x D) | 212 mm x 104 mm x 40 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V (-20% / +25%) |
| Operating temperature | 0 ... +55 °C |
