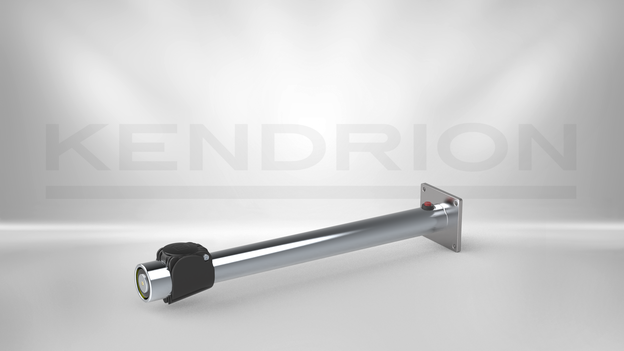

Door holding magnets GTR050
GTR050.276006
The door holding magnets are mainly used as holding devices on fire protection doors. They hold them in place when open. Controlled by a fire alarm or smoke protection control panel, they release the closures by interrupting the power supply in the event of a fire hazard. Product features: - Coil vacuum encapsulated (IP65) - VdS quality-controlled - Tested according to EN1155 & EN 14637 - Optimised design and quality - Accessories: Anchor plate
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 1.5 W |
| Holding force | 490 N |
| Design | Plastic swivel head 450/475 mm |
| Connection | terminal clamp |
