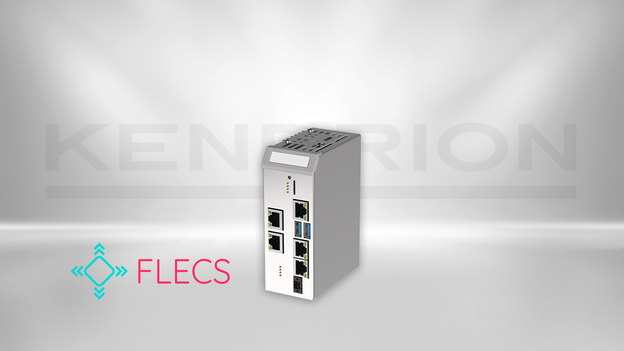

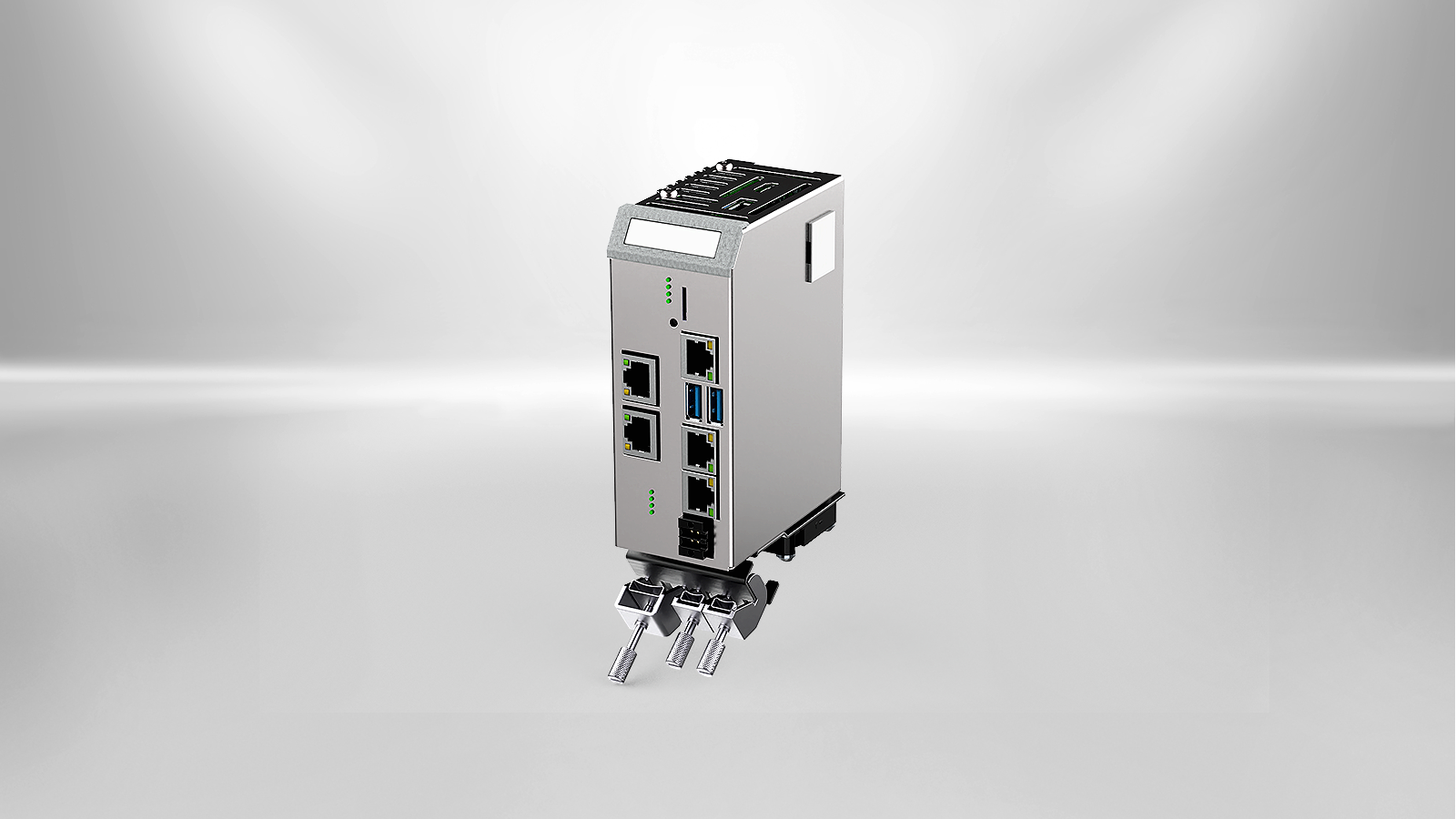

Econo 328 APP
640 001 28 100
The Econo 328 APP is a compact, industrial-grade IoT controller for IT, OT, and edge applications in control cabinets. Equipped with a Raspberry Pi Compute Module 4 and a powerful quad-core ARM processor, it offers three Gigabit Ethernet ports—two of which serve as an internal switch for clean separation of machine and company networks—as well as two USB and one HDMI interface.
Its robust design, wide temperature range, and integrated mini UPS ensure reliability in industrial use.
Thanks to the Linux real-time operating system and FLECS integration, automation apps can be flexibly installed and managed as Docker containers, making the Econo 328 versatile for use as a gateway, controller, or micro edge computer.
- Robust hardware for industrial environments with powerful Quad Core ARM-A72
- Use of extensions from the FLECS Marketplace and open source-based software
- Separate 1000 Mbit Ethernet interfaces
- Real-time capability for industrial and robotics applications
- 0°C...+55 °C without power reduction, with fan up to +60 °C
- integrated 1 s mini UPS
Technical details
| Description | Value |
|---|---|
| Configuration | IOT Controller |
| Function | Embedded PC |
| Model | Control cabinet modul |
| Product status | Standard product |
| Processor | Quad -core ARM Cortex A72 (1,5 GHz), Raspberry Pi 4 |
| Graphics Interfaces | HDMI interface, 3840 × 2160p @ 60 Hz (4K) |
| Operating system | Linux RT |
| Software | The device has a licence to install automation apps from the FLECS Marketplace Ready for extension with automation apps from the Flecs Marketplace |
| Main memory / working memory | 2GB DDR4L |
| Non-volatile memory | 128 kB |
| Mass storage / removable storage | µSD(HC)-Card Slot up to 32 GByte |
| Internal memory / Drive | eMMC Speicher 8 GByte |
| Interfaces | 2 x Ethernet (SW) 1 Gbit, 1 x Ethernet 1 Gbit, 2 x Ethernet (SW) 100 Mbit |
| Digital I/Os (integrated) | 2x USB3.0, 1x USB2.0 |
| Field bus interfaces | - |
| Housing material | Stainless steel, heat sink made of aluminum |
| Mounting | DIN-rail mounting |
| Betriebstemperatur | 0°C...+55 °C without power reduction, with fan up to +60 °C |
| Dimensions (W x H x D) | 51 x 125 x 90 mm, with fan approx. 51 x 145 x 100 mm |
| IP-Protection Class | IP20 |
| Supply voltage | 9,0 …28,8 V DC, Powerfail functions, 1 s mini UPS |
| Cyber Security, Compliance (CRA) | In progress |
| Certifications / Standards | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 |
