Inductor round 80 mm
Inductor for heating rollers

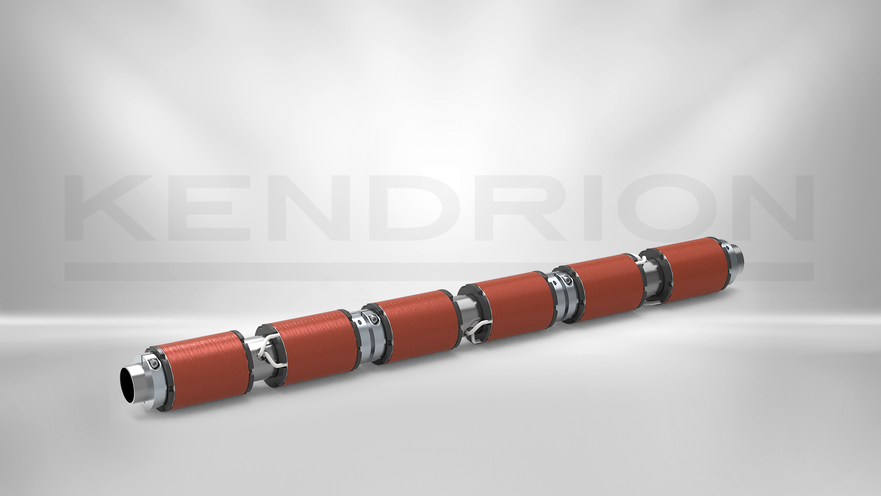

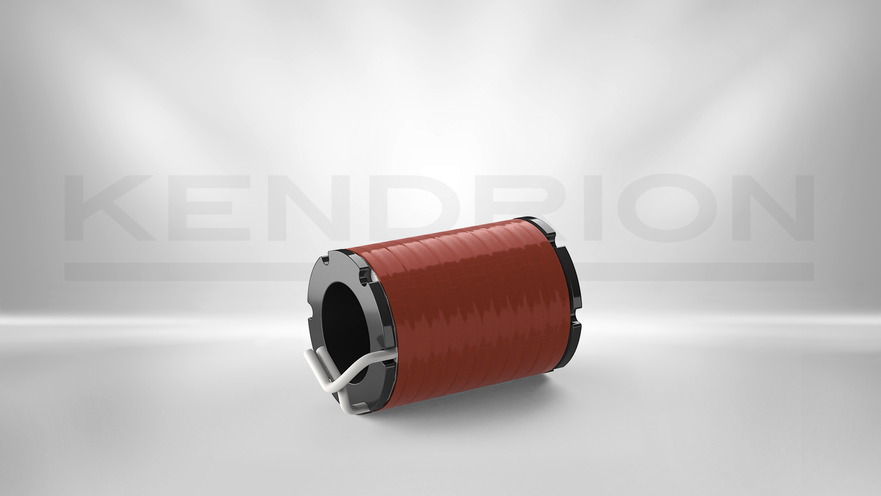

The round heating inductor heats rollers with an internal diameter of 80 mm. Up to 6 inductors can be supplied ready mounted on a tube or individual coils. Thanks to the modular approach, different roller widths can be realised. It also allows individual roller areas to be heated individually, enabling particularly homogeneous surface temperatures. Due to the high efficiency of the induction systems of approx. 98%, the electrical energy is very efficiently converted into heat.
The almost unrivalled power density of up to 105 kWW/m² enables rapid heating and precise temperature control up to approx. 250°C.
- High efficiency of approx. 98%
- Direct heating of the roller
- Modular design 1 - 6 inductors per roller
- Cost-optimized
- Power Control 1 – 100%
- Constant temperature profile
- Maintenance-free
Technical details
| Description | Value |
|---|---|
| Inner diameter roller | 80 mm |
| Heated Section | approx. 75 mm circumferential |
| Rated power | 2,0 kW per single coil |
| Temperature range | 0 ... 240°C |
| Power density | 105 kW/m² |
| Heating circuits | 1-6 |
| Inductor current | 5 A |
| Inductor voltage | < 1000 Vrms |
| Efficency | approx. 98 % |
| Duty cycle | 100 % duty cycle |
| Electrical control | For connection to Kendrion induction generators |
| Electrical connection | stranded wires |

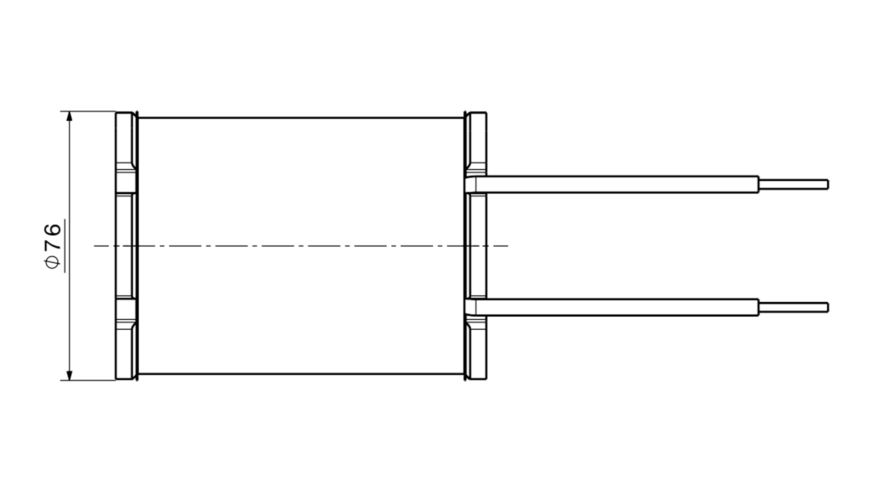

| Dimensions (W x H x D) | Details sind der Zeichnung zu entnehmen |
| Product status | In preparation |
| Standards / certification | Low Voltage Directive |
