Door holding magnets
Electromagnetic door holders
Kendrion offers a wide range of different door holding solenoids in tested quality. Doors are held open with low power consumption and high holding forces and closed by interrupting the power supply. Kendrion door holding solenoids are mainly used as holding devices on fire doors, gates or flaps. As a market-leading manufacturer, Kendrion offers a program for use in fire protection areas that complies with the guidelines. The electromagnetic door holding systems are also used on conventional doors in business and entrance areas and in special versions in maritime areas.
Products
(70)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Holding force (N)
ascending
descending
|
Design
ascending
descending
|
Connection
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|
|

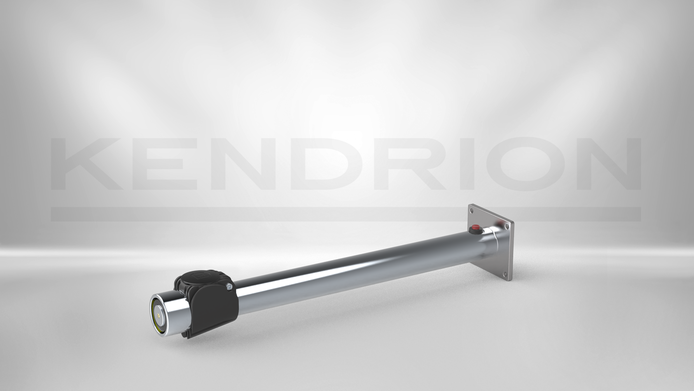

Door holding magnets GTR050
|
GTR050.276006 | 24 | 100 | 1.5 | 490 | Plastic swivel head 450/475 mm | terminal clamp | to the product |
|

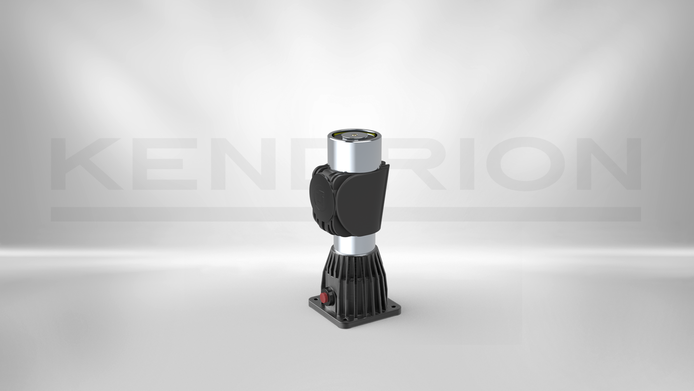

Door holding magnets GTR050
|
GTR050.301506 | 24 | 100 | 1.5 | 490 | Plastic swivel head 150/175 mm | terminal clamp | to the product |
|

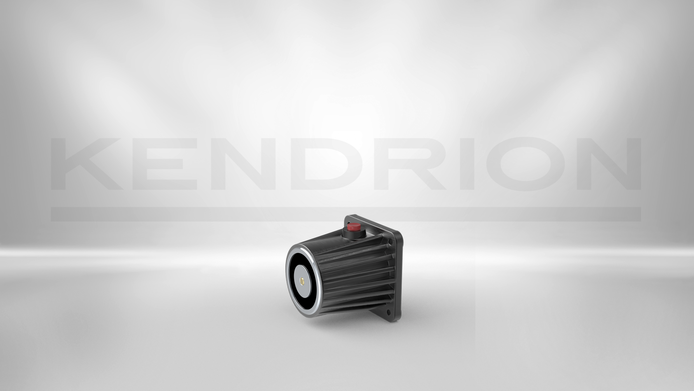

Door holding magnets GTR050
|
GTR050.325008 | 24 | 100 | 1.5 | 490 | On wall (in plastic socket, total hight 65mm) | terminal clamp | to the product |
|

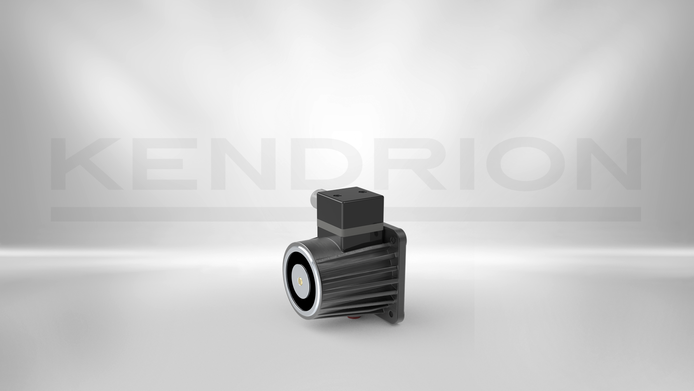

Door holding magnets GTR050
|
GTR050.326504 | 24 | 100 | 1.5 | 490 | On wall (in plastic socket, total hight 65mm) | with connector | to the product |
|

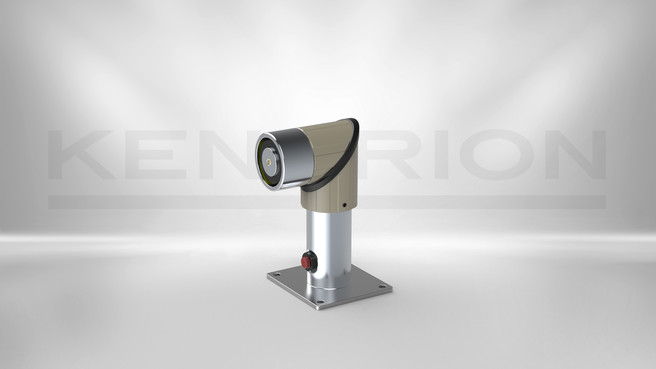

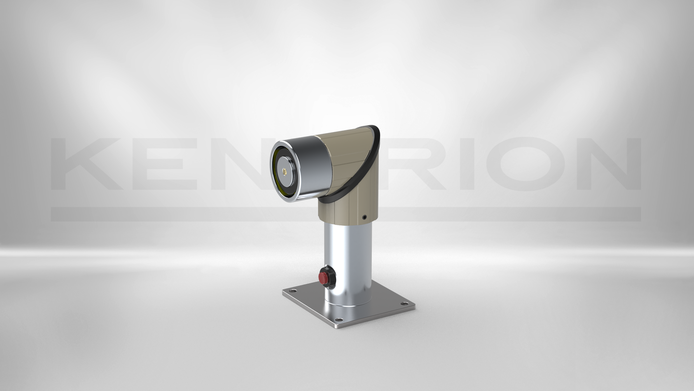

Door holding magnets GTR050
|
GTR050.370014 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 150 mm floor mounting | terminal clamp | to the product |
|

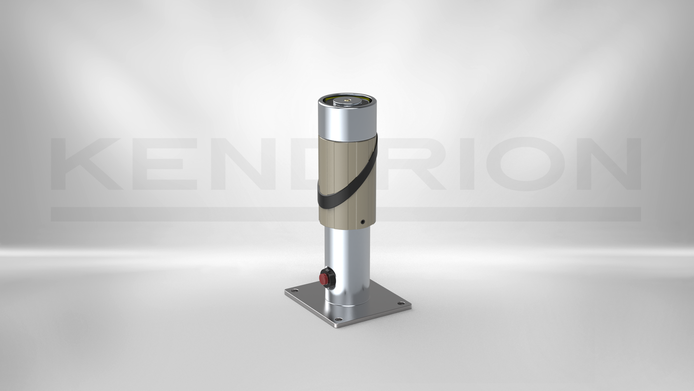

Door holding magnets GTR050
|
GTR050.370013 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 185 mm wall mounting | terminal clamp | to the product |
|

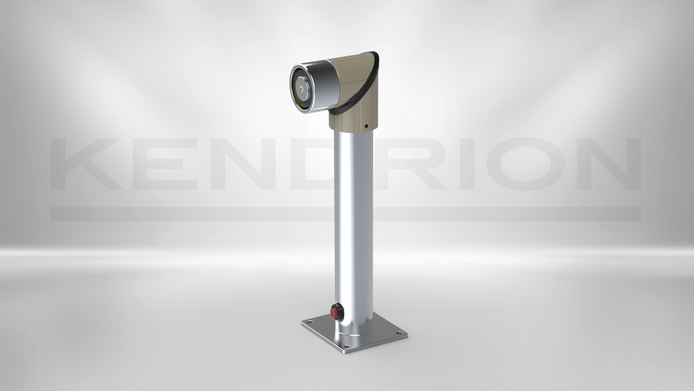

Door holding magnets GTR050
|
GTR050.370022 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 300 mm floor mounting | terminal clamp | to the product |
|

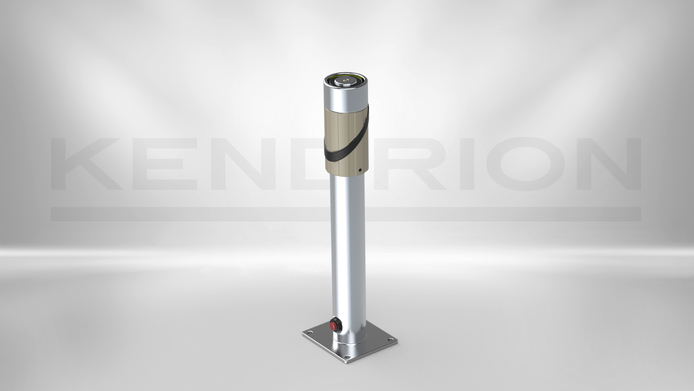

Door holding magnets GTR050
|
GTR050.370023 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 335 mm wall mounting | terminal clamp | to the product |
|

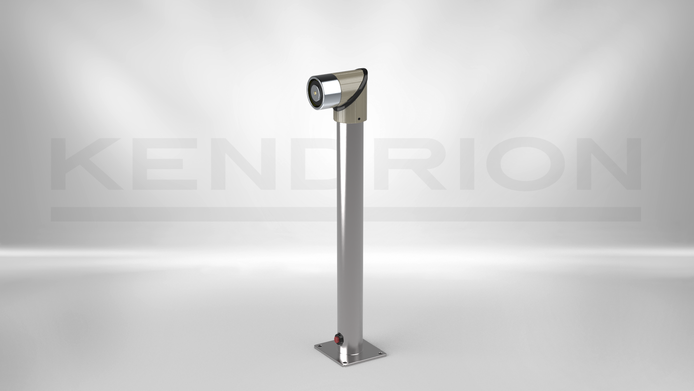

Door holding magnets GTR050
|
GTR050.370032 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 450 mm floor mounting | terminal clamp | to the product |
|

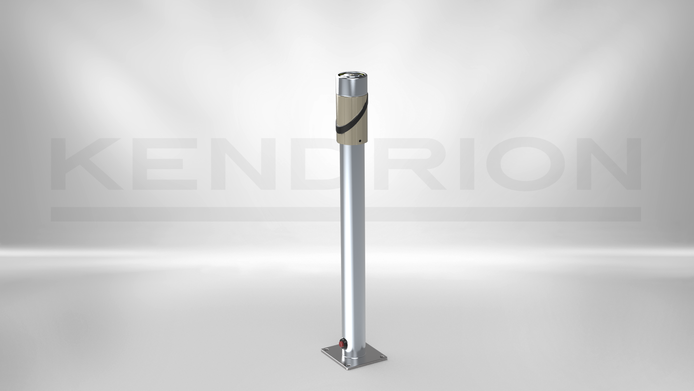

Door holding magnets GTR050
|
GTR050.370024 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 485 mm wall mounting | terminal clamp | to the product |
|

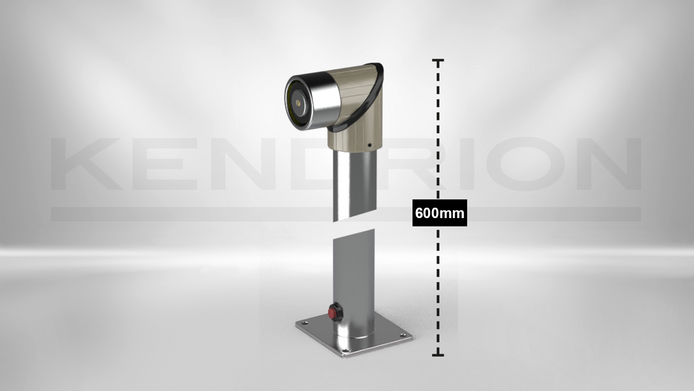

Door holding magnets GTR050
|
GTR050.370028 | 24 | 100 | 1.5 | 490 | Aluminium swivel head 600 mm floor mounting | terminal clamp | to the product |
|

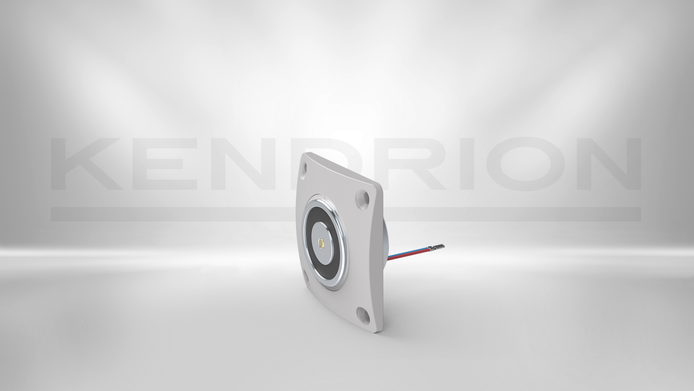

Door holding magnets GTR050
|
GTR050.375005 | 24 | 100 | 1.5 | 490 | in wall mounting | Free leads | to the product |
|

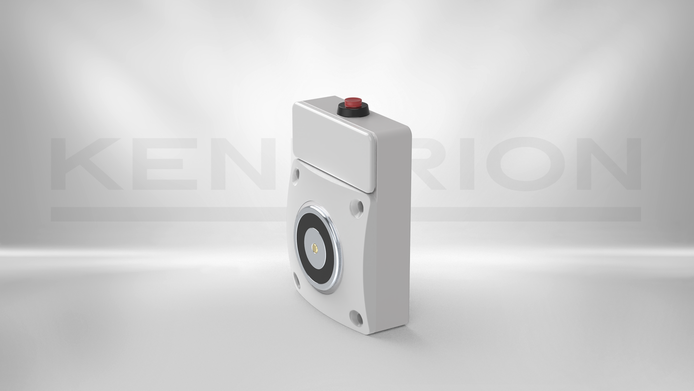

Door holding magnets GTR050
|
GTR050.400004 | 24 | 100 | 1.5 | 490 | Wall mounting | terminal clamp | to the product |
|

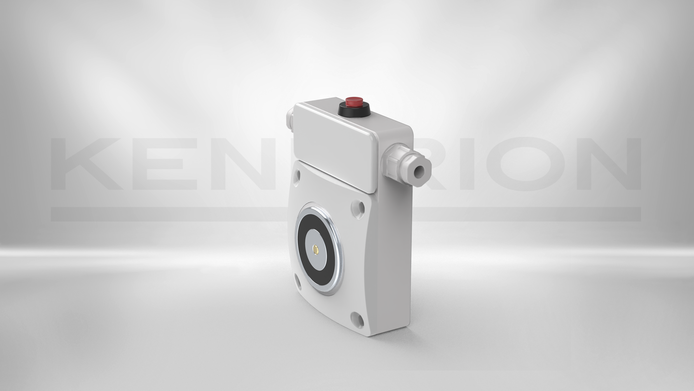

Door holding magnets GTR050
|
GTR050.425006 | 24 | 100 | 1.5 | 490 | Wall mounting | terminal clamp | to the product |
|

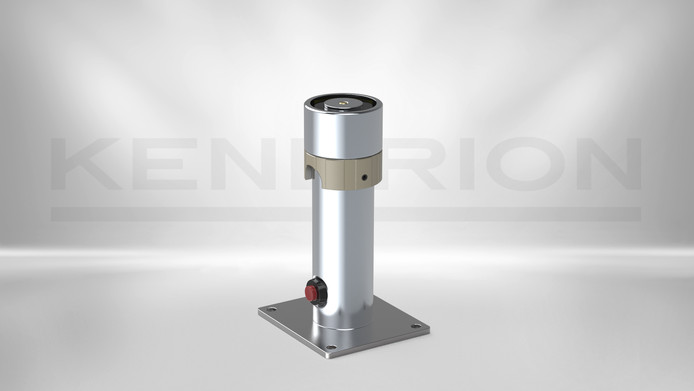

Door holding magnets GTR050
|
GTR050.700002 | 24 | 100 | 1.5 | 490 | Wall mounting 150mm | terminal clamp | to the product |
|

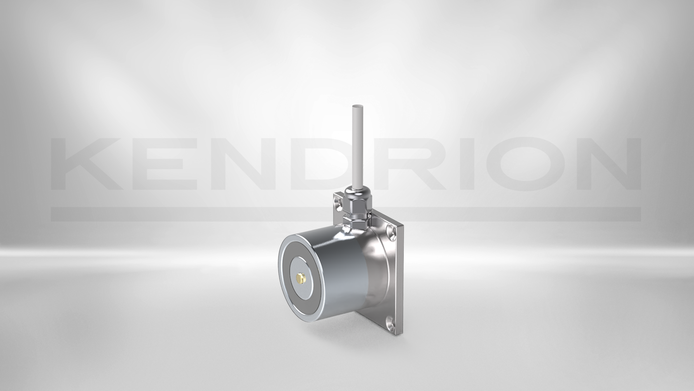

Door holding magnets GTR050
|
GTR050.707001 | 24 | 100 | 1.5 | 490 | with base plate, micro switch | Free leads | to the product |
|

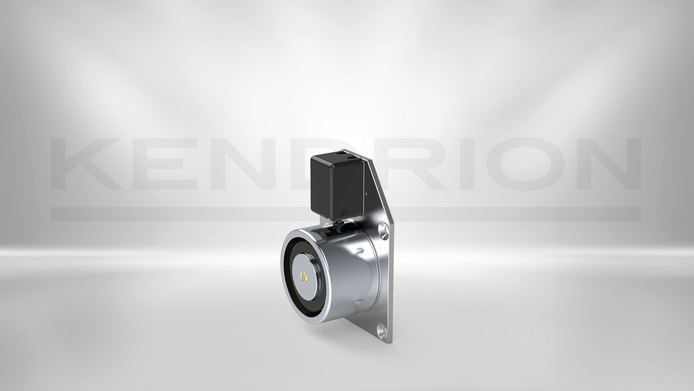

Door holding magnets GTR050
|
GTR050.750003 | 24 | 100 | 1.5 | 490 | with steel base plate | terminal clamp | to the product |
|

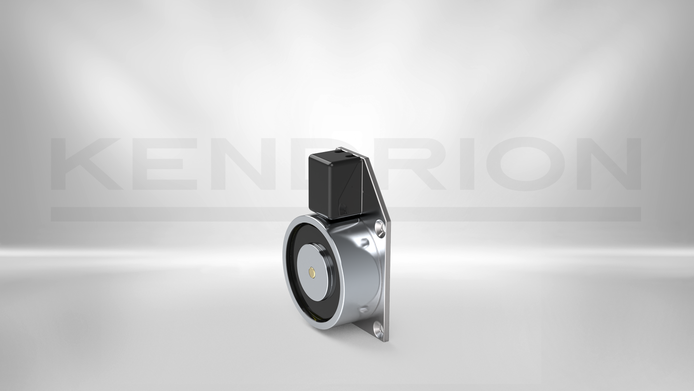

Door holding magnets GTR060
|
GTR060.528003 | 24 | 100 | 1.6 | 686 | with steel base plate | terminal clamp | to the product |
|
Door holding magnets GTR060
|
GTR060.528752 | 24 | 100 | 2.1 | 800 | with steel base plate | terminal clamp | to the product |
|

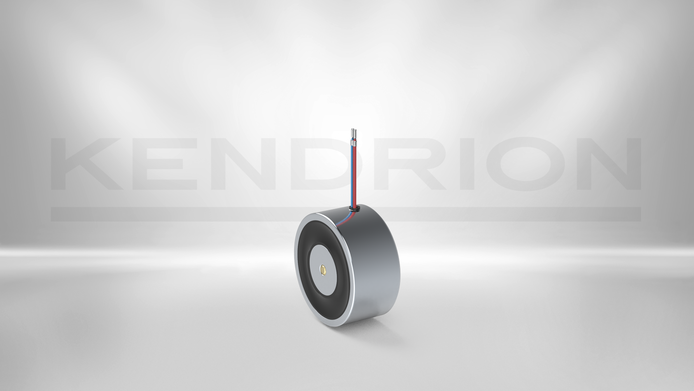

Door holding magnets GTR063
|
GTR063.000001 | 24 | 100 | 1.5 | 700 | without base plate | Free leads | to the product |
|
Door holding magnets GTR063
|
GTR063.000111 | 24 | 100 | 1.5 | 700 | without base plate | terminal clamp | to the product |
