FLACH HS10003/2
Inductor for inductive heating of surfaces
The Flat inductor HS10003/2 is designed for heating flat workpieces. A modular design with several inductors makes it possible to heat an individual surface and adapt the heat input of each individual inductor to the requirements. This allows a particularly homogeneous surface temperature to be achieved. Due to the high efficiency of the induction systems of approx. 98% of the electrical energy is converted into heat very efficiently.
The almost unrivalled power density of up to 150 kW/m² enables fast heating and precise temperature control up to approx. 200°C.
- High efficiency of approx. 98
- Direct heating of the metallic surface
- Cost-optimized
- Power control 1 - 100%
- Constant temperature profile
- Maintenance-free
Technical details
| Description | Value |
|---|---|

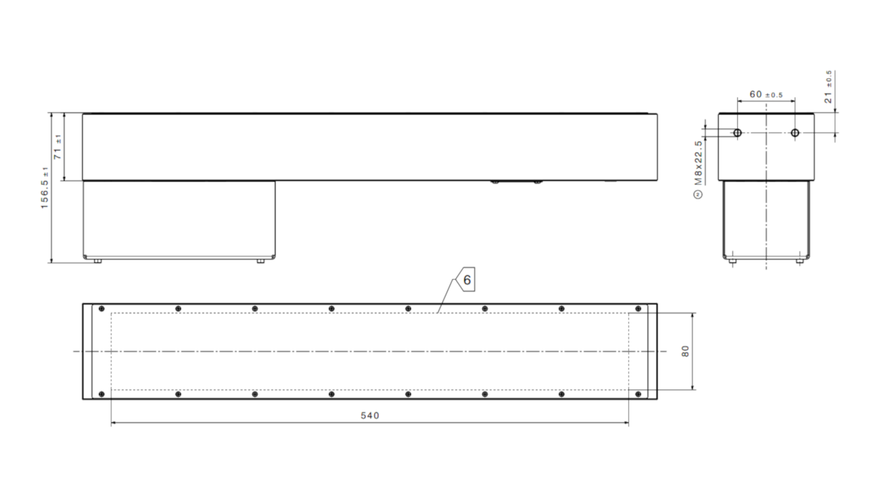

| Dimensions (W x H x D) | 600 mm x 100 mm x 156,5 mm |
| Heated Section | approx. 432 cm² |
| Rated power | 6,5 kW |
| Temperature range | 0 ... 200°C |
| Area output | up to 150 kW/m² |
| Inductor current | 26,8 A |
| Inductor voltage | < 1000 Veff |
| Efficency | approx. 98 % |
| Duty cycle | 100 % duty cycle |
| Electrical connection | Screw connection M5 (max. tightening torque 3.5 Nm) |
| Electrical control | For connection to Kendrion induction generators |
| Product status | Special edition |
| Certifications | Low Voltage Directive |
