Short strokes and high forces

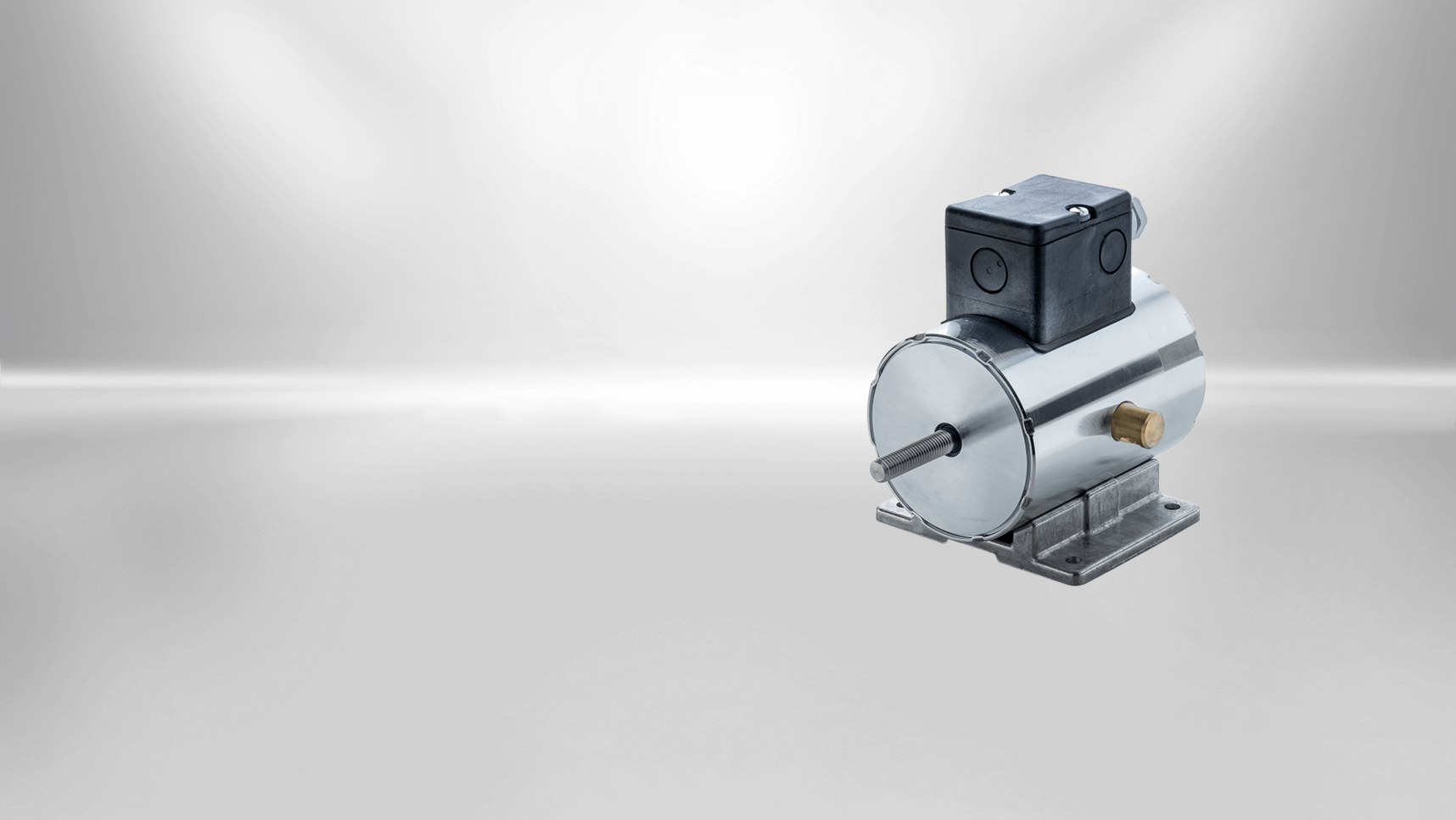

Elevator Brake Solenoids (Spreader Solenoids) by Kendrion are linear solenoids with short stroke and high magnetic force. The brake magnets are used as actuating solenoids in drives of elevators or escalators for releasing the brakes.

Depending on the requirements, a single spreader solenoid or a double spreader solenoid (dual-brake system) is used. While the single-acting spreader solenoids are pushing solenoid actuators in one direction, the double-acting spreader solenoid consists of two solenoid systems in a housing, which presses in two opposing directions.

Both types have increasing magnetic force characteristics. Depending on the coil design, there are different duty cycles available.

Over-excitation

When operated with over-excitation (40% duty cycle), the elevator brake solenoids are overexcited by high power during the actuating phase, so that a high initial force is achieved to overcome the spring.

An overexcitation rectifier reduces the holding voltage as soon as the magnet is in the end position. In this case, the Standard duty cycle is 80%. This approach is very energy-saving and enables the provision of a high attraction force with the smallest possible space.

Double-acting spreader solenoids

Due to the increased safety requirements of the manufacturers, the double-acting elevator brake solenoid (double-acting spreader solenoid) is mainly used in modern systems.

In the case of brake solenoids for elevators and escalators, it is often necessary that the switching noises are reduced. Kendrion offers the possibility to equip the brake solenoids with a stop damper. The double-acting spreader solenoids also have a manual release.



Benefits at a glance

  • Short strokes and high magnetic force
  • Insensitivity to moisture and dust
  • Mounting in any position

Technical Data of the Standard Double Spreader Solenoid

Supply Voltage 205 V DC, Duty Cycle 40%, Protection class device and connector: IP 54

Type Diameter x Length Stroke Force (START) Force (END) Input power
LED088000 (40% DC) 88 x 120mm 2mm 450N 700N 68W
LED098000 (40% ED) 98x136mm 2,5mm 590N 1,100N 84W
LED115000 (40% ED) 115x140mm 3mm 750N 1,050N 90W
LED135000 (40% ED) 135x165mm 3mm 1,260N 1,800N 131W
LED140000 (40% ED) 135x225mm 4mm 1,500N 3,000N 182W
LED165000 (40% ED) 165x250mm 4mm 2,800N 3,750N 201W
