Control possible in both directions

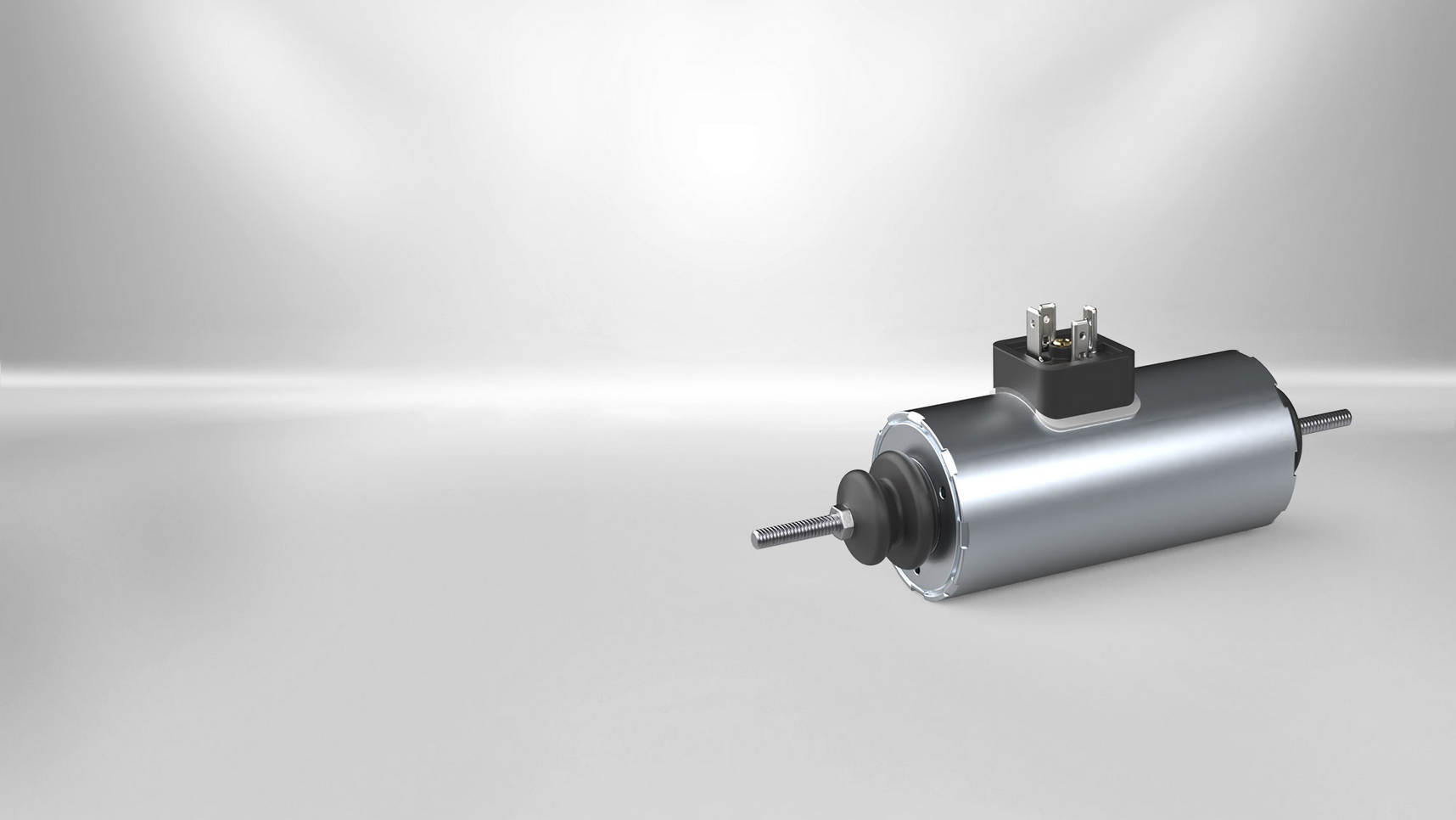

Kendrion’s Reversible Linear Solenoids have several advantages. The particular function of the reversible solenoids is the possibility to control the switching time from the stroke start to the stroke end position of the armature. Thanks to the high-precision bearings coated with Teflon, the linear solenoids even works maintenance-free. This ensures a long lifetime at a high switching frequency of the solenoid. Due to the two coils inside the housing, the mechanical armature reset by an external force is not necessary. Despite the two magnetic systems built into the device, they offer compact dimensions with large forces and long stroke movements of up to 40mm. It is also possible to add a female connector with an integrated bridge rectifier enabling the solenoid to work with alternating current.

With the long life and unique ability to control response and release times, Reversible Solenoids are an excellent choice for various industries. Currently, some typical applications for the soelnoids are in the packaging industry, automation technology, and machine-building.



Benefits at a glance

  • Control of both travel directions
  • Large forces and stroke travels
  • Short switching times and smooth operation
  • Maintenance-free use
  • Long lifetime

Technical Data

Parameter Value
Supply Voltage 24 V DC / 230 V AC
Duty cycle 5 / 25 / 40 / 100 %
Stroke 7 - 40 mm
Force 6 - 880 N
Pull-in time 85 - 420 ms
Thermal class B
Protection class device IP54
Installation type Front side by threaded holes
Protection class connection IP65
Accessories Female Connector with/without rectifier
Fork head with/without ES-bolt
Mounting flange
